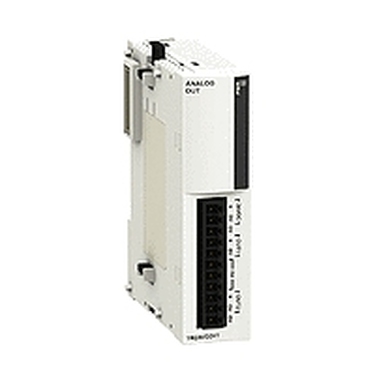

Analog Output Module M238 - 2 Voltage Outputs - 1 Removable Screw Terminal Block
Available - call for stock

2 year warranty


Part NumberTM2AVO2HT
ManufacturerSchneider Electric
SeriesModicon Magelis
TypeIO Modules
Warranty2 year
Product weight0.19 kg
Range of productModicon M238 logic controller
Product or component typeAnalog output module
Analogue output number2
Analogue output typeVoltage +/- 10 V
Range compatibilityAdvantys OTB
Analogue output resolution11 bits + sign
LSB value+/- 9.8 mV voltage
Load typeResistive
Load impedance ohmic<= 3000 Ohm voltage
Stabilisation time2 ms
Conversion time2 ms + 1 controller cycle time
Measurement error+/- 0.5 % of full scale 25 °C
Temperature coefficient+/-0.01 %FS/°C
Repeat accuracy+/-0.1 %FS
Non-linearity+/- 0.2 %FS
Output ripple<= 1 LSB
Total error+/-1 %FS
Type of cableTwisted shielded cable
Insulation between channel andPhotocoupler
SupplyExternal supply
[Us] rated supply voltage24 V DC
Supply voltage limits19.2...30 V
Electrical connection1 removable screw terminal block
Current consumption60 mA 24 V DC external
