Schneider Electric 140CPS11420C

MODICON QUANTUM POWER SUPPLY 115 V/230 V AC - SUMMABLE OR STANDALONE

5/5
1 rating

Available


Free Shipping

2 Year warranty

Part Number140CPS11420C
ManufacturerSchneider Electric
TypePower Supplies
Model #140-CPS-114-20C
Warranty2 Year
Module formatStandard
Power supply typeSummable or standalone
Input voltage230 V AC 170...276 V
115 V AC 93...132 V 47...63 Hz
Input current750 mA 230 V
1300 mA 115 V
Inrush current38 A 115 V
19 A 230 V
Rated power in VA130 VA
Associated fuse rating2 A slow-blow
Harmonic distortion<= 10 % of fundamental rms value
Output voltage5.1 V DC
Power supply output current20 A 60 °C summable
11 A 60 °C standalone
Output overvoltage protectionInternal
Output overload protectionInternal
Power dissipation6 + (1.5 x Iout) where Iout is in A
Alarm output1 NC 6 A 220 V power supply fault
Local signalling1 LED green power (PWR OK)
MarkingCE

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 140CPS11420C to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 140CPS11420C we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 140CPS11420C, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 2lbs

Want it shipped today?

  • Order within the next 13 hours and 28 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 140CPS11420C for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric 140CPS11420C Overview

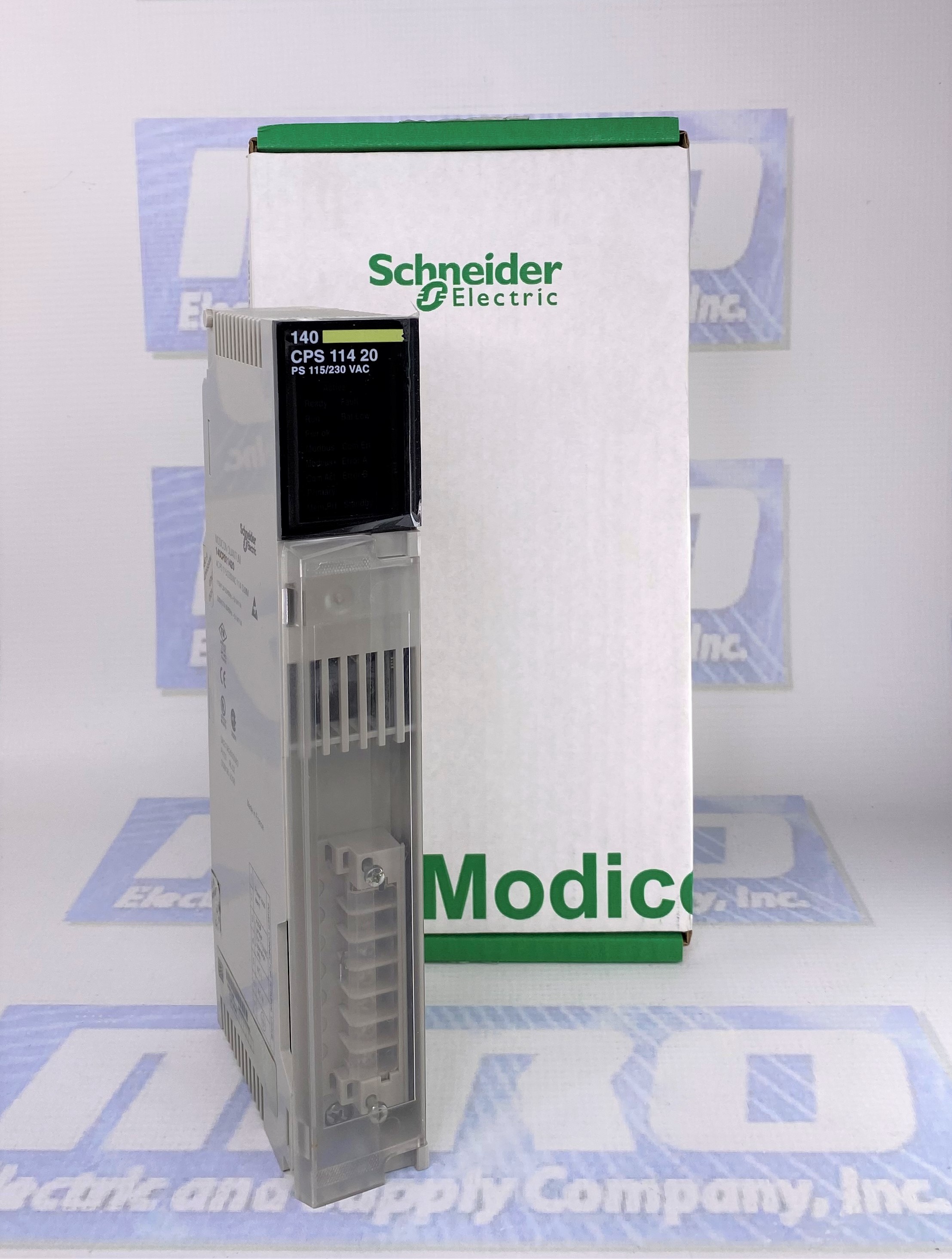

Schneider Electric 140CPS11420C – MODICON Quantum Power Supply Module

The Schneider Electric 140CPS11420C is a high-performance MODICON Quantum power supply module, engineered to meet the rigorous demands of modern industrial automation systems. This robust and efficient unit delivers stable and reliable power to Quantum I/O systems, ensuring maximum uptime and system integrity for mission-critical applications.

Designed as a summable or standalone module, the 140CPS11420C is flexible enough to adapt to various system configurations. It supports standard module format installation and comes with a 7-point terminal connector for easy integration and quick wiring within existing MODICON Quantum racks.

Input Specifications

The module accepts a wide input voltage range of 93 to 132 V AC at 115 V, and 170 to 276 V AC at 230 V, operating across a frequency range of 47 to 63 Hz. This broad compatibility allows it to function effectively in diverse electrical environments. It draws 1.3 A at 115 V and 0.75 A at 230 V, with inrush currents of 38 A and 19 A, respectively—highlighting its durability and start-up protection in fluctuating power conditions.

Output Performance

On the output side, the 140CPS11420C delivers a consistent 5.1 V DC, with current capabilities tailored to system needs. It provides up to 20 A at 60°C in summable configurations and 11 A at 60°C when used standalone. Whether powering a single rack or multiple interconnected systems, this module delivers reliable energy with high efficiency and low thermal dissipation. Its power dissipation formula is rated at 6 + (1.5 x Iout), ensuring optimized thermal performance relative to output demand.

Built-In Protections

This module includes both internal output overvoltage and overload protection, shielding your system from potential damage caused by unexpected spikes or power surges. It also incorporates an internal fuse with a 2A slow-blow rating, reinforcing its long-term reliability and safety. Harmonic distortion is kept ≤ 10% of the fundamental RMS value, maintaining signal integrity and minimizing system noise.

Diagnostic and Safety Features

The 140CPS11420C features local signaling via a green LED indicator that displays power status (PWR OK), allowing operators to confirm system activity at a glance. Additionally, an alarm output (1 NC 6 A at 220 V) provides fault reporting in the event of a power supply failure, enhancing system transparency and response time in critical environments.

Certifications and Compliance

Fully CE marked, the 140CPS11420C adheres to international standards for safety and performance. It is trusted in industries ranging from manufacturing and energy to infrastructure and processing plants where consistent, high-quality power delivery is essential.

Availability and Service

This Schneider Electric module is available immediately from MRO Electric and Supply, backed by a 2-year warranty. Free shipping is included, and expert support is available to assist with installation or troubleshooting. Whether you're upgrading your current MODICON Quantum system or building a new setup, the 140CPS11420C offers the reliability, flexibility, and efficiency needed for long-term success in industrial power management.

This SEO-optimized description highlights specifications and benefits while aligning with search intent for industrial buyers seeking dependable MODICON Quantum power supply modules.

10 FAQs for the Schneider Electric 140CPS11420C MODICON Quantum Power Supply Module

What is the Schneider Electric 140CPS11420C used for?

It supplies power to MODICON Quantum automation systems, either as a standalone or a summable module.

What is the input voltage range for the 140CPS11420C?

It accepts 93–132 V AC at 115 V and 170–276 V AC at 230 V, operating at 47–63 Hz.

Can the 140CPS11420C be used in both standalone and summable configurations?

Yes, it is designed to function in either configuration, offering installation flexibility.

What is the output voltage and current capacity?

It outputs 5.1 V DC with up to 20 A in summable mode or 11 A in standalone mode at 60°C.

Does the module include protection features?

Yes, it features built-in internal overvoltage and overload protection, along with a 2 A slow-blow fuse.

What is the inrush current of the module?

It has an inrush current of 38 A at 115 V and 19 A at 230 V.

Is there a visual indicator on the module?

Yes, a green LED labeled "PWR OK" indicates the local power status.

Does it offer any fault signaling capabilities?

Yes, it provides a normally closed alarm contact rated at 6 A, 220 V for power supply faults.

What type of terminal connector does it use?

It features a 7-point terminal connector for streamlined wiring and integration.

Is the module CE certified?

Yes, the 140CPS11420C is marked with the CE marking, confirming compliance with EU safety standards.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry Power Supplies from other manufacturers such as Modicon and ABB.
