140CPS12420C

140CPS12420C

Rated 5/5 on 1 review

Rate this product

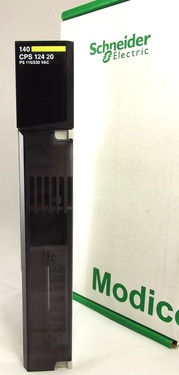

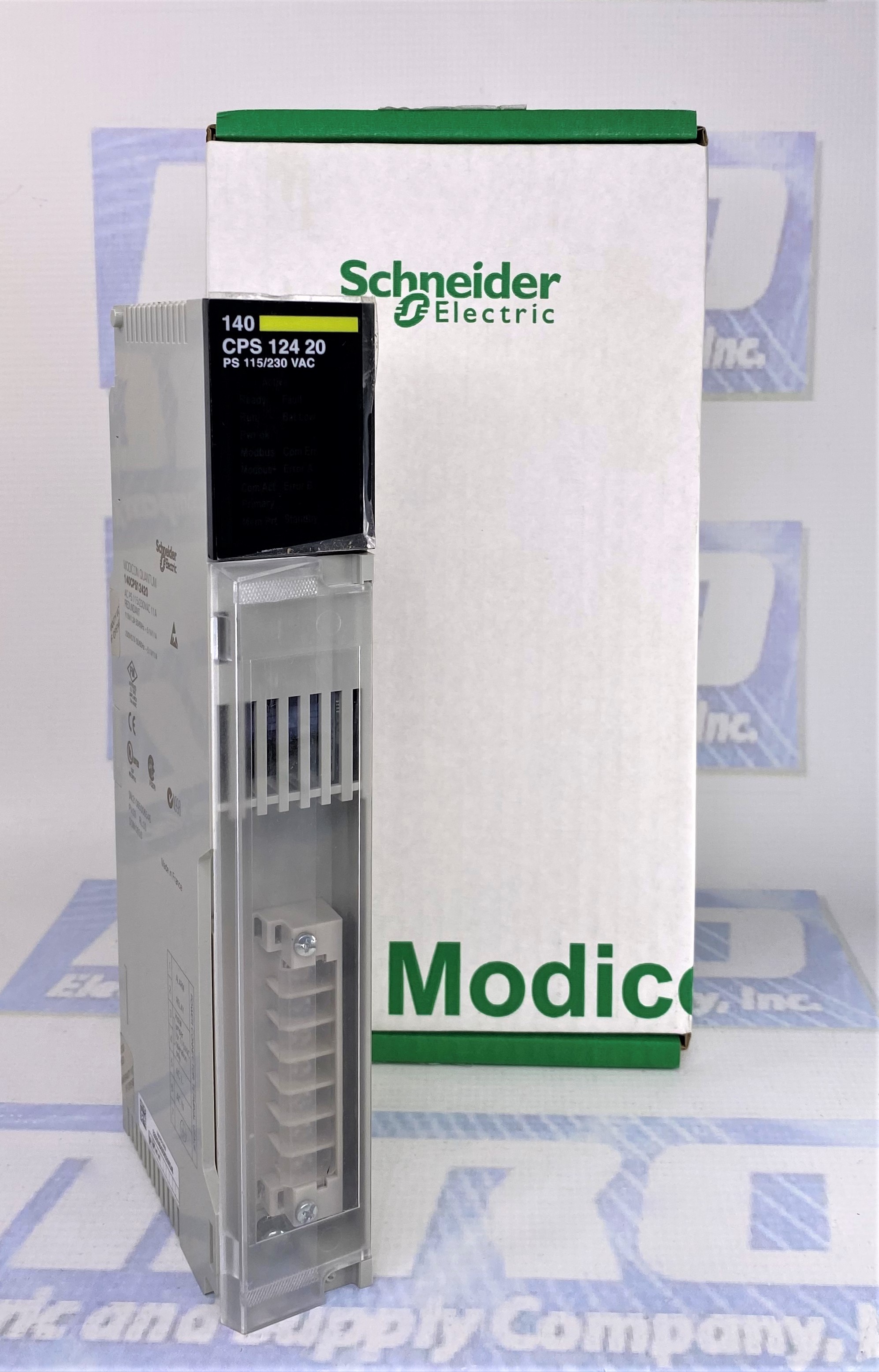

Power Supply Module Modicon Quantum - 115 V/230 V AC - Redundant

Available

Free Shipping
2 Year warranty

Categories

Part Number140CPS12420C
ManufacturerSchneider Electric
SeriesModicon Quantum
Model #140CPS12420C
TypePLC
Warranty2 Year
Module formatStandard
Power supply typeRedundant
Input voltage230 V AC 170...276 V
115 V AC 93...138 V 47...63 Hz
Input current600 mA 230 V
1100 mA 115 V
Inrush current38 A 115 V
19 A 230 V
Rated power in VA130 VA
Associated fuse rating2 A slow-blow
Harmonic distortion<= 10 % of fundamental rms value
Output voltage5.1 V DC
Power supply output current10 A 60 °C redundant
11 A 60 °C standalone
Output overvoltage protectionInternal
Output overload protectionInternal
Power dissipation6 + (1.5 x Iout) where Iout is in A
Alarm output1 NC 6 A 220 V power supply fault
Local signalling1 LED green power (PWR OK)
MarkingCE

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 140CPS12420C to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 140CPS12420C we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 140CPS12420C, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped tomorrow?

  • Order within the next 20 hours and 9 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 140CPS12420C for credit when ordering from MRO Electric

Additional Information

What makes 140CPS12420C Modicon Quantum CPS the top-performing power supply module in its class? This Schneider Electric product is unparalleled because of its ability to bring you to steady uncompromising reliability.   To create a smooth working automation line, you need this dependable unit for your automation needs.   How can this unit support your line?  First of all, the Quantum power supply has a unique purpose. It is there to administer power to the system rack, and it is also present for squelching noise that would violate the system.  In a place where it is possible for voltage to fluctuate and have surges, it also protects your system from possible overvoltage. As one may expect, the environmental conditions where this module functions can be ridden with all kinds of electrical noise interference and yet these units can operate without having to bother with external isolation transformers.  Without that quality, you would be forced to find another way to transfer electrical power from one source of alternating current power to some other piece of equipment.  No need with the Modicon 140CPS12420C.  Occasionally, your system may be presented with a power loss that is totally unexpected.

In the event that this happens to your automation line, the Modicon Quantum power supply module affords your system the time that will make sure your system shuts down properly.  It does this making sure that safety is the highest priority along with procedurally allowing things to shut down in order. What can a power supply module do for you?  It converts the input voltage to managed + 5 VDC for whatever requirements you have for your CPU, the I/O units and whatever communication modules you have installed on the rack.  When you only require low power on your system, you can and should use a standalone power supply module because of it the best choice for you economically. A standalone power supply module is there to provide a 3 A current to your Quantum rack. What supply voltages are you able to use with the standalone power module? They are available for 115/230 V~, 24 V and 125 V ⎓ supply voltages.  On the front panel of the Modicon unit, you will find a model number and also a color code. Next, you will find a display block.  There is a removable door that has a hinge where you can insert a label that is completely able to be customized.  There is a 7-way screw terminal block. The 140CPS12420C has conformal coating. This Modicon module comes with a two-year warranty.
