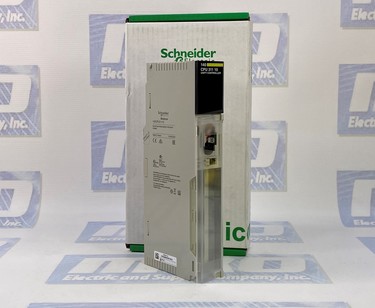

Schneider Electric 140CPU31110

140CPU31110 by Schneider Electric

Overview: Schneider Electric introduces the 140CPU31110, a high-performance CPU module designed to drive efficiency and reliability in industrial automation systems. With many features and capabilities, this CPU module epitomizes Schneider Electric's commitment to innovation and quality.

Type and Model

As part of the CPUs category, the 140CPU31110 represents a new processing power and versatility standard. Its model number 140-CPU-311-10 signifies excellence in performance and compatibility within Schneider Electric's product lineup.

Module Format and Clock Frequency

Following the standard format, this CPU module boasts seamless integration into existing setups, ensuring ease of installation and configuration. Operating at a clock frequency of 66 MHz, it delivers swift processing power for demanding industrial applications.

Number of Slots and Racks

This CPU module offers scalability and flexibility, accommodating different system architectures and expansion needs with ease. It supports up to 10 slots and various rack configurations (16, 2, 4, 6).

Distributed and Remote I/O Stations

The module supports various distributed and remote I/O stations, catering to diverse network configurations and connectivity requirements. With extensive input and output capabilities, it ensures seamless data exchange and control across the entire automation system.

Discrete and Analogue I/O Numbers

The module facilitates precise data acquisition and control by featuring a vast array of discrete and analog I/O numbers. Whether distributed or remote, it offers ample capacity for handling various sensor inputs and actuator outputs, ensuring accuracy and efficiency in industrial processes.

Application Specific I/O and Optional Modules

Equipped with application-specific I/O capabilities such as accurate time stamping, counters, and high-speed interrupt inputs, the module enhances system functionality and performance. Additionally, it supports optional modules, including Ethernet, Modbus, Modbus Plus, Profibus DP, and Sy/Max, for further customization and expansion.

Maximum Number of Connections and Integrated Connection Type

The module boasts unlimited local connections for AS-Interface and up to 4 remote connections. With integrated connection types, including Modbus Plus and Modbus, it offers seamless integration into various communication networks.

Memory Description and Switch Function

The module features an internal RAM of 548 kB, ensuring efficient data processing and storage. The slide switch communication port enables flexibility in communication protocols, while the memory port/off switch function enhances security and control.

Frequently Asked Questions about the Schneider Electric 140CPU31110 CPU Module

What is the primary function of the Schneider Electric 140CPU31110 CPU module?

The 140CPU31110 CPU module is the central processing unit in industrial automation systems. It manages data processing, communication, and control tasks to ensure the system's efficient operation.

What is the clock frequency of the 140CPU31110 CPU module?

The CPU module operates at 66 MHz, providing swift processing power for demanding industrial applications.

How many slots and racks does the 140CPU31110 CPU module support?

The module supports up to 10 slots and various rack configurations (16, 2, 4, 6), offering scalability and flexibility in system design and expansion.

What are the supported distributed and remote I/O stations for the 140CPU31110 CPU module?

The module supports up to 63 distributed I/O stations in 1 rack and 31 remote I/O stations across two remote racks, enabling seamless data exchange and control in industrial networks.

What types of I/O numbers does the 140CPU31110 CPU module support?

The module supports extensive discrete and analog I/O numbers for distributed and remote configurations, ensuring precise data acquisition and control in industrial processes.

What optional modules does the 140CPU31110 CPU module support?

The module supports optional modules, including Ethernet, Modbus, Modbus Plus, Profibus DP, and Sy/Max, allowing for further customization and expansion of the system.

How many connections does the 140CPU31110 CPU module support?

The module boasts unlimited connections for AS-Interface locally and up to 4 connections remotely, ensuring seamless integration into various communication networks.

What is the memory description of the 140CPU31110 CPU module?

The module features an internal RAM of 548 kB, enabling efficient data processing and storage for industrial applications.

What is the 140CPU31110 CPU module's switch function?

The module features a slide-switch communication port for flexibility in communication protocols and a slide-switch memory port/off function for enhanced security and control.
