140CPU42402

Schneider Electric 140CPU42402

Rated 5/5 on 3 reviews

Rate this product


MANUFACTURER: Schneider electric

DESCRIPTION: TSX 2M Processor

PRODUCT TYPE INFO: Modicon Quantum

1 in stock


Free Shipping

2 Year warranty

Part Number140CPU42402
ManufacturerSchneider Electric
TypeCPUs
Model #140-CPU-424-02
Warranty2 Year
User Logic 64k words
Discrete64k words
Register 57K
Extended register96K
Max Remote Drops31 drops
Networks per system3 max
Words per Network500 In, 500 Out Max
Words per node 30 In, 30 Out Max
CommunicationModbus (RS-232) 1 serial port, 2 Network ports
Battery 3 V lithium

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 140CPU42402 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 140CPU42402 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 140CPU42402, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped tomorrow?

  • Order within the next 18 hours and 30 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 140CPU42402 for credit when ordering from MRO Electric

What is the replacement for 140CPU42402?

  • The replacement for the 140CPU42402 is the 140CPU43412A.
MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric 140CPU42402 Overview

The Modicon 140 CPU 424 02is a CPU interface support module designed to work on the Modicon Quantum Automation system.  It is manufactured by Schneider Electric in a standalone configuration. The Modicon controller module 140 CPU 424 02 can support up to 6 option module interfaces. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry CPUs from other manufacturers such as Modicon and ABB.

Features

The specifications for the Quantum hardware for the Modicon controller module 140 CPU 424 02 are a max IEC program of 570 K, an SRAM size of 2 M, and 1.8 A of bus current required. The available registers for this unit are 64 k, and the ladder logic is also 64 k.

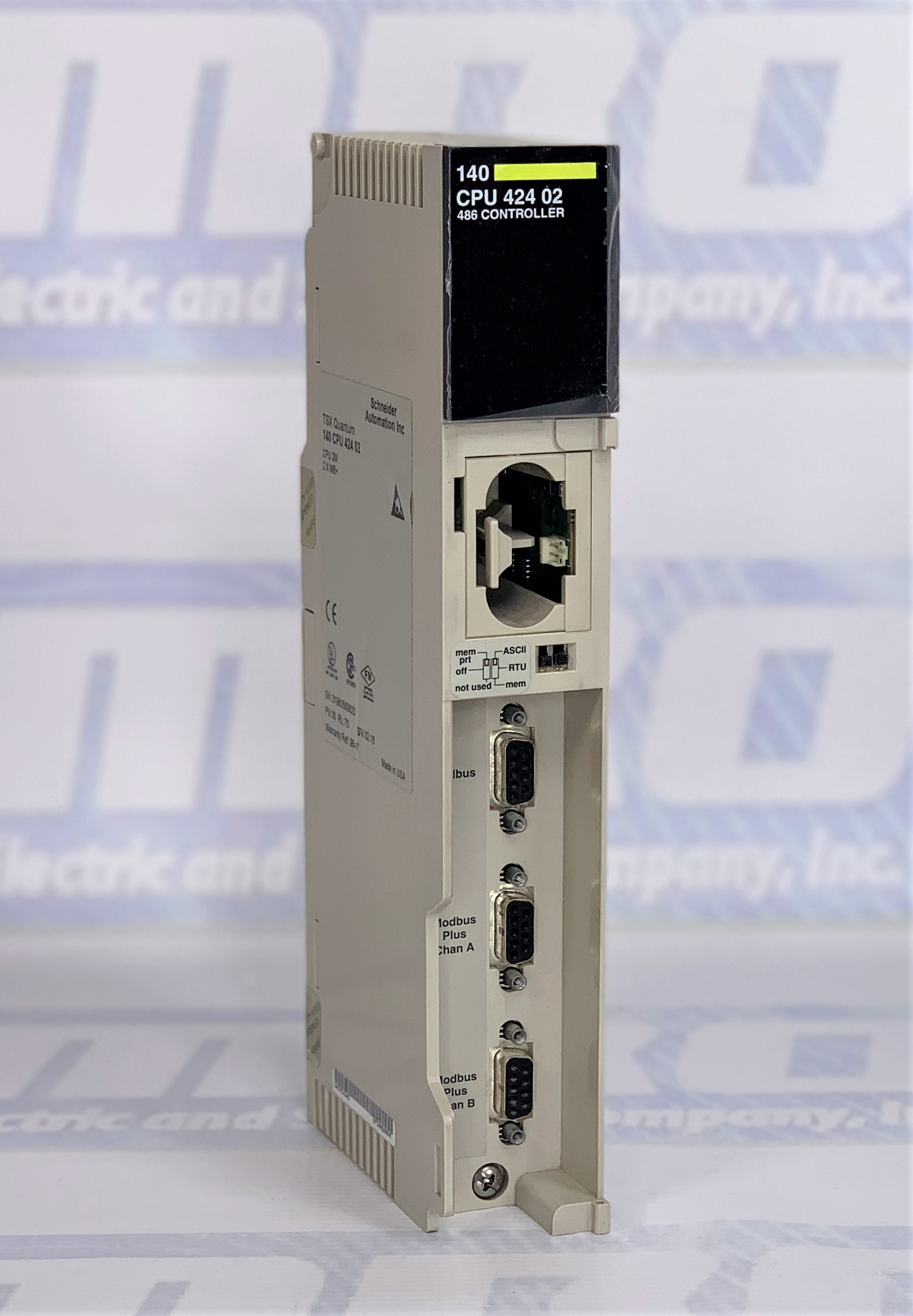

The front of the 140 CPU 424 02 CPU has the part module number and description which is color-coded. The area directly beneath the part number is the LED placement. The 140 CPU 424 02 CPU has a removable door with a customer identification label beneath the LED area. Under the door flap, is where you will find the connections and the battery placement.  The battery placement is inside the middle section. Directly under the battery are two slots for memory protection and comm parameter slide switches. There are three connectors beneath the slide switch location. One Modbus connector, one Modbus connector for channel A and one Modbus plus connector for channel B.

Advantages

The Modbus module has one (1) serial port (9-pin D-shell), and the Modbus Plus has (2) two redundant network ports (9-pin D shell).  The power-up diagnostics are RAM, RAM address, Executive checksum, User Logic Check, and processor. The Runtime diagnostics are RAM, RAM address, Executive Checksum, and user logic check.  The bus current required for the Modicon 140 CPU 424 02 is 1.8 A. The power dispensation is 9 W., and the TOD clock is +/- 8.0 seconds/day 0 ... 60 ° C.The max number of NOM, NOE, and MMS modules connections is 6. Any combination of NOM, NOE, and MMS modules can be used.

The LED descriptions are as follows. Green will indicate the CPU has passed the power-up diagnostics and is ready. It will stay green for starting and solving logic in RUN mode. Green also indicates communications are active on Modbus as well as Modbus Plus. The Amber color indicates memory is write-protected. The red indicator has Error A and Error B.  Error A indicates the redundant Modbus Plus port A has a communications error. Error B indicates the redundant Modus Plus port B has a communications error.

The 140 CPU 424 02 controller module has a max of 64 k in and 64 k out words on the local I/O backplane. The max number of I/O racks is 2 with a required expander. The remote I/O has a max I/O of 64 in and 64 out words per drop and 31 max number of remote drops. The distributed I/O has a max of 3 remote drops which requires the use of the 140NOM2x00 Option Module. The distributed I/O has a max of 500 in and 500 out words per network.
