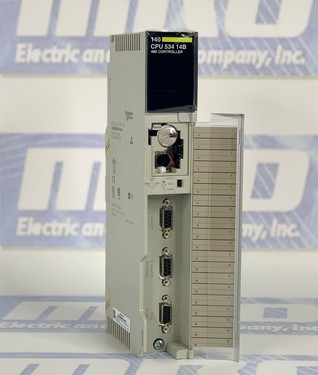

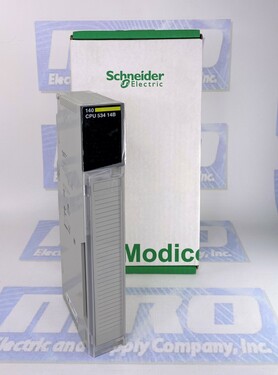

140CPU53414B

140CPU53414B

Rated 5/5 on 3 reviews

Rate this product


MANUFACTURER: Schneider Electric

DESCRIPTION: Processor 586K 4MEG 1xMB+

PRODUCT TYPE INFO: Modicom Quantum Processor



11 in stock
Ships Today

Free Shipping
2 Year warranty

Categories

Part Number140CPU53414B
ManufacturerSchneider Electric
SeriesModicon Quantum
Model #140CPU53414B
Alternate Model140-CPU-534-14B
TypePLC
Warranty2 Year
Execution time for 1 K instruction2.49 65 % Boolean and 35 % numerical
1.86 100 % Boolean
Product or componentProcessor
Software nameConcept
ProWORX 32
Processor name80486
Mathematical coprocessorWith
Clock frequency100 MHz
Memory descriptionInternal RAM 2972 kB
Exact time for 1 Kinstruction0.1...0.5 ms LL984
Watchdog timer250 ms
Clock drift+/-8 s/day at 0...60 °C
I/O words64 I/64 O remote
64 I/64 O max local
30 I/32 O distributed
I/O words/network500 I/500 O distributed
Drops/Network63 distributed
Number of drops31 remote
Number of network3 distributed
2 remote
Battery typeLithium 10 µA 420 µA
Battery capacity1.2 AH
Battery life10 yr
Switch functionKey switch
MarkingCE
Bus current requirement1250 mA

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 140CPU53414B to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 140CPU53414B we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 140CPU53414B, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 2lbs

Want it shipped today?

  • Order within the next 7 hours and 11 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 140CPU53414B for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Additional Information

Schneider Electric 140CPU53414B Overview

The 140CPU53414B is a Modicon Quantum processor for use with ProWorx 32 or Concept software. It includes a mathematical coprocessor and an internal memory of 2972 kB RAM. This unit is functionally identical to the non-B version, with some considerations. If you are using the CPU in a Hot Standby setup, you must use with two non-A, two A, or two B versions. The B version also requires a new flash exec, which is not interchangeable with the A and non-A flash executives.

Features

The front panel has a slide switch which is used to select the comm parameter settings for the Modbus RS232 ports on the 140CPU53414B. There are three options, the top is for ASCII functionality, the middle is for RTU functionality, and the bottom allows you to assign comm parameters to the port. The CPU hardware defaults to bridge mode when the switch is set to RTU or ASCII mode. The processor uses Intel 486 DX4. The clock speed is 100 MHz. The processor is onboard as well as a watchdog timer that is adjustable. This module has internal memory, 2.7 Mb max.

Advantages

The Modicon 140CPU53414B comes with two communication ports.  The first communication port are the two Modbus (RS-232).  The communication port is the one Modbus Plus (RS-485). The required bus current is 1250 ma. Any combination of NOM, NOC, NOE, PTQ, PDP, MV1 or MMS modules can be used to but a max of 6 at any time.  The Modicon 140CPU53414B comes with a key switch.  The CPU module 140CPU53414B can support up to 3 modbus network.

How to use a Modicon 140CPU53414B

When starting a system that is powered by summable power supplies, the appropriate way to do that is to introduce both supplies in the rack. This must be done in an unpowered state. After both unpowered supplies are installed in the rack you can then apply power to each supply.  You do not have to turn them on at the same time. This is because the summable supply is independent of the total rack load.

Product Description

The 140CPU53414B is a Processor 586K 4MEG 1xMB+ that is manufactured by Schneider Electric. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. All of the products in the modicon-quantum line come with a 2 year warranty from MRO Electric. We also carry CPU from other manufacturers such as Modicon and ABB.
