Part Number | 140CPU67260 |
Manufacturer | Schneider Electric |
Type | CPUs |
Model # | 140-CPU-672-60 |
Warranty | 2 Year |
Marking | CE |
4 | |
10 | |
6 | |
16 | |
31 - 2 ethernet Quantum remote I/O rack(s) | |
31 - 2 ethernet X80 remote I/O rack(s) | |
0 - local - forbidden in Hot Standby application | |
8000 inputs, 8000 outputs - distributed - per network Modbus Plus | |
31744 inputs, 31744 outputs - remote | |
0 - local - forbidden in Hot Standby application | |
500 inputs, 500 outputs - distributed - per network Modbus Plus | |
1984 inputs,1984 outputs - remote | |
Counter | |
High-speed interrupt inputs | |
Serial link |
2 ( AS-Interface) - distributed | |
4 ( AS-Interface) - remote | |
6 ( Ethernet TCP/IP) - local | |
6 ( Modbus Plus) - local | |
6 ( Profibus DP) - local | |
1 ( Modbus) - RS232/485 Modbus/ASCII | |
1 Modbus with | |
1 USB with | |
1 optic fibre with Hot Standby protocol | |
Hot standby | |
Expandable 7168 kB - program with PCMCIA card | |
Expandable 8 MB - file storage with PCMCIA card | |
1 periodic fast task - forbidden in Hot Standby application | |
128 I/O interrupt tasks - forbidden in Hot Standby application | |
128 interrupt tasks - forbidden in Hot Standby application | |
32 timer interrupt tasks - forbidden in Hot Standby application | |
4 auxiliary tasks - forbidden in Hot Standby application | |
20 Kinst/ms if 100 % Boolean | |
0.2 ms - fast task | |
1 LED red for Ethernet collision | |
Product or component type | Unity processor |
Mode of transmission | Single mode |
Clock frequency | 266 MHz |
Number of slots | 2 |
Number of racks | 2 - local rack(s) |
Number of distributed I/O station | 63 station(s) - 1 rack(s) - 3 Modbus Plus network(s) |
Number of remote I/O station | 31 - 2 S908 remote I/O rack(s) |
Discrete I/O number | Unlimited (31 drops of 28 slots max) - ethernet remote I/O |
Analogue I/O number | Unlimited (31 drops of 28 slots max) - ethernet remote I/O |
Application specific I/O | Accurate time stamping |
Communication service | Ethernet router |
Number of optional modules | 6 ( Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max) |
Maximum number of connections | 1 ( USB) |
Integrated connection type | 1 Modbus Plus with |
Checks | Process control |
Memory description | Internal RAM 3072 kB - 1536 kB for data |
Switch function | Key switch memory port on/off |
Application structure | 1 cyclic/periodic master task - |
Number of instructions per ms | 10.28 Kinst/ms 100 % Boolean 10.07 Kinst/ms 65 % Boolean and 35 % numerical |
System overhead | 1 ms - master task |
Bus current requirement | 2760 mA |
Local signalling | for Ethernet activity (COM) 1 LED (yellow) for configuration status (STS) 1 LED (yellow |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 140CPU67260 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 140CPU67260 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 140CPU67260, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty 140CPU67260 for credit when ordering from MRO Electric

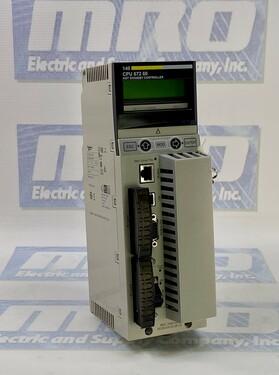

The Schneider Electric 140CPU67260 is a top-tier MODICON QUANTUM UNITY Hot Standby Processor engineered for high-demand automation environments requiring redundancy and reliability. Featuring 3072 KB internal RAM and operating at 266 MHz, this powerful processor is ideal for complex control applications where continuous uptime and data integrity are essential.
Built with Hot Standby capabilities, the 140CPU67260 ensures system resilience by providing a seamless failover mechanism in critical operations. It supports multimode Ethernet communications and is designed to work in redundant pairs for applications where even a momentary loss of control is unacceptable.
With support for up to 31 remote I/O stations via Ethernet and 63 distributed I/O stations through Modbus Plus, this processor offers unmatched flexibility. It can handle unlimited discrete and analog I/O over Ethernet with up to 28 slots per drop, making it highly scalable for large industrial systems.
The 140CPU67260 supports a wide range of communication protocols, including Ethernet TCP/IP, Modbus Plus, Profibus DP, AS-Interface, USB, RS232/485 Modbus/ASCII, and optical fiber with Hot Standby protocol. It also features Ethernet routing services, ensuring robust and efficient data traffic management across industrial networks.
This Unity processor is expandable up to 7168 KB for programs and 8 MB for file storage using a PCMCIA card. It handles a master task with a 1 ms system overhead and supports up to 10.28 Kinst/ms instruction processing speed under full Boolean conditions, ensuring fast and responsive system performance.
With CE marking, built-in diagnostic LEDs for Ethernet and system status, and support for accurate time stamping and high-speed interrupts, the 140CPU67260 is ideal for real-time control environments. Its bus current requirement of 2760 mA ensures consistent power delivery to all components.
MRO Electric and Supply backs the 140CPU67260 with a 2-year warranty, offering peace of mind and dedicated support for your industrial automation systems.
What is the clock speed of the 140CPU67260?
It operates at 266 MHz, ensuring fast processing performance.
Does this processor support Hot Standby?
Yes, it supports full Hot Standby redundancy, ideal for critical applications.
What type of memory does it have?
It includes 3072 KB internal RAM, expandable up to 7168 KB for programs and 8 MB for file storage.
What communication protocols are supported?
Protocols include Ethernet, Modbus Plus, Profibus DP, USB, Modbus ASCII/RTU, AS-Interface, and optical fiber.
Can it be used in local I/O applications?
No, local use is forbidden in Hot Standby applications.
How many I/O stations are supported?
Up to 63 distributed and 31 remote I/O stations can be connected.
Does it support time stamping?
Yes, it supports accurate time stamping for application-specific I/O.
How many modules can be connected?
It allows six optional modules, including Ethernet and fieldbus options.
Is the processor CE marked?
Yes, it comes with CE certification for compliance with European standards.
What is the warranty period?
It comes with a 2-year warranty from MRO Electric and Supply.
