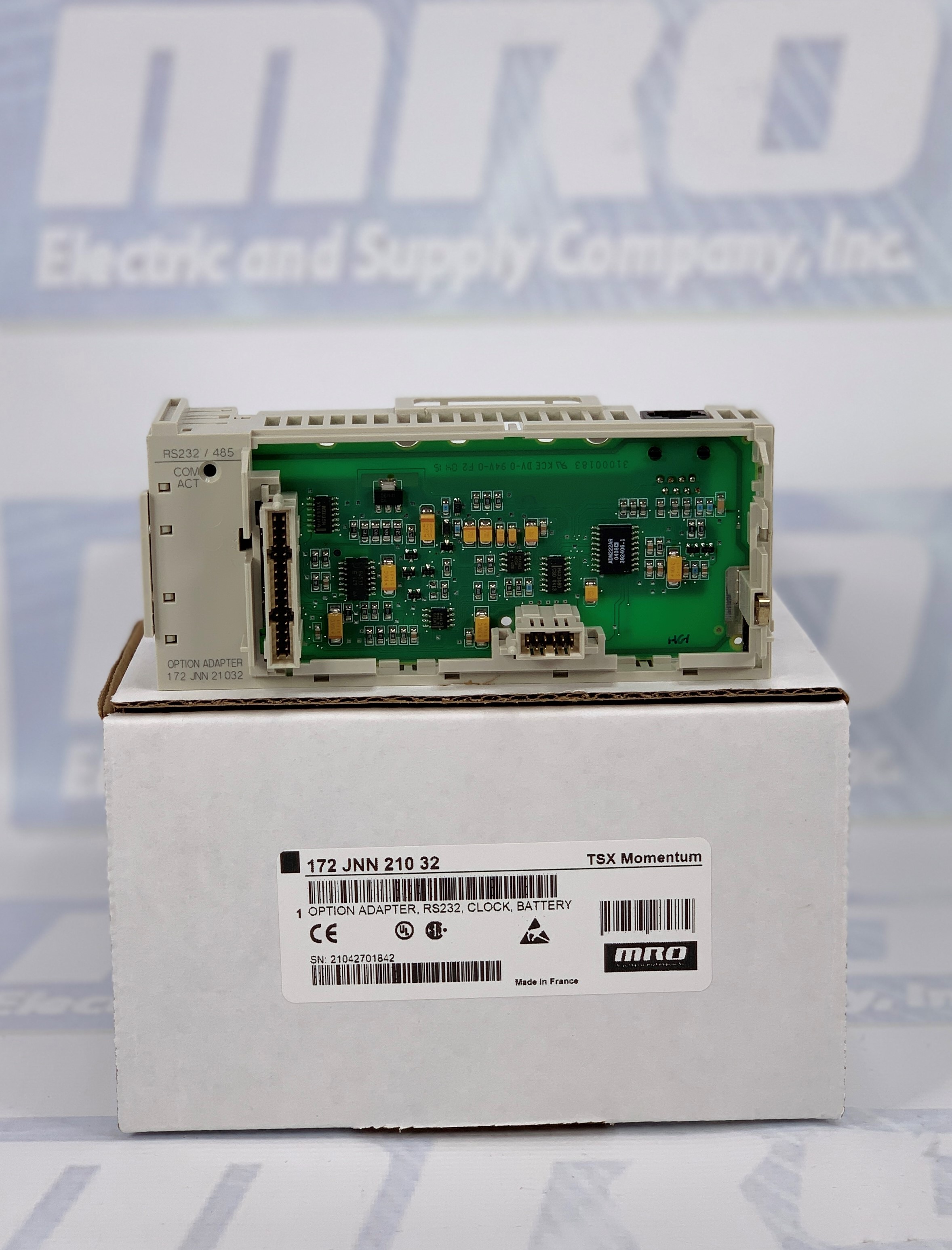

MODICON COMMUNICATION SERIAL LINK OPTION ADAPTER
| Part Number | 172JNN21032 |
| Manufacturer | Schneider Electric |
| Type | Adapters |
| Warranty | 2 Year |
| Accessory / separate part destination | All bases |
| Range of product | Modicon Momentum automation platform |
| Product or component type | Serial link option adaptor |
| Number of port | 1 |
| Communication port type | Single |
| [Us] rated supply voltage | 5 V DC |
| Input voltage tolerance | +/- 5 % |
| Supply | Via I/O base |
| Clock drift | +/- 13 s/day accuracy |
| Battery type | Lithium < 30 day after the battery low indication 104 °F (40 °C) |
| Battery size | 2/3 AA |
| Battery life | 5 yr |
| Communication port support | RS232 or RS485 serial link selectable |
| Electrical connection | 1 connector D-shell 9 pins for Modbus Plus connection |
| Material | Lexan |
| Marking | CE |
| Local signalling | 1 LED communication |
| Current consumption | 700 mA 12 V DC |
| Height | 0.98 in (25 mm) |
| Width | 5.63 in (143.1 mm) |
| Depth | 2.36 in (60.06 mm) |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 172JNN21032 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 172JNN21032 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 172JNN21032, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty 172JNN21032 for credit when ordering from MRO Electric
What is needed to connect a HMIGTO RJ45 to a 172JNN21032 RJ45?
Schneider Electric introduces the 172JNN21032 Serial Link Option Adaptor, designed to elevate the capabilities of your Modicon Momentum automation platform. As a vital component within the ecosystem, this adaptor facilitates seamless communication and integration, offering unparalleled versatility and reliability.
Engineered as an accessory for all bases within the Modicon Momentum platform, the 172JNN21032 adaptor ensures compatibility across a wide range of applications, simplifying installation and integration processes.
Equipped with a single communication port, the 172JNN21032 adaptor provides a streamlined interface for data exchange, enhancing efficiency and reducing complexity within your automation system.
Operating at a rated supply voltage of 5 V DC with an input voltage tolerance of +/- 5%, the 172JNN21032 adaptor draws power via the I/O base, ensuring consistent performance and reliability in diverse operating conditions.
With an impressive +/- 13 s/day accuracy in clock drift, the 172JNN21032 adaptor maintains precise timing for critical operations. Its lithium battery, lasting up to 5 years, ensures uninterrupted functionality, even in the event of power loss.
Supporting RS232 or RS485 serial link communication, the 172JNN21032 adaptor offers flexibility to suit varying connectivity requirements, empowering users to adapt to evolving industry standards and protocols.
Constructed from durable Lexan material and marked with CE certification, the 172JNN21032 adaptor guarantees longevity and compliance with industry standards, providing peace of mind in demanding industrial environments.
Featuring an LED communication indicator, the 172JNN21032 adaptor provides local signaling for monitoring communication status, enabling quick diagnosis and troubleshooting.
With dimensions measuring 0.98 inches (25 mm) in height, 5.63 inches (143.1 mm) in width, and 2.36 inches (60.06 mm) in depth, the 172JNN21032 adaptor boasts a compact form factor, optimizing space utilization within your automation setup.
What is the 172JNN21032 adapter?
The 172JNN21032 adapter is a communication accessory manufactured by Schneider Electric, specifically designed as a serial link option adaptor for the Modicon Momentum automation platform.
Which products is the 172JNN21032 adapter compatible with?
The 172JNN21032 adapter is compatible with all bases within the Modicon Momentum automation platform.
How many communication ports does the 172JNN21032 adapter have?
The 172JNN21032 adapter features one communication port, supporting either RS232 or RS485 serial link, selectable based on the application's needs.
What is the power supply requirement for the 172JNN21032 adapter?
The 172JNN21032 adapter operates with a rated supply voltage of 5 V DC, supplied via the I/O base.
What is the battery type and life of the 172JNN21032 adapter?
The 172JNN21032 adapter utilizes a 2/3 AA lithium battery with a lifespan of approximately 5 years.
What is the clock drift accuracy of the 172JNN21032 adapter?
The clock drift of the 172JNN21032 adapter is approximately +/- 13 seconds per day.
How is the 172JNN21032 adapter connected electrically?
The 172JNN21032 adapter is electrically connected via a D-shell connector with 9 pins specifically for the Modbus Plus connection.
Does the 172JNN21032 adapter have any local signaling features?
Yes, the 172JNN21032 adapter includes one LED for communication signaling.
What are the dimensions of the 172JNN21032 adapter?
The dimensions of the 172JNN21032 adapter are 0.98 inches (25 mm) in height, 5.63 inches (143.1 mm) in width, and 2.36 inches (60.06 mm) in depth.
Is the 172JNN21032 adapter compliant with any certifications?
Yes, the 172JNN21032 adapter is marked with the CE certification, indicating its compliance with European Union standards for safety and environmental protection.
