Part Number | 174CEV20040 |
Manufacturer | Schneider Electric |
Type | Accessories |
Warranty | 2 Year |
Range | ConneXium |
Category | Ethernet/Modbus Plus and gateway/router |
Concept | Transparent Ready |
Supply voltage | 110/220 V AC |
Supply voltage limits | 93.5…242 V AC |
Ethernet service | Modbus TCP messaging SNMP agent |
Class | Class B10 |
Local signalling | for RUN 1 LED |
Communication gateway | Ethernet/Modbus Plus |
Marking | CE |
Supply frequency | 47...63 Hz |
Connection | 1 twisted shielded pairs cable |
Cable length | <328.08 ft (100 m) |
Web services | Diagnostic via predefined web pages Predefined web pages configuration Read/write |
Control | Local/remote control |
Current consumption | 1A |
Height | 9.02 in |
Width | 4.80 in |
Depth | 9.76 in |
Protection | IP20 |
Certifications | CSA 142 UL 508 |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 174CEV20040 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 174CEV20040 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 174CEV20040, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty 174CEV20040 for credit when ordering from MRO Electric
Which ConneXium Gateways support embedded Web diagnostics?

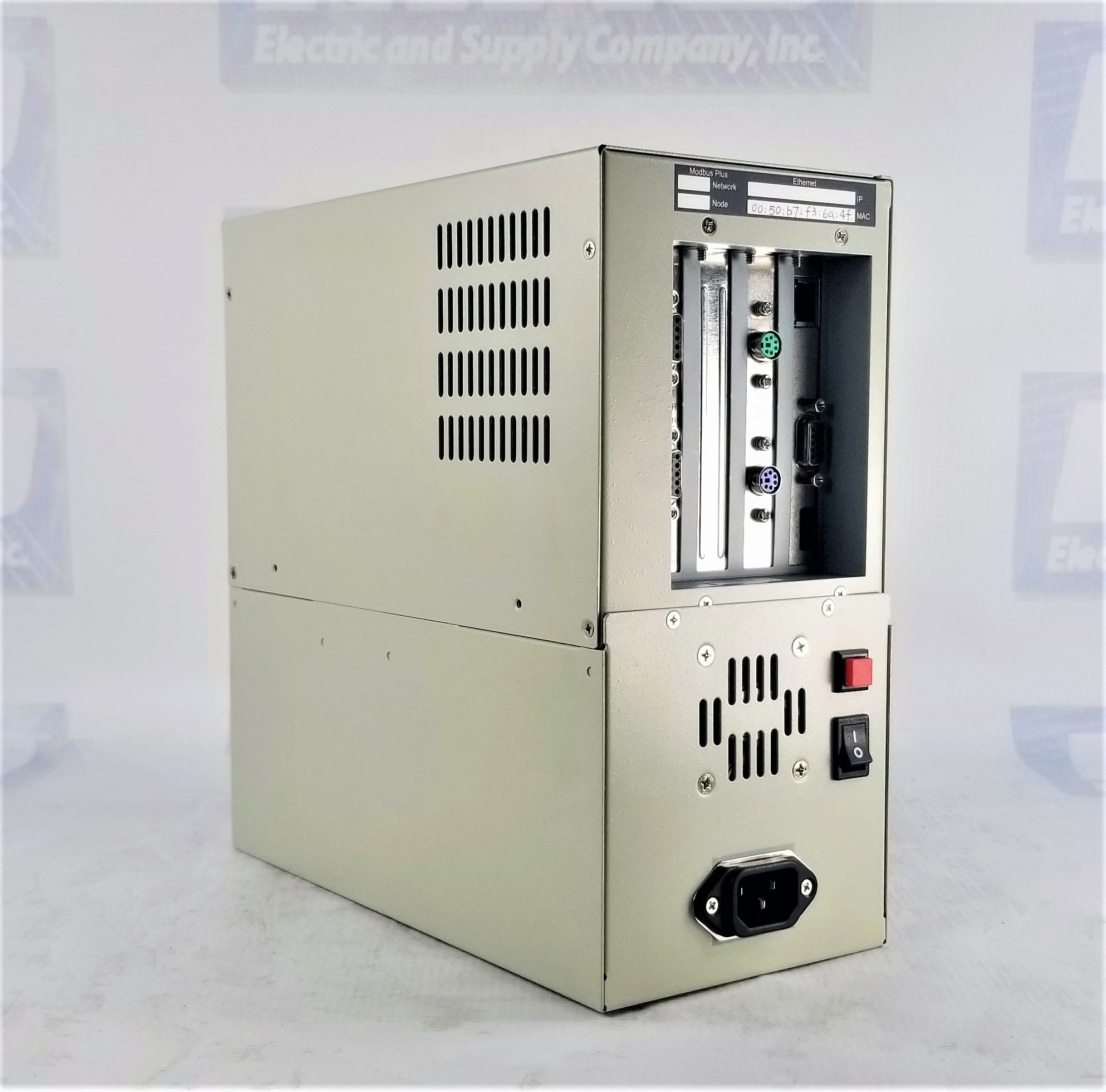

The Schneider Electric 174CEV20040 is a versatile Ethernet/Modbus Plus gateway/router, designed to seamlessly bridge the realms of Ethernet and Modbus Plus communication protocols. Operating at Class B10, this gateway ensures reliable and efficient connectivity in industrial automation applications.
With a rated supply voltage of 110/220 V AC, the 174CEV20040 is equipped to handle varying power requirements. Its transparent ready concept allows for effortless integration into diverse network architectures, ensuring adaptability and ease of deployment.
The gateway offers advanced web services, enabling diagnostics via predefined web pages. These pages can be configured for read/write operations, providing a user-friendly interface for efficient monitoring and management. Whether accessing predefined configurations or engaging in Modbus TCP messaging, the 174CEV20040 ensures robust communication.
In the intricate web of communication, this gateway excels with Ethernet TCP/IP 10BASE-T/100BASE-TX over twisted shielded pairs cable, supporting speeds of 10/100 Mbit/s. Simultaneously, it seamlessly communicates with Modbus Plus using HDLC synchronous RS485 over twisted shielded pairs cable, achieving speeds of 1 Mbit/s. The flexibility of these communication ports makes it a cornerstone in facilitating diverse network infrastructures.
Operating within supply voltage limits of 93.5 to 242 V AC and a frequency range of 47 to 63 Hz, the 174CEV20040 adapts to varying power environments. With local and remote control capabilities, it empowers users with control flexibility, complemented by clear local signaling through an LED for RUN status.
Designed with precision, the gateway boasts a compact form factor with dimensions of 4.80 in (122 mm) in width, 9.02 in (229 mm) in height, and 9.76 in (248 mm) in depth. Despite its robust capabilities, it maintains a net weight of 9.39 lb (4.26 kg), making it an ideal choice for applications where space is at a premium.
In challenging industrial environments, the 174CEV20040 thrives with an IP20 degree of protection, shielding it from dust and other environmental factors. Certified by CSA 142 and UL 508, it adheres to stringent industry standards, ensuring reliability and safety in operation.
The gateway is designed to operate seamlessly within an ambient air temperature range of 32 to 122 °F (0 to 50 °C). Its operational efficiency remains uncompromised even in conditions with a relative humidity of 10 to 95%, without condensation.
In conclusion, the Schneider Electric 174CEV20040 Ethernet/Modbus Plus Gateway/Router stands as a pinnacle of connectivity solutions. With its powerful communication protocols, control flexibility, compact design, and environmental resilience, it proves to be a reliable and efficient bridge between Ethernet and Modbus Plus networks. As industries evolve, this gateway remains at the forefront, ensuring precision, connectivity, and adaptability in the ever-changing landscape of industrial automation.
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry Accessories from other manufacturers such as Modicon and ABB.
