3RT1016-1BB42

2-year Warranty

Same Day Shipping

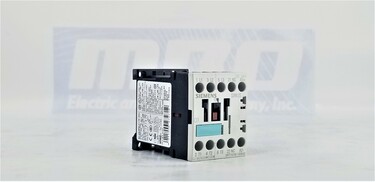

Siemens 3RT1016-1BB42

MANUFACTURER: Siemens
DESCRIPTION: Contactor 20Amp 3Pole, 690Volts AC, 1N/C Coil 24Volts DC
PRODUCT TYPE INFO: SINAMICS


6 in stock

Ships Today


Free Shipping

2 Year warranty

Part Number3RT1016-1BB42
ManufacturerSiemens
TypeContactors
Model #3RT10161BB42
Warranty2 Year
RangeSIRIUS
CategoryS00
Ambient temperature-25 … +60°C
Installation altitude2000m
Pollution degree3
Number of NO contacts3
Supply voltage24 VDC
ProtectionIP20
Auxiliary circuit1 faulty switching per 100 million (17 V, 1 mA)
Number of NC contacts1
Operating current at AC-12 maximum10 A
Operating current at DC-126 A at 60 V / Rated value
Operating current at DC-1310 A at 24 V / Rated value
Mountingscrew and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022
Height 57.5 mm
Width45 mm
Depth72 mm
Spacing required for grounded parts6 mm
