6AV2125-2JB23-0AX0

6AV2125-2JB23-0AX0

Rated 5/5 on 1 review

Rate this product

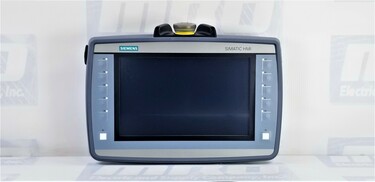

SIMATIC HMI KTP900F MOBILE, 9.0 TFT DISPLAY, 800 X 480 PIXELS,16M COLOR, KEY AND TOUCH OPERATION, 10 FUNCTION KEYS, 1 X PROFINET/INDUSTRIAL ETHERNET INTERFACE;1 X MULTIMEDIA CARD, 1 X USB, ACKNOWLEDGEMENT SWITCH, EMERGENCY-STOP BUTTON, CONFIGURABLE FROM WINCC COMFORT V13 SP1

1 in stock
Ships Today

Free Shipping
2 Year warranty

Categories

HMI
Part Number6AV2125-2JB23-0AX0
ManufacturerSiemens
SeriesSIMATIC
Model #6AV21252JB230AX0
TypeHMI
Warranty2 Year

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 6AV2125-2JB23-0AX0 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 6AV2125-2JB23-0AX0 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 6AV2125-2JB23-0AX0, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 3lbs

Want it shipped today?

  • Order within the next 5 hours and 44 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 6AV2125-2JB23-0AX0 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Additional Information

Siemens 6AV2125-2JB23-0AX0 Overview

The Siemens SIMATIC HMI KTP900F mobile panel module 6AV2125-2JB23-0AX0 is a second-generation Simatic HMI mobile panel. This panel offers you mobile operation as well as monitoring of your production process. The entire 2nd Generation system of mobile panels consists of three parts: A Mobile Panel, a connection box, and a connecting cable.

Features

The 6AV2125-2JB23-0AX0 comes with a 9” wide screen.

The panel structure is designed as a fail-safe HIMI. The 6AV2125-2JB23-0AX0 has the following features on the panel:

· Keyswitch

· Enabling button

· Emergency stop / stop switch for fail-safe Mobile panel

· Cover of the USB port

· Handle

· Function Key blocks

· Display with touch screen

· Illuminated pushbutton

How to use the Siemens 6AV2125-2JB23-0AX0

The fail-safe button is designed for ease in accessibility. There are protective measures designed for the emergency stop /stop button. It is equipped with bumpers to keep it from impact damage. The bumpers are positioned in such a way to allow for activation of the Emergency Stop / Stop button can be activated upon impact.

There are safety measures that must be adhered to when working in and on electrical systems. First, you must make sure the system is turned off. Second, secure the system to keep it from turning back on. Third, check your system to ensure it is de-energized as some of the currents may remain after being switched to the OFF position. Fourth, you must ground and short the system. Last, cover over any parts that are adjacent and are still live. You may also shield these adjacent live parts.

The mobile panel 6AV2125-2JB23-0AX0 comes with an open compartment for the terminal. In order to replace an SD card or a connecting cable, you will be working with the open terminal compartment. The following sequence must be adhered to when connecting:

1. SD memory card, if needed

2. KTP mobile connecting cable

3. Connection box

4. Configuration PC, if needed

The 6AV2125-2JB23-0AX0 has a slot for an optional SD memory card as do all of the 2nd Generation Mobile Panels. The SD card is used for automatic backup purposes and is also used as a back-up storage function. The requirements for replacement must be closely adhered to in order to avoid injury. First, de-energize the unit, then open the terminal compartment while making sure the connection cable is not attached. Then you tune the storage medium, so you have the contacts pointing to the motherboard. You then push the storage board into the slot with a plastic tool.

Advantages

What makes the Siemens panel module 6AV2125-2JB23-0AX0 perfect for the industrial setting? Its design is specifically engineered to resist high falls as it has high impact resistance qualifications. Fortified with a high protection class, it is prepared to work when you are operating with chemicals and cleaning agents. It is designed to resist both chemicals and cleaning agents found in the industrial setting. Additionally, the Siemens mobile panel comes with a protective film to keep it from getting scratched or dirty during operation.

There is storage media available for this unit. You can use either the SIMATIC HMI memory card or a USB flashcard for memory. This will store media on the device and back it up as well as share data to the mobile panel.

The Siemens Simatic HMI KTP900F mobile panel 6AV2125-2JB23-0AX0 comes with a two-year warranty.

Product Description

The 6AV2125-2JB23-0AX0 is a

SIMATIC HMI KTP900F MOBILE, 9.0 TFT DISPLAY, 80... that is manufactured by Siemens. These products are manufactured in Germany and are designed for Automotive, aerospace, power generation, and electronics usage. All of the products in the simatic line come with a 2 year warranty from MRO Electric. We also carry HMI from other manufacturers such as FANUC and Yaskawa.
