6AV3617-1JC20-0AX1

2-year Warranty

Same Day Shipping

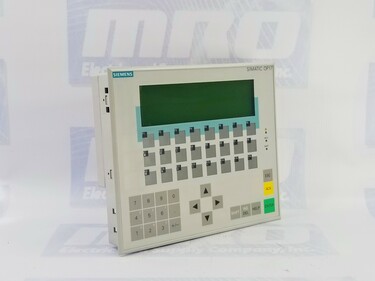

Siemens 6AV3617-1JC20-0AX1

SIMATIC OPERATOR PANEL OP17/DP LC DISPLAY, BACKLIT LED

5/5
1 rating

Select Condition

Refurbished

2 in stock

$1,925.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part Number6AV3617-1JC20-0AX1
ManufacturerSiemens
TypeHMIs
Model #6AV36171JC200AX1
Warranty2 Year
Range SIMATIC OP17
DesignLC display, black/white
Display design8 Lines
Characters per line40 Characters
Backlighting200 000 h
ControlKeys
KeyboardMembrane
Function keys24
Keys with LED16
System keys22
KeyboardNumeric/hexadecimal
MountingVerticle
Max angle mounting90˚
Supply voltage24 V DC
Current consumption0.34 A
Power input10 W
Processor X86
MemoryFlash / RAM
Memory data256 kbyte
Backup batteryOptional 3.6 V
Interfaces/bus type2 x RS232, 1 x RS422, 1 x RS485 (max. 1.5 Mbit/s)
ProtectionIP20 rear, IP65 front
CertificationsCE, PRS, FM Class I Div. 2, UL, EX Zone 2/22

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 6AV3617-1JC20-0AX1 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 6AV3617-1JC20-0AX1 we also repair a wide range of other Siemens products, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 6AV3617-1JC20-0AX1, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 3lbs

Want it shipped today?

  • Order within the next 6 hours and 45 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 6AV3617-1JC20-0AX1 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Siemens 6AV3617-1JC20-0AX1 Overview

Siemens 6AV3617-1JC20-0AX1

The 6AV3617-1JC20-0AX1 is a product from Siemens' SIMATIC HMI range, specifically from the OP17 series. These devices are Human-Machine Interfaces (HMIs) designed to provide visualization and control for automation processes in various industries.

SIMATIC OP17 Overview:

Description: The Siemens 6AV3617-1JC20-0AX1 is an Operator Panel from the SIMATIC OP17 series. It serves as an interface between human operators and machines or automation systems, allowing for monitoring, control, and interaction with industrial processes.

Specs:

  1. Display: Monochrome LCD, backlit.
  2. Resolution: Typically offers pixel graphics.
  3. Keys: Features both function keys and numeric keypad for user inputs.
  4. Memory: Comes with a specific amount of RAM and ROM suitable for storing configurations and running the interface.
  5. Communication: Typically integrates with Siemens controllers via MPI/PROFIBUS-DP interfaces.
  6. Power Supply: Generally operates on 24V DC.

Installation:

  1. Placement: Determine an appropriate location on your control panel or machine ensuring visibility and accessibility for operators.
  2. Cut-out: Create a suitable cut-out in your panel based on the dimensions provided in the product specifications.
  3. Mounting: Insert the HMI into the cut-out and secure it using the
  4. Configuration: Utilize Siemens' SIMATIC ProTool or ProTool/Pro software to design, configure, and transfer the HMI application to the OP17 panel. provided mounting brackets or clamps.
  5. Wiring:
  • Connect the power supply, usually 24V DC.
  • Set up the communication links, such as MPI or PROFIBUS, to your Siemens controller or other devices.

Similar Products:

Siemens SIMATIC HMI range includes various models:

  • Other versions within the OP17 series with different configurations or specifications.
  • Other series like TP (Touch Panel), MP (Multi Panel), and more, offer a range of display sizes, touch functionalities, and capabilities.

FAQs:

Q: What kind of cable do I need for communication?

A: Typically, for MPI/PROFIBUS communication, you'd require a specific MPI or PROFIBUS cable. Always consult the manual for exact requirements.

Q: Can I use the OP17 panel outdoors?

A: The OP17 is primarily designed for indoor industrial environments. If used outdoors, it would require additional protection against external factors.

Q: How do I update the firmware or software of the panel?

A: Updates can be carried out using Siemens' configuration software and the relevant update files. Ensure you follow the official guidelines to prevent any issues during the update process.

The Siemens 6AV3617-1JC20-0AX1 SIMATIC OP17 finds applications across a myriad of industrial sectors:

  1. Manufacturing: It can be integrated into assembly lines, CNC machines, and packaging systems, enabling operators to oversee production and make real-time adjustments.
  2. Energy & Utilities: The OP17 is valuable in power generation plants, substations, and water treatment plants, providing a centralized interface for monitoring and control.
  3. Pharmaceuticals: Ensuring precise control in drug manufacturing and packaging, it offers traceability and consistent product quality.
  4. Food and Beverage: The HMI can monitor temperature, pressure, and other crucial parameters in food processing, ensuring quality and safety standards are met.

Benefits:

  1. Ease of Use: With function keys and a numeric keypad, users can swiftly navigate through interfaces, reducing response times.
  2. Durable Construction: Built for industrial settings, the OP17 is resilient to dust, splashes, and mechanical wear, ensuring longevity.
  3. Compatibility: It seamlessly integrates with Siemens' controllers, offering a harmonized ecosystem for control and automation.
  4. Data Visualization: Its monochrome LCD offers clarity in displaying data, charts, and alarms, aiding operators in making informed decisions.

Maintenance & Troubleshooting:

  1. Regular Cleaning: Wipe the screen and keys periodically with a soft cloth to prevent the accumulation of dust and grime.
  2. Backup: Always maintain a backup of your HMI configurations and applications, facilitating quick recovery during system anomalies.
  3. Periodic Inspection: Ensure the panel's connections, both power and communication, remain secure and undamaged. Regularly inspect for signs of wear or damage.

Conclusion:

The Siemens 6AV3617-1JC20-0AX1 SIMATIC OP17 stands as a testament to Siemens' dedication to simplifying industrial automation. By offering a robust and user-friendly interface, it plays a pivotal role in enhancing productivity, minimizing errors, and optimizing processes. The importance of a dependable HMI cannot be understated in today's fast-paced industrial landscape, and the OP17 certainly lives up to the expectations.
