6AV6545-0DA10-0AX0

2-year Warranty

Same Day Shipping

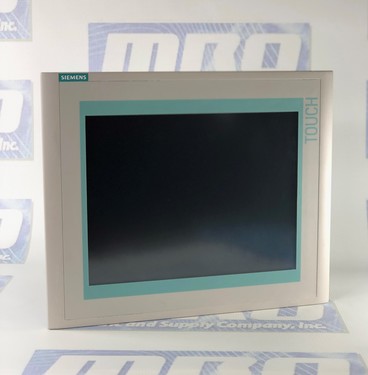

Siemens 6AV6545-0DA10-0AX0

SIMATIC MULTIPANEL MP370 12" COLOR TFT DISPLAY, TOUCH
5/5
2 ratings

Select Condition

Refurbished

2 in stock

$3,179.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part Number6AV6545-0DA10-0AX0
ManufacturerSiemens
TypeHMIs
Model #6AV65450DA100AX0
Warranty2 Year
Display TFT
Colors256 colors
Diagonal 12.1 in
Supply voltageDC
DesignTouch Screen
Connections USB
Push buttonIlluminated
MountingVertical
Rated Input1.15 A
Power input28 W
MemoryFlash/RAM
Memory Data7168 kbyte
Card SlotPC/CF
InterfaceEthernet (RJ45)
ProtectionIP65 (front) IP20 (rear)
Project lang.32 per project

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 6AV6545-0DA10-0AX0 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 6AV6545-0DA10-0AX0 we also repair a wide range of other Siemens products, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 6AV6545-0DA10-0AX0, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 7 hours and 52 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 6AV6545-0DA10-0AX0 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Siemens 6AV6545-0DA10-0AX0 Overview

SIMATIC 6AV6545-0DA10-0AX0

The SIMATIC panel module 6AV6545-0DA10-0AX0 is an HMI MP 370 device manufactured by Siemens for use in the industrial setting. The multi-panel module 6AV6545-0DA10-0AX0 incorporates touchscreen capabilities with a color TFT display.  These products are manufactured in Germany and are designed for Automotive, aerospace, power generation, and electronics usage. They come with a 2-year warranty from MRO Electric. We also carry HMIs from other manufacturers such as FANUC and Yaskawa.

Features of the 6AV6545-0DA10-0AX0

What are some of the user-friendly features offered with the Siemens multi-panel? The Siemens SIMATIC multi-panel module 6AV6545-0DA10-0AX0 offers a graphic display of user operating statuses. It has display data and error capabilities that are on connected PLCs. Using the HMI panel module, monitored machines and systems are easily observed.

What are some of the applicable areas of operation for the Siemens HMI panel 6AV6545-0DA10-0AX0? Areas of use include industrial printing and packaging as well as auto and electrical. Applications in the Chemical and pharmaceutical industries also benefit from the MP 370 SIMATIC module.

The protection degree integrated on the unit is IP 65 (for the front of the panel). The panel installations occur in switching cabinets and consoles as well as cabinet racks (keyboard units only).

Advantages of the Siemens HMI MP 370 panel module 6AV6545-0DA10-0AX0

The Siemens SIMATIC panel 6AV6545-0DA10-0AX0 offers a high degree of configuration efficiency and simulation on the configuration computer with no PLC required.  The clear display front panel and ease of process operation come from using a Window-Based user interface.  When configuring the HMI panel, there is a large selection of predefined screen objects such as dynamic screen objects (e.g., moving objects). Recipe screens, recipe views, and data records are easily accessible in an uncomplicated and quick manner.  Logging of alarms on the multi panel HMI 370 is simple as is the logging of process values and login/logout procedures.

Other advantages are the creation of vector graphics using the WinCC flexible configuration software without an external graphics editor and the use of Visual Basic Script so customized functions can be adapted. The Siemens SIMATIC 6AV6545-0DA10-0AX0 carries ALARM_S alarm procedure in connection with the SIMATIC S7. Standard connections to SIMATIC S5/DP, SIMATIC S7, and SIMATIC 505 are available, as well as connections to PLCs from alternative manufacturers.

Touch screen operation for the 6AV6545-0DA10-0AX0

When operating the 12” MP 370 SINAMIC panel 6AV6545-0DA10-0AX0 remember the unit provides holds optimal extended service life when used as advised with finger touch or touch screen pen. Operating the Siemens panel using alternate methods such as objects with hard or sharp edges can damage your panel and lead to a reduction in service life and failure to operate.

Basic network operations for the Siemens 6AV6545-0DA10-0AX0

What functions are the Standard HMI device used to implement? The 6AV6545-0DA10-0AX0 HMI internet ethernet connection that is onboard the HMI panel allows you to accomplish several tasks. The connection allows you to log data via the network, print via a network printer, store recipe data records in the network, export recipe data records in the network, import recipe data records from the network, transfer projects, and back up data.

FAQs - 6AV6545-0DA10-0AX0 HMI

Q: What is the 6AV6545-0DA10-0AX0 HMI?

A: The 6AV6545-0DA10-0AX0 is a Human-Machine Interface (HMI) manufactured by Siemens, designed for visualization and interaction with industrial automation systems.

Q: What type of display does the 6AV6545-0DA10-0AX0 feature?

A: The 6AV6545-0DA10-0AX0 features a TFT (Thin Film Transistor) display, offering vibrant visuals and clear readability.

Q: What is the diagonal size of the display?

A: The display of the 6AV6545-0DA10-0AX0 has a diagonal size of 12.1 inches, providing ample space for the visualization of data and controls.

Q: How many colors does the display support?

A: The display supports 256 colors, ensuring vivid and detailed graphical representation.

Q: What is the power supply requirement for the 6AV6545-0DA10-0AX0?

A: The 6AV6545-0DA10-0AX0 operates on DC supply voltage.

Q: What type of design does the 6AV6545-0DA10-0AX0 feature?

A: The 6AV6545-0DA10-0AX0 is designed as a Touch Screen HMI, allowing for intuitive and user-friendly interaction.

Q: What are the available connections on the 6AV6545-0DA10-0AX0?

A: The 6AV6545-0DA10-0AX0 features USB connections for convenient data transfer and peripheral connectivity.

Q: Does the 6AV6545-0DA10-0AX0 have push buttons?

A: Yes, the 6AV6545-0DA10-0AX0 features illuminated push buttons for additional control options.

Q: How is the 6AV6545-0DA10-0AX0 mounted?

A: The 6AV6545-0DA10-0AX0 is designed for vertical mounting, suitable for various industrial installations.

Q: What is the rated input for the 6AV6545-0DA10-0AX0?

A: The rated input for the 6AV6545-0DA10-0AX0 is 1.15 A, with a power input of 28 W.

Q: What memory options does the 6AV6545-0DA10-0AX0 offer?

A: The 6AV6545-0DA10-0AX0 provides Flash/RAM with a capacity of 7168 kbyte, ensuring sufficient storage for applications and data.

Q: What interfaces are available on the 6AV6545-0DA10-0AX0?

A: The 6AV6545-0DA10-0AX0 features an Ethernet (RJ45) interface, enabling communication with other devices and networks.

Q: What level of protection does the 6AV6545-0DA10-0AX0 offer?

A: The 6AV6545-0DA10-0AX0 provides IP65 protection for the front and IP20 protection for the rear, safeguarding against dust and water ingress.

Q: What project languages does the 6AV6545-0DA10-0AX0 support?

A: The 6AV6545-0DA10-0AX0 supports up to 32 project languages, ensuring flexibility and compatibility with diverse user requirements.
