Siemens 6AV6645-0BB01-0AX0

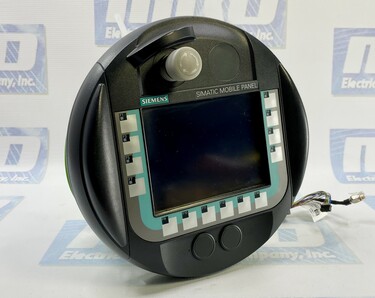

The Siemens 6AV6645-0BB01-0AX0 SIMATIC Mobile Panel 177 PN is equipped with an integrated acknowledgment button and stop button. This device can be configured using either the WinCC flexible Compact Version 2005 or higher or the TIA Portal V11 to V14. The configuration allows for a customized user interface for the device.
The device features a 5.7-inch screen diagonal with an STN display design. It is capable of displaying 256 colors, making it a color display. These products are manufactured in Germany and are designed for Automotive, aerospace, power generation, and electronics usage. They come with a 2-year warranty from MRO Electric. We also carry HMIs from other manufacturers such as FANUC and Yaskawa.

Features

The resolution of the device is as follows: it has a horizontal image resolution of 320 pixels and a vertical image resolution of 240 pixels.

The device's backlighting has a mean time between failures (MTBF) of 50,000 hours at 25 °C. The backlight is not dimmable.

The keyboard features a membrane design with user-definable label membrane keys. It also includes a numeric keyboard, alphanumeric keyboard, and hexadecimal keyboard. The device has 14 function keys, 8 of which are equipped with LEDs. Additionally, there are keys with LEDs. Multi-key operation is supported with two available options.

The device includes two special operator controls: a stop button and an acknowledgment button.

The device's power supply is designed through a connection box and it uses DC as its supply voltage type.

The device is equipped with a 32-bit RISC processor operating at a speed of 200 MHz. It has Flash and RAM types, with 2,048 bytes of memory available for user data. The device also includes a buffer battery with a maximum buffer time of 10 minutes to ensure uninterrupted operation.

The device features two interfaces: one RS 485 and one Ethernet (RJ45) interface.

The device is capable of supporting the PROFINET IO protocol.

The device supports the TCP/IP protocol for Ethernet communication. It also includes support for the MODBUS protocol and other bus systems.

The device has been certified with the following suitability certificates: CE, cULus, C-TICK, and SIBE.
The device has an integrated Flash memory of 32 KB that can be expanded.

The device can be connected to various controllers including S7-200, S7-300/400, Win AC, PC (TCP/IP), SIMOTION, and Modicon (Modbus) via system interfaces described in the relevant chapter.
The device offers the following peripherals and options: a printer and a SIMATIC HMI MM memory card that supports Multi Media Card. However, it does not support a SIMATIC HMI SD memory card or USB memory.
The device's enclosure material for the front is plastic. It has a diameter of 245 mm and a housing depth of 58 mm. The device weighs 1.3 kg without packaging.
