Siemens 6EP1437-3BA00

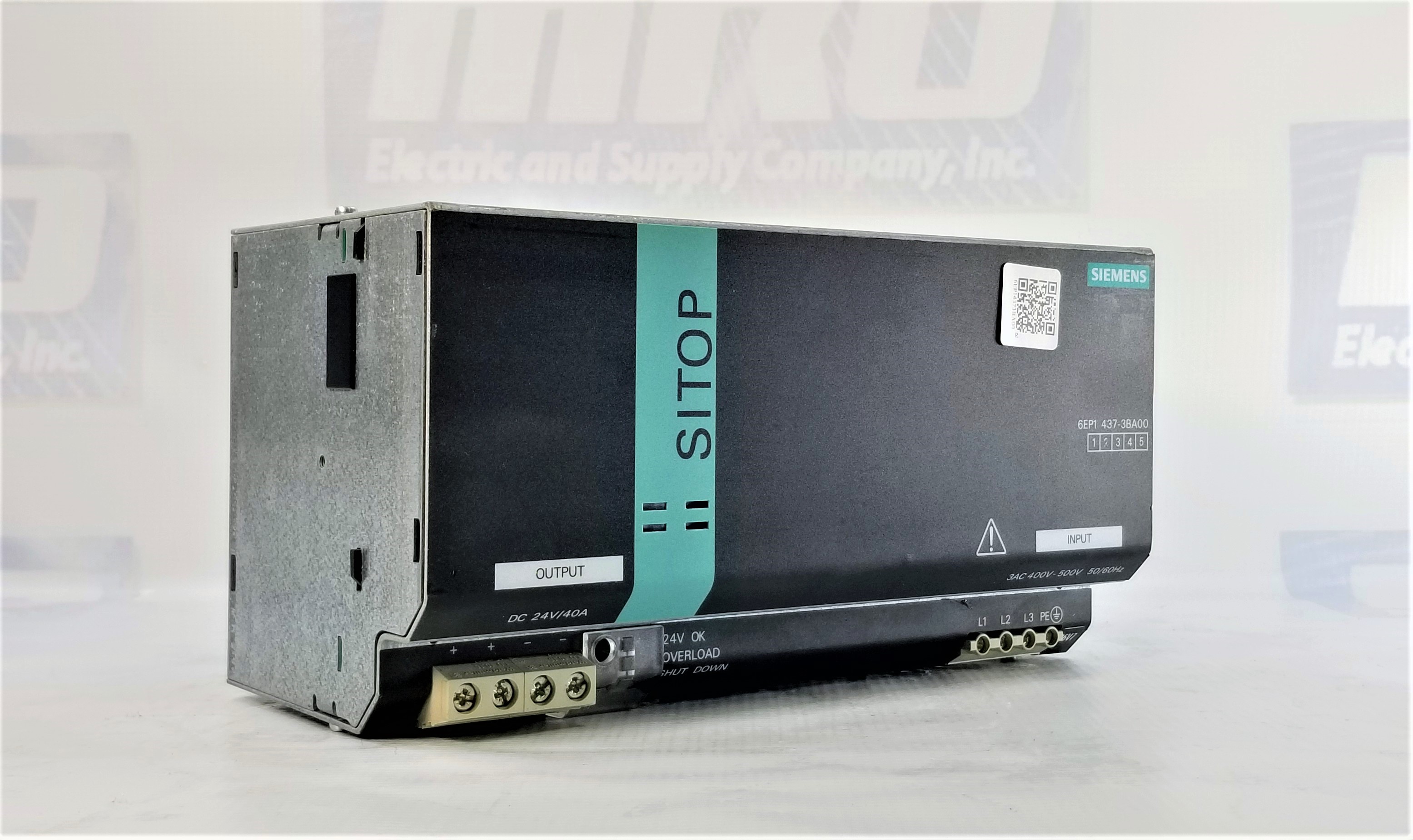

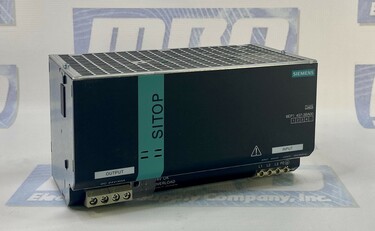

The Siemens 6EP1437-3BA00 is a SITOP Modular power supply unit that provides stable power for various industrial applications. It has an input of 3-phase AC with a rated voltage range of 400-500 V and a wide voltage range of 320-550 V. The power supply offers a high level of overvoltage resistance, with a value of 2.3 times the rated input voltage for a duration of 1.3 ms. These products are manufactured in Germany and are designed for Automotive, aerospace, power generation, and electronics usage. They come with a 2-year warranty from MRO Electric. We also carry Power Supplies from other manufacturers such as FANUC and Yaskawa.

Features

The input current of the 6EP1437-3BA00 is 2.2 A at a rated input voltage of 400 V, and it has a switch-on current limiting feature to protect against high currents during startup. The power supply also incorporates protection in the mains power input, requiring a 3-pole connected miniature circuit breaker with a rating of 10-16 A.

On the output side, the 6EP1437-3BA00 provides a controlled and isolated DC voltage of 24 V. It has a total tolerance of ±3% and static mains compensation of approximately 0.1%. The power supply offers an adjustable output voltage range of 24 to 28.8 V, which can be set via a potentiometer. The rated current value is 40 A, and the power supply supports a current range of 0 to 40 A.

Operation

To ensure efficient operation, the 6EP1437-3BA00 features dynamic mains compensation and dynamic load smoothing. It has an efficiency of approximately 90% at rated voltage and current, with a power loss of around 106 W. The power supply also incorporates closed-loop control to maintain stable output voltage and quick load step response times.

The power supply is designed to operate in a wide range of environmental conditions, with an ambient temperature range of 0 to 70 °C during operation. It has a robust mechanical design, featuring screw-type terminals for easy and secure connections. The 6EP1437-3BA00 is designed to be mounted on a DIN rail and offers options for additional electrical accessories such as a buffer module and signaling module.

Protection

For protection and monitoring, the 6EP1437-3BA00 includes features such as output overvoltage protection, current limitation, and short-circuit protection. It is designed to be short-circuit-proof and offers both overload and short-circuit indicators for easy troubleshooting.

Safety

In terms of safety, the power supply provides primary/secondary isolation and complies with safety standards for galvanic isolation. It has a leakage current of a maximum of 3.5 mA and a protection class of Class I. The 6EP1437-3BA00 is also certified with CE, UL/cUL, IECEx, ATEX, and cCSAus approvals.

Overall, the Siemens 6EP1437-3BA00 SITOP Modular power supply unit provides reliable and stable power for industrial applications, offering a wide input voltage range, adjustable output voltage, and various protective features to ensure safe and efficient operation.
