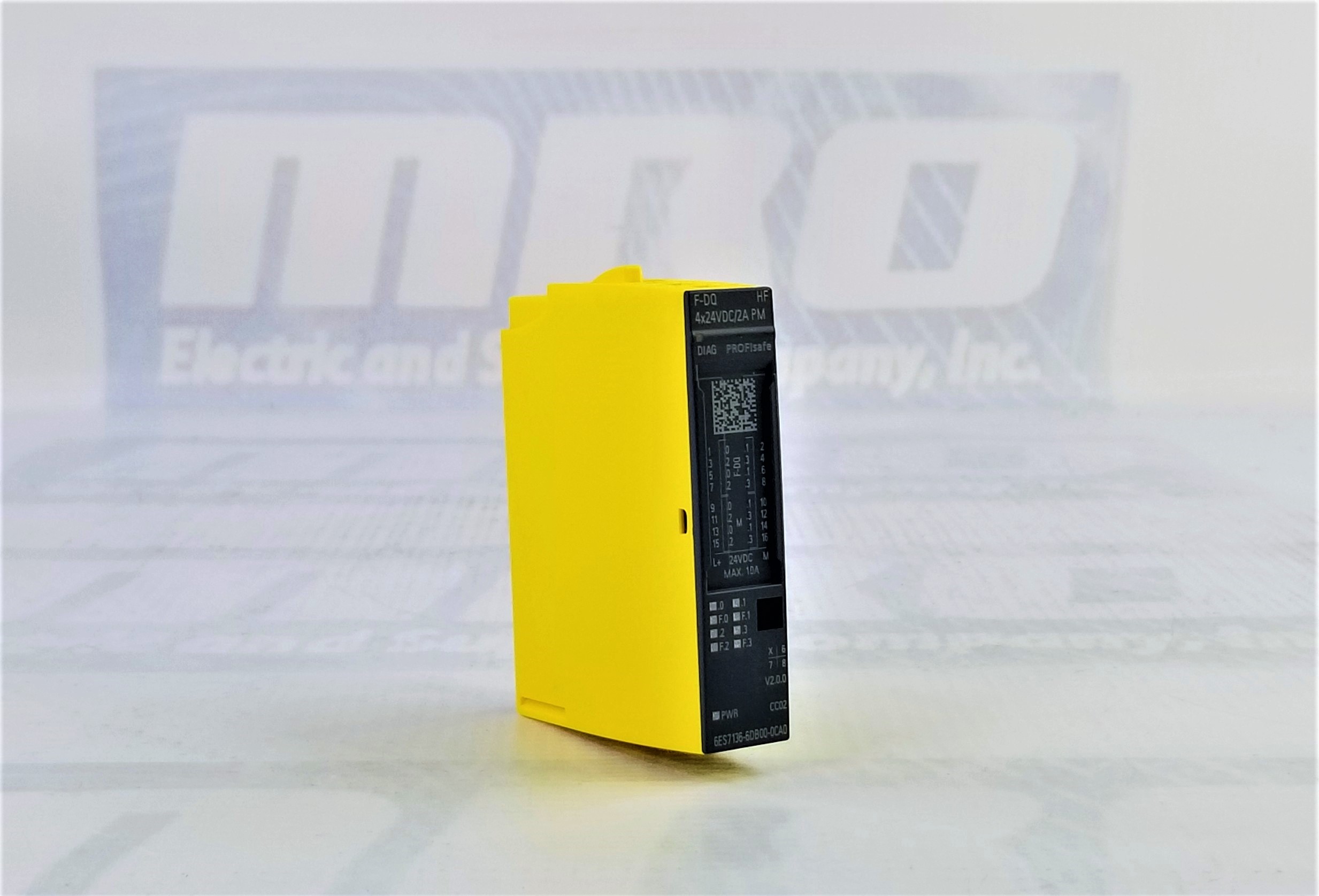

Part Number | 6ES7136-6DB00-0CA0 |
Manufacturer | Siemens |
Type | I/O Modules |
Model # | 6ES71366DB000CA0 |
Warranty | 2 Year |
Designation | F-DQ 4x24VDC/2A PM HF |
Base Units | AO |
Rated Input | 24 V |
Max lower V | 19.2 V |
Max upper V | 28.8 V |
Rated consumption | 75 mA; without load |
Rated output | 24 V |
Rated busplane power | 70 mW |
Power loss | 4 W |
Addresss input | 5 byte |
Address output | 5 byte |
Digital output | Transistor |
No. digital out | 4 out |
Width | 15 mm |
Height | 73 mm |
Depth | 58 mm |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 6ES7136-6DB00-0CA0 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 6ES7136-6DB00-0CA0 we also repair a wide range of other Siemens products, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 6ES7136-6DB00-0CA0, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty 6ES7136-6DB00-0CA0 for credit when ordering from MRO Electric
The Siemens 6ES7136-6DB00-0CA0 I/O Module epitomizes excellence in industrial automation, offering precise control and unmatched versatility. Manufactured by Siemens, a global leader in automation technology, this module is engineered to meet the exacting demands of modern industrial applications. With its advanced features and robust design, it serves as a cornerstone in enhancing operational efficiency and productivity.
Designated as F-DQ 4x24VDC/2A PM HF, this I/O module is designed to deliver high-performance functionality. Its designation signifies its ability to handle four digital outputs with a voltage rating of 24VDC and a maximum current of 2A per output. The "PM HF" designation denotes its suitability for applications requiring precise and high-frequency control, ensuring optimal performance in demanding industrial environments.
Compatible with AO base units, the 6ES7136-6DB00-0CA0 seamlessly integrates into existing automation setups, offering plug-and-play functionality. Its compatibility with AO base units enhances flexibility and scalability, allowing for easy expansion and customization to meet evolving operational requirements.
Operating with a rated input voltage of 24V, this I/O module provides precise voltage control, ensuring stable and reliable performance. With a maximum lower voltage of 19.2V and a maximum upper voltage of 28.8V, it accommodates variations in input voltage while maintaining consistent output levels. This capability is crucial for maintaining operational stability and protecting connected equipment from voltage fluctuations.
Despite its powerful performance, the 6ES7136-6DB00-0CA0 I/O module features efficient power consumption, consuming only 75mA without load. Its low power consumption reduces energy costs and minimizes heat dissipation, contributing to overall system efficiency and sustainability.
Featuring transistor-based digital outputs, this module offers robust and reliable performance in controlling external devices. With four digital outputs available, it provides ample connectivity for various industrial applications, ranging from simple to complex control tasks.
Measuring just 15mm in width, 73mm in height, and 58mm in depth, this I/O module boasts a compact and space-saving design. Its compact form factor makes it ideal for installations where space is limited, allowing for flexible mounting options without compromising functionality or performance.
Constructed with quality materials and subjected to rigorous testing, the Siemens 6ES7136-6DB00-0CA0 I/O module ensures reliability and durability in demanding industrial environments. Its robust construction and resilient components withstand harsh operating conditions, minimizing downtime and maintenance costs.
A: The Siemens 6ES7136-6DB00-0CA0 is an Input/Output (I/O) module designed for industrial automation applications. It facilitates the control and monitoring of external devices within a broader automation system.
A: Some key features include four digital outputs with a voltage rating of 24VDC and a maximum current of 2A per output, precise voltage control with a rated input voltage of 24V, transistor-based digital outputs, efficient power consumption, and a compact design.
A: This I/O module is compatible with AO base units, offering seamless integration into existing automation setups. It is designed to work within Siemens' modular automation systems, providing flexibility and scalability.
A: The 6ES7136-6DB00-0CA0 is suitable for a wide range of industrial applications, including but not limited to manufacturing, process control, logistics, and machinery automation. It can be used to control various external devices such as valves, motors, solenoids, and sensors.
A: The module features efficient power consumption, consuming only 75mA without load. This reduces energy costs and minimizes heat dissipation, contributing to overall system efficiency and sustainability.
A: Yes, the module is designed for ease of installation and operation. It offers plug-and-play functionality with compatible AO base units and features a compact design for flexible mounting options.
