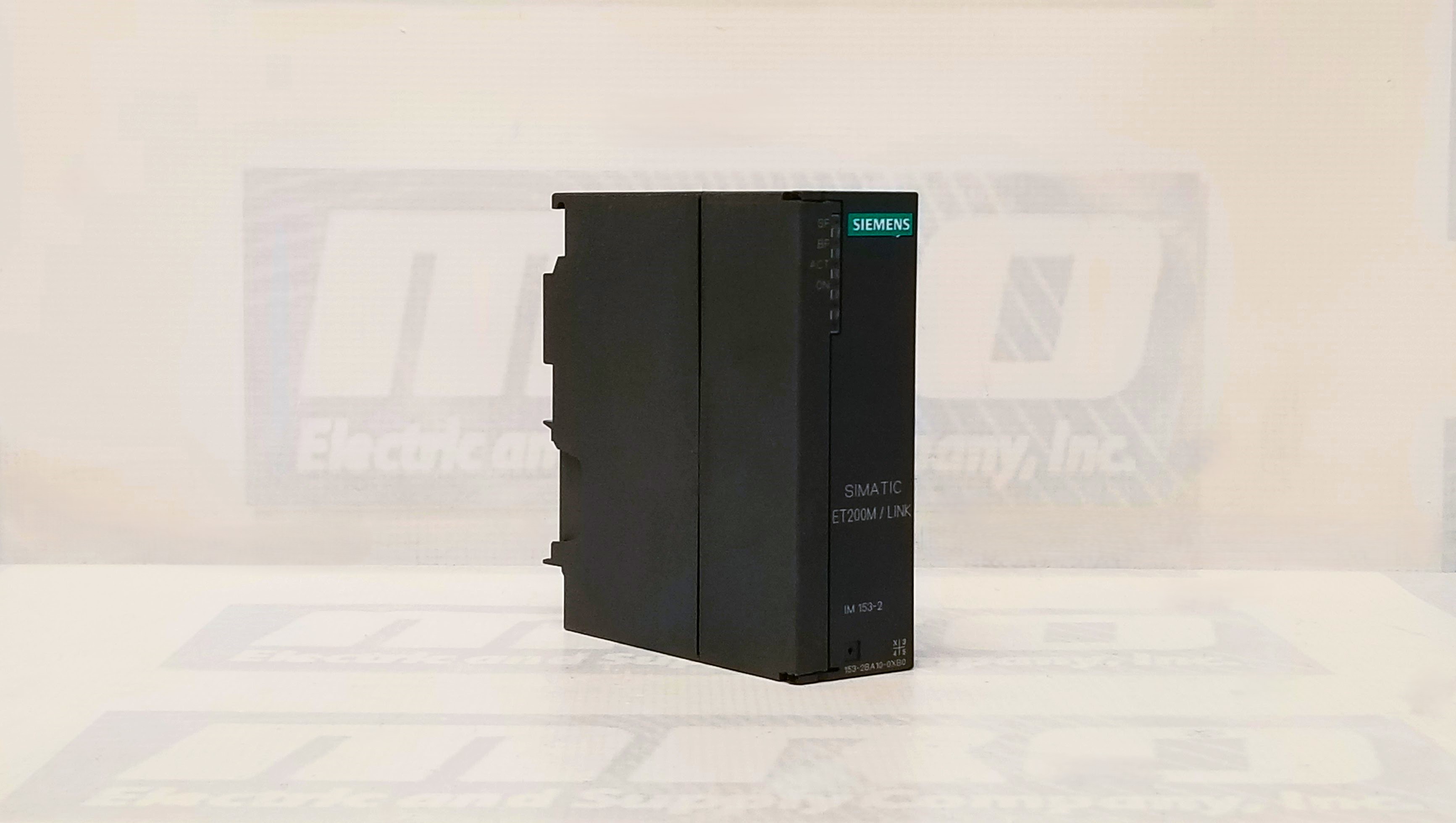

Siemens 6ES7153-2AA02-0XB0

SIMATIC DP ET 200M INTERFACE FOR MAX. 8 S7-300 MODULES

3 in stock

Ships Today


Free Shipping

2 Year warranty

Part Number6ES7153-2AA02-0XB0
ManufacturerSiemens
TypeInterface Modules
Model #6ES71532AA020XB0
Warranty2 Year
RangeSIMATIC DP
CategoryET 200 M
DescriptionInterface
Supply voltage24 V
Mains buffering5ms
Current 550 mA; At 24 V DC
Power loss5V
Current out1A
InterfaceRS 485
T/rate12 Mbit/s
ProtocolsPROFIBUS DP to EN 50170
ProtectionIP20

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 6ES7153-2AA02-0XB0 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 6ES7153-2AA02-0XB0 we also repair a wide range of other Siemens products, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 6ES7153-2AA02-0XB0, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 1 hour and 20 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 6ES7153-2AA02-0XB0 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Siemens 6ES7153-2AA02-0XB0 Overview

Siemens 6ES7153-2AA02-0XB0: SIMATIC DP, ET 200M Interface Module

Overview and Key Features

The Siemens 6ES7153-2AA02-0XB0 SIMATIC DP ET 200M interface module is a highly efficient and versatile component for industrial automation systems. Engineered to connect up to eight S7-300 modules, this module supports redundancy and time stamping, making it ideal for applications requiring robust and reliable data communication. With an external DC 24 V power supply and no additional external protection for the power lines, this module offers seamless integration into industrial environments. Its mains buffering capability ensures a stored energy time of 5 ms during power failures, providing continuity and reliability in operation.

Power Supply and Energy Efficiency

This module features a maximum current consumption of 550 mA at 24 V DC and type, 2.5 A inrush current, and an I²t value of 0.1 A²·s. On the output side, it delivers a rated voltage of 5 V DC, supporting up to 1 A for the backplane bus. Its typical power loss is 5 W, ensuring energy-efficient operation.

Data Addressing and Hardware Configuration

Regarding data addressing, the module allows 128-byte input and output addressing volumes, enabling efficient communication within industrial systems. The 6ES7153-2AA02-0XB0 supports eight modules per DP slave interface, ensuring scalability for complex industrial setups.

Time Stamping and Message Handling

The module excels in time stamping, achieving an impressive accuracy of 10 ms with up to 128 stampable digital inputs. The RFC 1119 Internet (ISP) time format ensures precise synchronization, while its message buffer holds up to 15 buffers, each capable of accommodating 20 messages. Time-stamped signals for rising and falling edges can be transmitted every 1,000 ms, enabling real-time monitoring and control.

Interface and Communication

The module’s interface capabilities include RS 485 transmission at a maximum rate of 12 Mbit/s, with automatic transmission rate detection. It supports PROFIBUS DP communication compliant with EN 50170, providing features such as SYNC, FREEZE, and direct data exchange between slave nodes. The 9-pin sub-D socket design ensures secure connections, and the module is equipped with a GSD file for easy configuration and integration into PROFIBUS networks.

Safety and Environmental Protection

Isolation-tested with a voltage of 500 V and an IP20 degree of protection, the module is suitable for industrial environments with temperatures ranging from 0°C to 60°C. This ensures reliable performance even in demanding conditions.

Compact Design and Warranty

Compact and lightweight, the module measures 40 mm in width, 125 mm in height, and 117 mm in depth and weighs approximately 360 g. The Siemens 6ES7153-2AA02-0XB0 is backed by a two-year warranty and free shipping from MRO Electric and Supply, making it a reliable and cost-effective choice for industrial automation projects.
