Siemens 6ES7322-1FL00-0AA0

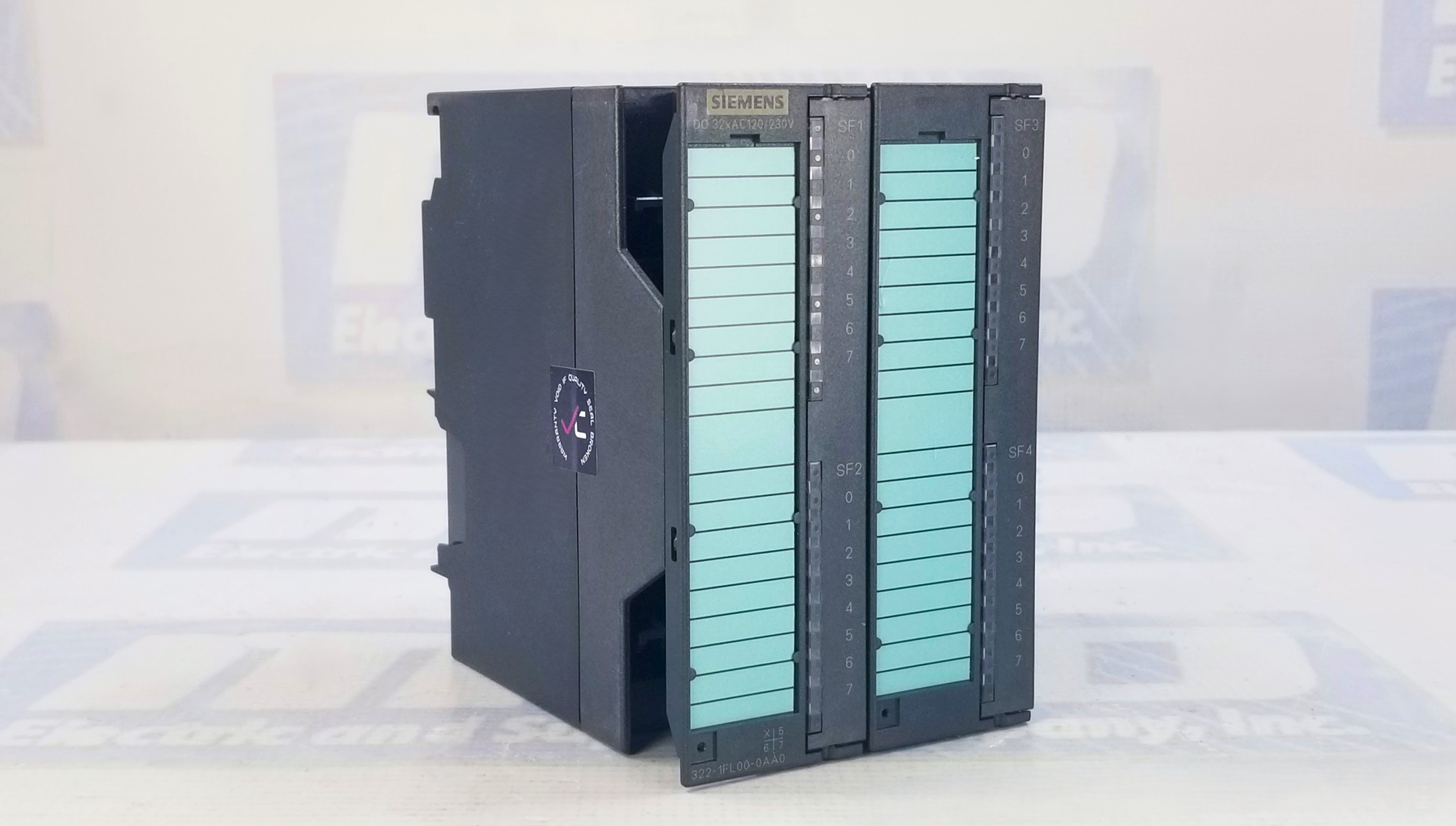

Siemens 6ES7322-1FL00-0AA0 Digital Output Expansion Module

The Siemens 6ES7322-1FL00-0AA0 is a robust digital output expansion module designed for the S7-300 series of programmable logic controllers (PLCs). This high-capacity module features 32 digital outputs, each capable of handling 120 VAC and delivering up to 1 amp of current. Engineered for heavy-duty industrial control systems, it is ideal for applications requiring reliable switching and control of high-voltage devices. Whether used in manufacturing, processing, or infrastructure automation, this module provides the performance and flexibility needed for complex automation tasks.

High-Capacity Output with AC Switching

Equipped with 32 output channels, the 6ES7322-1FL00-0AA0 allows for extensive control over external devices such as relays, contactors, signal lamps, and other AC-powered actuators. Each output channel can handle loads at 120 volts AC, with a maximum current of 1 amp per channel. This makes it an excellent choice for high-density output requirements, minimizing the need for multiple modules and simplifying system design. The AC switching capability is handy in environments where AC power control is standard, enabling direct connection to field devices without additional relays or converters.

Engineered for the S7-300 System

As part of the Siemens S7-300 family, this expansion module seamlessly integrates into existing PLC configurations, maintaining consistent performance and communication within the automation system. The S7-300 platform's modular architecture supports easy installation, expansion, and maintenance, allowing users to scale their systems as operational needs evolve. With compatibility across various CPU modules and easy configuration via Siemens' STEP 7 software, the 6ES7322-1FL00-0AA0 ensures efficient system integration and programming.

Reliable Industrial-Grade Design

This output module is built to Siemens' exacting quality standards for industrial environments. It is designed to operate reliably in harsh conditions, including areas with high levels of electrical noise, temperature fluctuations, and mechanical vibration. With a compact and modular form factor, the 6ES7322-1FL00-0AA0 maximizes space in control cabinets while delivering high-output functionality. Additionally, its user-friendly design simplifies wiring and diagnostics, reducing downtime during setup and troubleshooting.

Value-Added Support from MRO Electric and Supply

When purchased from MRO Electric and Supply, the 6ES7322-1FL00-0AA0 comes with a 2-year warranty, ensuring peace of mind and protection against unexpected failures. MRO also offers free shipping, making this an economical and hassle-free option for system upgrades or replacements. With trusted Siemens engineering and the added service benefits of MRO, this module offers both performance and value for industrial automation professionals.

Frequently Asked Questions (FAQ)

What is the Siemens 6ES7322-1FL00-0AA0 used for?

This module controls up to 32 AC-powered devices through digital output signals in an S7-300 automation system.

Is this module compatible with other Siemens PLCs?

It is specifically designed for the Siemens S7-300 series and integrates directly with CPUs and racks from that system.

What voltage does each output support?

Each of the 32 outputs supports 120 volts AC, which is suitable for controlling most standard industrial devices.

How much current can each output handle?

Each output can deliver up to 1 amp of current, providing sufficient power for various actuators and relays.

Is this an isolated output module?

Siemens digital output modules typically include galvanic isolation for each channel to enhance system safety and prevent electrical interference.

How is the module programmed?

Programming and configuration are done using Siemens STEP 7 software, which supports the entire S7-300 platform.

Can this module switch inductive loads?

Yes, it can handle inductive loads like contactors or solenoids, though external protection like snubber circuits may be required for longevity.

Does the module include diagnostic LEDs?

Yes, diagnostic LEDs are provided for each channel to indicate output status and help with troubleshooting.

What type of wiring connections does it use?

The module typically uses front connectors with screw terminals or push-in terminals, depending on the rack configuration.

What's included in the purchase from MRO Electric?

MRO Electric provides the module with a 2-year warranty and free shipping, offering dependable service and support.
