Siemens 6FC5203-0AF02-0AA0

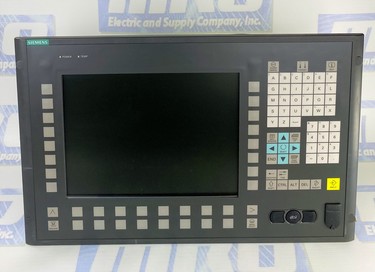

Siemens SINUMERIK Operator Panel Front OP 012 – 6FC5203-0AF02-0AA0

Overview

The Siemens SINUMERIK Operator Panel Front OP 012, model 6FC5203-0AF02-0AA0, is a sophisticated control panel designed for industrial automation applications. This panel features a 12.1-inch TFT color display with an 800x600 resolution and a clear and detailed interface for machine control. Equipped with a 59-key membrane keypad, including horizontal and vertical softkeys, as well as an integral mouse and a USB port, the OP 012 offers a highly functional and user-friendly experience. Although the manufacturer officially discontinued this model on September 30, 2015, it remains a crucial component for many industrial systems that rely on the SINUMERIK series for CNC (Computer Numerical Control) operations.

Functionality and Features

The 6FC5203-0AF02-0AA0 operator panel is designed to provide a seamless interface between machine operators and SINUMERIK CNC systems. Combining physical keys and a softkey interface allows for efficient navigation and operation of complex machining processes. The built-in integral mouse further enhances usability, eliminating the need for an external pointing device. The TFT color display ensures crisp visualization of control parameters, diagnostic information, and machine status. The inclusion of a USB port allows for easy data transfer and connectivity with external devices, enhancing the system's flexibility.

Compatibility and Application

This operator panel is part of the SINUMERIK series and is widely used in CNC machining applications, including milling, turning, grinding, and other automated manufacturing processes. It is compatible with various Siemens SINUMERIK control units, making it an integral part of many industrial automation setups. Despite being discontinued, many industries still rely on this model due to its robust design and proven performance in demanding environments. With an intuitive layout and high durability, the OP 012 is ideal for operators who require precision and reliability in machine control.

Availability and Warranty

While Siemens no longer manufactures the 6FC5203-0AF02-0AA0, it is still available for immediate purchase from MRO Electric and Supply. MRO Electric provides a two-year warranty on the product, ensuring quality and reliability. This makes it an excellent option for businesses looking to maintain or repair existing SINUMERIK systems without transitioning to newer control panels.

Frequently Asked Questions

What is the screen size and resolution of the OP 012 panel?

The OP 012 features a 12.1-inch TFT color display with an 800x600 resolution, providing clear visuals for machine operations.

How many keys does the membrane keypad have?

The panel has a 59-key membrane keypad with additional horizontal and vertical softkeys for enhanced navigation and control.

Is this operator panel still being manufactured by Siemens?

No, Siemens officially discontinued the 6FC5203-0AF02-0AA0 on September 30, 2015. However, it is still available through third-party suppliers like MRO Electric and Supply.

Can this panel be used with any CNC machine?

The OP 012 is specifically designed to be compatible with Siemens SINUMERIK CNC control systems, so it may not work with non-Siemens systems without modification.

What connectivity options does this operator panel offer?

It includes a USB port for data transfer and connectivity with external devices, making it easy to update software or exchange files.

What is the benefit of the integral mouse?

The integral mouse allows precise cursor movement within the control interface without requiring an external pointing device, improving ease of use.

How can I tell if my OP 012 panel needs replacement?

Unresponsive keys, display malfunctions, or failure to communicate with the CNC system are signs that your panel may need replacement.

Is the OP 012 panel easy to install?

Yes, it is designed for straightforward installation in compatible SINUMERIK systems, but a technician should install the optimal setup.

What is the warranty on this product?

MRO Electric and Supply offers a two-year warranty on the OP 012, ensuring it functions reliably after purchase.

Where can I purchase a replacement for the OP 012 panel?

Although discontinued by Siemens, the 6FC5203-0AF02-0AA0 is still available for purchase from MRO Electric and Supply. It allows businesses to maintain their existing CNC systems without an immediate upgrade.
