6FC5210-0DF31-2AA0

2-year Warranty

Same Day Shipping

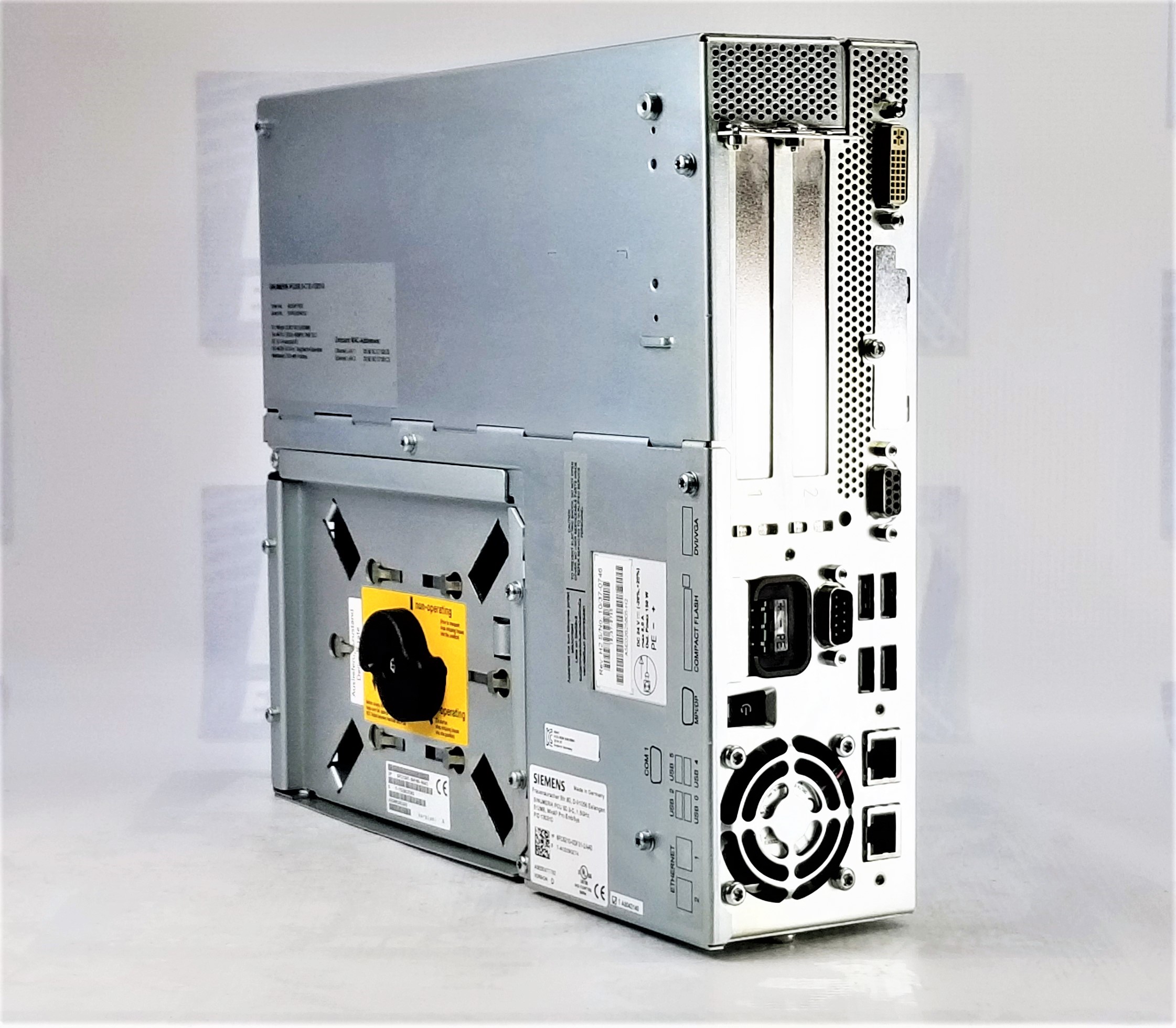

Siemens 6FC5210-0DF31-2AA0

SINUMERIK CPU MODULE, 1.5GHZ, 1 X 512MB RAM, 24 VDC
5/5
2 ratings

Select Condition

Refurbished

Request Quote

New

3 in stock

$7,977.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part Number6FC5210-0DF31-2AA0
ManufacturerSiemens
TypeAccessories
Model #6FC52100DF312AA0
Warranty2 Year
ProcessorIntel Celeron M
RAM512 MB SDRAM
Input voltage24 V DC
Power consumption, max.190 W
Mains buffering time20 ms
Degree of protectionIP20
Ambient temperature5 … 45 °C (41 ... 113 °F)
Height10.51 in
Width11.69 in
Depth3.22 in
Weight13.23 lb

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 6FC5210-0DF31-2AA0 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 6FC5210-0DF31-2AA0 we also repair a wide range of other Siemens products, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 6FC5210-0DF31-2AA0, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 4lbs

Want it shipped tomorrow?

  • Order within the next 23 hours and 2 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 6FC5210-0DF31-2AA0 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Siemens 6FC5210-0DF31-2AA0 Overview

Siemens 6FC52100DF312AA0

The high-performance PCU 50.3-C operator panel module 6FC52100DF312AA0 is manufactured by Siemens for CNC control. The 6FC52100DF312AA0 has 512 MB SDRAM, and input voltage of 24 V DC. The max power consumption for this PCU module is 190 W with a main buffering time of 20 ms. It carries an IP20 degree of protection. The humidity rating for the Siemens 6FC52100DF312AA0 is Class 3K5 condensation and icing excluded. Low air temperature 0 °C (32 °F) These products are manufactured in Germany and are designed for Automotive, aerospace, power generation, and electronics usage. They come with a 2-year warranty from MRO Electric. We also carry Accessories from other manufacturers such as FANUC and Yaskawa.

Features of the Siemens 6FC52100DF312AA0

The Siemens 6FC52100DF312AA0 PCU 50.3-C module has communication interfaces Ethernet, MPI, and PROFIBUS DP that are integrated as well as integrated free slots for use with additional cards.

What operating system is employed on the 6FC52100DF312AA0? The 6FC52100DF312AA0 uses the Windows XP Pro Emb Sys operating system. Additionally, the Ghost data backup for backing up as well as restoring data.

The 6FC52100DF312AA0 uses Intel mobile processor technology to bring high performance and the best energy efficiency. Several items are monitored to bring you dependable operation. Among these are temperature, hard disk, and fan.

A PCU 50.3-C: Intel Celeron M Mobile processor 1.5 GHz/512 MB/1 MB L2 Cache/400 MHz FSB and PCU 50.3-P: Intel Pentium M Mobile processor 2.0 GHz/1 GB/2 MB L2 Cache/533 MHz FSB are a part of the design of the Siemens 6FC52100DF312AA0. The 6FC52100DF312AA0 module uses a 40 GB replaceable hard disk with a transport mechanism: 12 GB for applications (HMI-Advanced, MCIS software) and data (part programs, documentation, other data). It uses 15 GB for local backups and software to be installed.

The maximum memory configuration includes two GB.  The memory configuration includes graphics memory on two memory module slots.

The Siemens high-performance PCU 50.3-C operator panel module 6FC52100DF312AA0 includes integrated graphics. It has 8 to 96 MB of dynamic graphics memory.  The graphics memory comes from the module’s main memory.

What operating system is compatible with the Siemens 6FC52100DF312AA0? The 6FC52100DF312AA0 PCU 50.3-C operator panel uses the Windows XP Pro Emb Sys operating system. How do you back up and restore data with the 6FC52100DF312AA0 PCU 50.3-C module? For backup and restore, use the Ghost data backup software.

Which ports will you find on the Siemens 6FC52100DF312AA0 PCU 50.3-C module? The Siemens 6FC52100DF312AA0 PCU 50.3-C panel module has two Ethernet ports that are 10/100 Mbit/s (RJ45). It also has four USB 2.0 ports, one PROFIBUS / MPI interface port, and one COM 1 (RS 232 C) port.

Are there expansion slots available on the Siemens 6FC52100DF312AA0 PCU 50.3-C? Yes, there are expansion slots. It includes two slots. One slot for PCI (1 265 mm (10.43 in), 1 175 mm (6.89 in)), and one slot for a compact flash card.

Highlights of the Siemens 6FC52100DF312AA0

Intel Celeron M

512 MB SDRAM

24 V DC input voltage

190 W Max power consumption

IP20 Degree of protection

-20 … +60 °C (-4 ... +140 °F) Storage/ transport ambient temp

Max. 15 W for expansions 5 … 55 °C (41 ... 131 °F), Max. 20 W for expansions 5 … 50 °C (41 ... 122 °F), and Max. 30 W for expansions 5 … 45 °C (41 ... 113 °F) Ambient operation temp.

FAQ: Siemens 6FC5210-0DF31-2AA0 Accessories

What type of product is the Siemens 6FC5210-0DF31-2AA0?

The Siemens 6FC5210-0DF31-2AA0 is an accessory designed for industrial automation systems.

What is the processor used in this accessory?

It features an Intel Celeron M processor known for its reliability and efficiency in industrial applications.

What is the RAM capacity of the Siemens 6FC5210-0DF31-2AA0?

This accessory has 512 MB of SDRAM, providing sufficient memory for multitasking and data processing tasks.

What is the input voltage requirement for the Siemens 6FC5210-0DF31-2AA0?

It operates on a 24 V DC input voltage, making it compatible with standard industrial power systems.

What is the maximum power consumption of this accessory?

The Siemens 6FC5210-0DF31-2AA0 has a maximum power consumption of 190 W, ensuring efficient energy usage in industrial environments.

How long is the mains buffering time for this accessory?

It offers a mains buffering time of 20 ms, ensuring uninterrupted operation during power fluctuations or brief outages.

What is the degree of protection provided by the Siemens 6FC5210-0DF31-2AA0?

It has an IP20 degree of protection rating, offering protection against solid objects and limited protection against water ingress.

What is the ambient temperature range within which this accessory operates?

The Siemens 6FC5210-0DF31-2AA0 operates within an ambient temperature range of 5 to 45 °C (41 to 113 °F), suitable for various industrial environments.

What are the physical dimensions of the Siemens 6FC5210-0DF31-2AA0?

It has a height of 10.51 inches, a width of 11.69 inches, and a depth of 3.22 inches, providing a compact form factor for easy integration into industrial control systems.

What is the weight of this accessory?

The Siemens 6FC5210-0DF31-2AA0 weighs 13.23 pounds, ensuring stability and durability in industrial settings while remaining manageable for installation and maintenance purposes.
