Siemens 6FX2007-1AD13

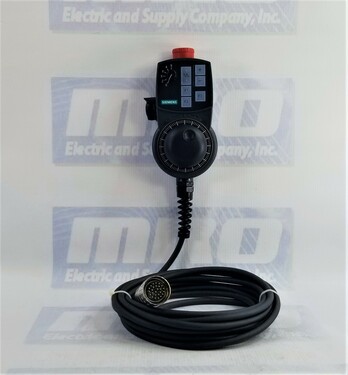

The Siemens 6FX2007-1AD13 Mini Handheld Unit (Mini HHU) is a compact and ergonomic device designed for setting up and operating simple machines in the JobShop area or similar applications. With its user-friendly interface and precise positioning capabilities, it offers convenience and efficiency to operators. These products are manufactured in Germany and are designed for Automotive, aerospace, power generation, and electronics usage. They come with a 2-year warranty from MRO Electric. We also carry Accessories from other manufacturers such as FANUC and Yaskawa.

Features

The Mini HHU features a robust metal connector, making it suitable for both right-handed and left-handed operators. The key labeling on the unit can be customized using slide-in labels, allowing for easy identification and operation. Additionally, the Mini HHU can be securely fixed on metal surfaces using the integrated magnetic clamp, and an optional holder shell is available for added convenience.

Control

The unit comes with several operator controls, including a rapid traverse key for high-speed travel, traversing keys for +/- direction control, and F1, F2, and F3 function keys that can be assigned for specific applications. The Mini HHU also includes an axis selector switch for choosing between five axes and a neutral position, allowing operators to select the desired axis for operation.

The handwheel on the Mini HHU enables operators to initiate movements on the selected axis. It provides two track signals with 100 increments per revolution, allowing for precise control. Additionally, the unit includes a rapid traverse key that increases the traversing speed of the selected axis, affecting both the +/- keys and handwheel signals.

Safety

Safety is a crucial aspect of the Mini HHU, and it incorporates an Emergency Stop button and a 2-channel enabling button. The red Emergency Stop button is used in critical situations where there is a risk to individuals or potential damage to machines or workpieces. It can be turned clockwise to unlatch it. The enabling button, designed as a 3-way switch, must be held in the central position to activate traversing movements.

Connection

To connect the Mini HHU, a connection kit is required for connection to a machine control panel (MCP). The kit includes a metal flange socket for installation at the machine and a terminating connector for overriding the emergency stop circuit when the Mini HHU is not connected. Wiring connections for the emergency stop and enabling button are made at the terminal block.

When connecting the Mini HHU to an MCP, specific connector ports are used (X51, X52, X55, and X60). The coding of machine functions and connection to customer keys ensures proper integration and functionality.

Configuration

Configuration of the Mini HHU involves setting parameters in the basic PLC program, specifically FB1 parameters in OB100. Detailed instructions for configuration can be found in the Function Manual Basic Functions.

In summary, the Siemens 6FX2007-1AD13 Mini Handheld Unit is a versatile and user-friendly device for operating simple machines. With its ergonomic design, customizable labeling, and comprehensive operator controls, it offers convenience and efficiency in various applications. The unit's safety features, including the Emergency Stop button and enabling button, prioritize operator well-being and machine protection. By following the provided guidelines, operators can easily connect and configure the Mini HHU to ensure seamless integration into their machine control system.
