Siemens 6GK7343-1EX11-0XE0

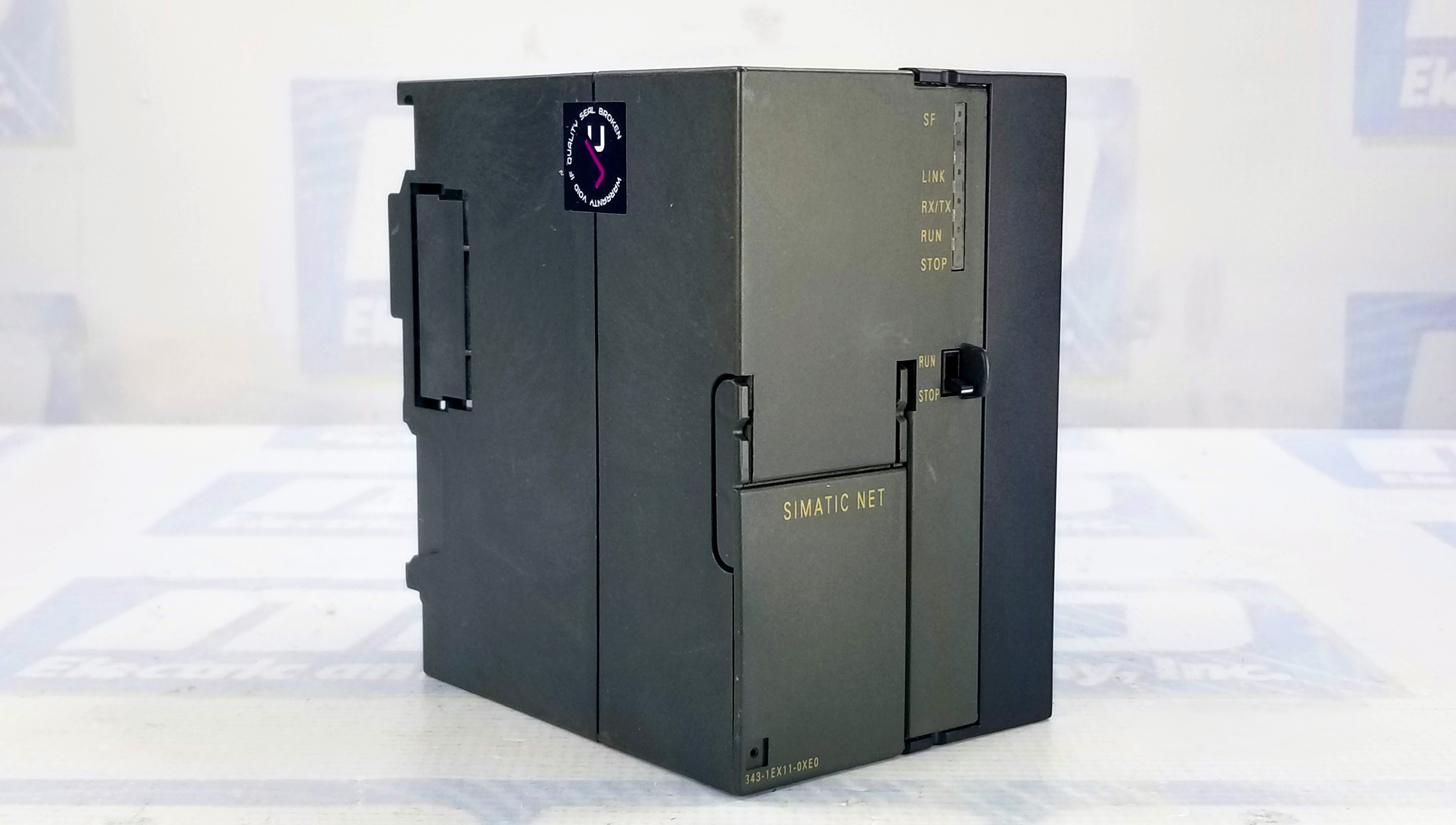

Siemens 6GK7343-1EX11-0XE0 – Communication Processor CP343-1

The Siemens 6GK7343-1EX11-0XE0 is a versatile and reliable communication processor designed for integration with the SIMATIC S7-300 automation system. Known as the CP343-1, this module facilitates seamless Ethernet connectivity for your programmable logic controllers (PLCs), providing a crucial communication link between your automation devices and broader industrial networks. Supporting 10/100 Mbit/s Ethernet transmission speeds, this communication processor enhances data exchange, supports distributed automation, and improves the connectivity of your industrial environment.

Ethernet Communication for S7-300 Systems

The CP343-1 is explicitly engineered to expand the communication capabilities of the Siemens S7-300 PLC series. Adding this module to your setup enables your system to communicate via Industrial Ethernet, allowing for remote programming, diagnostics, and data transmission across various devices and control levels. This feature particularly benefits plant-wide automation, where a centralized monitoring and control system is necessary. It supports TCP/IP, ISO-on-TCP (RFC1006), and S7 protocol services, making it compatible with various industrial applications and third-party systems.

Flexible Integration and High Data Throughput

With 10- and 100 Mbit/s transmission rates, the CP343-1 ensures fast and reliable communication, even in data-intensive applications. Whether you're accessing PLC data from a remote location, uploading/downloading programs, or integrating with SCADA and MES systems, this communication processor provides the speed and stability required. Its dual-speed Ethernet port allows it to automatically adapt to the network infrastructure, ensuring compatibility with both older and newer network components.

Robust and Reliable Performance in Industrial Settings

The CP343-1 is built to withstand the challenges of industrial environments. It is designed to be mounted directly into an S7-300 rack, so it is easy to install and configure. Its robust housing and industrial-grade components allow it to function reliably even under harsh conditions, such as extreme temperatures, vibration, and electromagnetic interference. This makes it a dependable choice for long-term deployments in manufacturing plants, processing facilities, and infrastructure systems.

Enhanced Diagnostics and Security

The module offers diagnostic capabilities that make network troubleshooting and maintenance easier. Users can monitor the communication status, receive error messages, and perform diagnostics remotely. The CP343-1 also includes security features that help protect against unauthorized access and potential network threats, ensuring data integrity and system safety in your automation processes.

Frequently Asked Questions (FAQ)

What is the primary function of the CP343-1 module?

It enables Ethernet communication for Siemens S7-300 PLCs, allowing them to connect to networks for data exchange, programming, and diagnostics.

Is this module compatible with other Siemens platforms?

It is specifically designed for use with the SIMATIC S7-300 series, but it can communicate with other devices over Ethernet using standard protocols.

What kind of Ethernet speeds does the CP343-1 support?

It supports 10 Mbit/s and 100 Mbit/s Ethernet speeds, with auto-sensing for network compatibility.

Can I use this module for remote PLC programming?

The CP343-1 allows for remote access, programming, and diagnostics over an Ethernet network.

Does the module support TCP/IP protocols?

It supports TCP/IP, ISO-on-TCP, and S7 communication protocols.

How is the module installed?

It mounts into an S7-300 rack as a plug-in module, integrating seamlessly with the existing PLC hardware.

Is special software required for configuration?

Configuration is typically done using Siemens' STEP 7 software, part of the TIA Portal, or classic environments.

Does it offer diagnostic tools?

Yes, built-in diagnostics help monitor communication status and identify errors quickly.

What are typical applications for the CP343-1?

It is used in distributed automation systems, SCADA integration, industrial networking, and remote maintenance setups.

What warranty and shipping are included with the purchase from MRO Electric?

MRO Electric offers a 2-year warranty, free shipping, pre-shipment testing, and technical support on this module.
