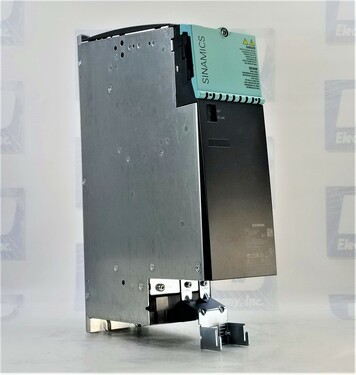

SINAMICS S120 DOUBLE MOTOR MODULE INPUT: DC 600V
Part Number | 6SL3120-2TE21-8AD0 |
Manufacturer | Siemens |
Type | AC Drives |
Model # | 6SL31202TE218AD0 |
Warranty | 2 Year |
Design | Double motor module |
Construction | Booksize |
Rated Voltage | 510 ... 720 VDC |
Power Supply | DC 24 V -15 % / +20 % |
Max Current | 1.10 A |
Cooling | Internal Air |
Ambient temp | 32 ... 104 °F |
Rated Output Current | 2 x 18.0 A |
Rated pulse frequency | 4.00 kHz |
Output frequency | 650 Hz (servo control) |
Output frequency | 600 Hz ((Vf control) |
Output frequency | 300 Hz (Vector control) |
Standards | CE, cULus |
Height | 14.9 in |
Width | 3.94 in |
Depth | 10.63 in |
Protection | IP20/UL Open type |
Safety Integrated | SIL 2 acc. to IEC 61508, PL d acc. to EN ISO 13849-1, Category 3 acc. to EN ISO 13849-1 |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 6SL3120-2TE21-8AD0 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 6SL3120-2TE21-8AD0 we also repair a wide range of other Siemens products, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 6SL3120-2TE21-8AD0, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty 6SL3120-2TE21-8AD0 for credit when ordering from MRO Electric
The Siemens 6SL3120-2TE21-8AD0 is an advanced AC drive that delivers optimal control and efficiency in industrial motor applications. As part of Siemens' renowned SINAMICS series, this model is engineered with a double motor module, providing reliable performance for demanding environments that require precise control over two motors. With a construction that adheres to Siemens' booksize format, the 6SL3120-2TE21-8AD0 ensures it can fit seamlessly into compact installations without sacrificing power or functionality. The unit is highly rated and capable of operating at voltages between 510 and 720 VDC, making it suitable for a wide range of industrial applications where flexibility and power are paramount.
The double motor module design of the Siemens 6SL3120-2TE21-8AD0 allows the user to control two motors simultaneously, maximizing productivity and optimizing energy usage. This design is ideal for applications that require synchronized motion control or for processes that involve running multiple machines or systems in tandem. By integrating dual motor control in one unit, Siemens has effectively reduced the need for additional hardware, cutting costs and saving valuable space in control cabinets. This makes the 6SL3120-2TE21-8AD0 a perfect fit for manufacturing, packaging, and material handling industries.
Siemens' booksize construction ensures that the 6SL3120-2TE21-8AD0 is space-efficient while maintaining robust performance. This AC drive can easily be integrated into tight spaces or existing control systems, measuring 14.9 inches in height, 3.94 inches in width, and 10.63 inches in depth. Its compact size does not compromise its power, as the unit is designed to handle heavy-duty industrial tasks while minimizing the footprint. The internal air-cooling system further enhances operational efficiency by maintaining optimal temperatures during continuous use, ensuring the drive remains reliable even in high-stress environments.
The Siemens 6SL3120-2TE21-8AD0 AC drive operates on a DC power supply with an input voltage range of 510 to 720 VDC, offering substantial versatility in terms of power input. It is equipped to manage complex motor control tasks with a rated output current of 2 x 18.0 A, and the drive supports a rated pulse frequency of 4.00 kHz. With an output frequency of 650 Hz in servo control, 600 Hz in Vf control, and 300 Hz in vector control, the drive can provide precise and responsive control for various motor types and applications. This flexibility makes it an excellent choice for industries that require adaptive motor control to match diverse operational demands.
The Siemens 6SL3120-2TE21-8AD0 adheres to stringent safety and protection standards. The unit boasts an IP20/UL open-type protection rating, which provides moderate protection from external debris and accidental contact. This AC drive also features safety-integrated functionality for safety-conscious operations, rated at SIL 2 according to IEC 61508 and PL d according to EN ISO 13849-1. This ensures compliance with international safety regulations, reducing the risk of failure and accidents during operation. Additionally, its advanced safety features make it well-suited for industries where the protection of operators and machinery is critical.
This Siemens AC drive is designed to operate in various environmental conditions, with an ambient temperature range from 32 to 104°F. This adaptability allows the 6SL3120-2TE21-8AD0 to function efficiently in different industrial environments, from factories to processing plants. Its internal air-cooling system ensures that the unit remains within optimal operating temperatures, even under high loads, further extending the drive’s operational lifespan.
When purchased from MRO Electric and Supply, the Siemens 6SL3120-2TE21-8AD0 AC drive has a 2-year warranty. This warranty covers any operational issues or manufacturing defects, giving customers peace of mind and ensuring long-term reliability. In addition to the warranty, MRO Electric and Supply offers free shipping, making it even more convenient and cost-effective for businesses looking to upgrade or replace their existing motor control systems.
What is the Siemens 6SL3120-2TE21-8AD0 AC drive used for?
The Siemens 6SL3120-2TE21-8AD0 is a dual motor control AC drive for industrial applications requiring precise motor management. It is part of the SINAMICS series and can control two motors simultaneously, making it ideal for manufacturing, packaging, and material handling industries where synchronized motion is critical.
What is the significance of the double motor module design?
The double motor module design allows controlling two motors within a single compact unit, reducing hardware costs and installation space. This is especially useful in systems where two motors must work harmoniously, such as conveyor systems or machines with dual operational processes.
What voltage and power supply does this drive support?
The 6SL3120-2TE21-8AD0 operates on a DC power supply with a 510 and 720 VDC voltage range. It also requires a 24 V power supply with a 15% to +20% tolerance for its control electronics. This wide voltage range makes it versatile for different power configurations in industrial settings.
What is the rated output current and frequency?
This AC drive is rated for a 2 x 18.0 A output current, making it suitable for medium-sized motors. It supports multiple output frequencies: 650 Hz for servo control, 600 Hz for V/f (voltage/frequency) control, and 300 Hz for vector control. This range of control types provides flexibility for various motor applications.
What kind of cooling system does it use?
The Siemens 6SL3120-2TE21-8AD0 features an internal air-cooling system. This ensures the drive remains cool during operation, maintaining optimal performance and preventing overheating even in high-load environments. Internal cooling also reduces maintenance needs by eliminating external fans or complex cooling systems.
What safety standards does the driver comply with?
The drive complies with several essential safety standards, including SIL 2 (Safety Integrity Level) as per IEC 61508 and Performance Level d (PL d) according to EN ISO 13849-1. These safety standards ensure the drive can be used in applications requiring high operational safety, protecting both equipment and operators.
What is the environmental temperature range for this unit?
The 6SL3120-2TE21-8AD0 is designed to operate in ambient temperatures ranging from 32°F to 104°F (0°C to 40°C), making it adaptable to various industrial environments, including those with moderate heat or cold.
What are the physical dimensions of this drive?
This AC drive has a booksize construction with compact dimensions: a height of 14.9 inches, a width of 3.94 inches, and a depth of 10.63 inches. Its space-saving design allows for easier installation in control cabinets where space is limited.
What protection rating does this model offer?
The Siemens 6SL3120-2TE21-8AD0 has an IP20/UL Open Type protection rating. This means it offers essential protection against solid objects, like fingers or small tools, but is not protected against water or dust, making it suitable for clean, controlled environments such as industrial control rooms.
What warranty is offered by MRO Electric and Supply?
The Siemens 6SL3120-2TE21-8AD0 has a 2-year warranty when purchased from MRO Electric and Supply. MRO Electric also offers free shipping, providing additional value for customers looking to purchase this AC drive.
