6SL3246-0BA22-1PA0

2-year Warranty

Same Day Shipping

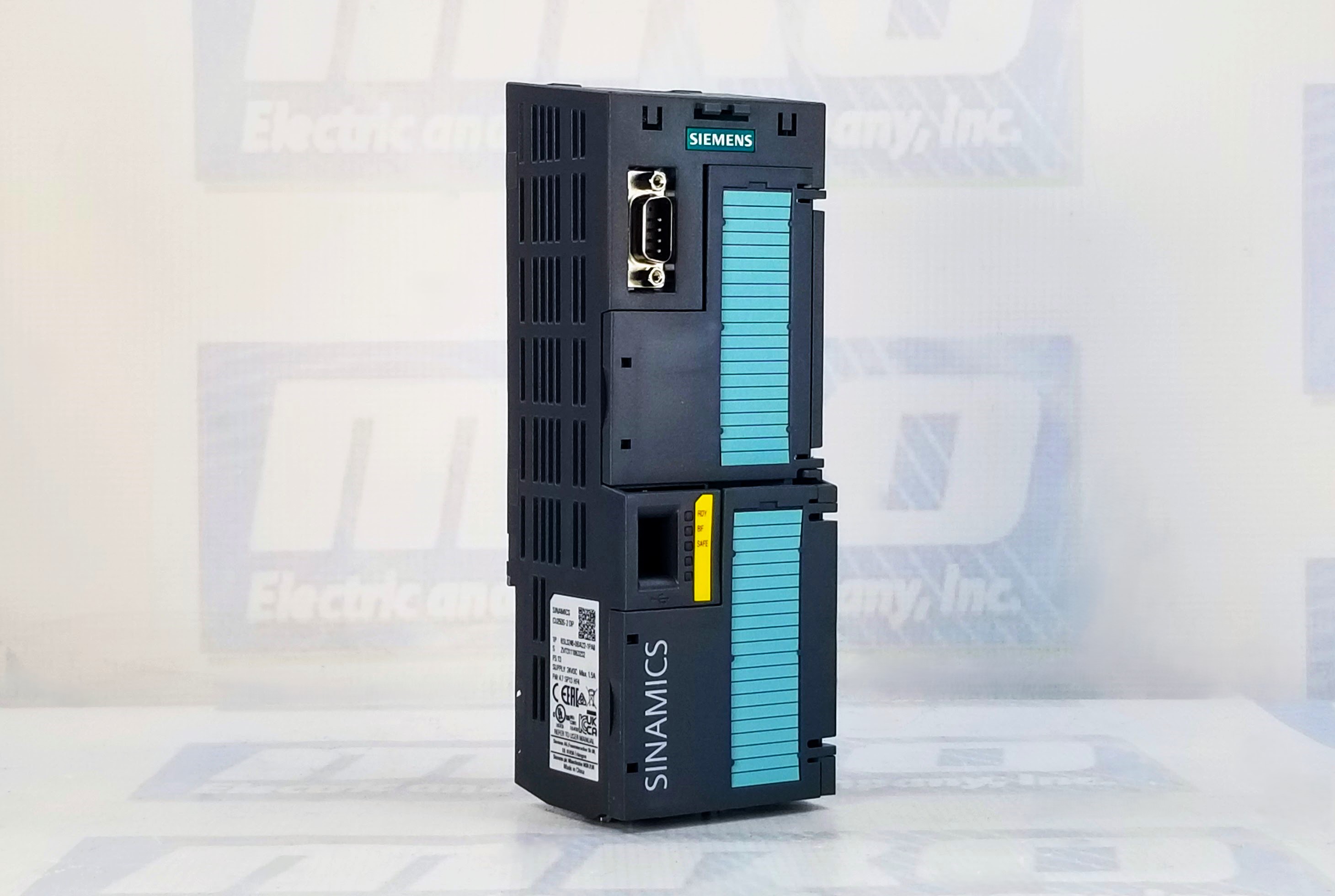

Siemens 6SL3246-0BA22-1PA0

CU250S-2 DP CONTROL UNIT

Select Condition

Refurbished

Request Quote

New

$997.00

1 in stock

Request a Quote
  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part Number6SL3246-0BA22-1PA0
ManufacturerSiemens
TypeAC Drives
Model #6SL32460BA221PA0
Warranty2 Year
Conductor cross-section0.05 ... 1.50 mm² (30 ... 16 AWG)
The Power ModuleDC 24 V
External power supplyDC 20 ... 29 V
Max. power consumption2.00 A
Power loss12.00 W
Number15
Switching level: 0→111 V
Switching level: 1→05 V
Number3 (Use of 2 × DI Standard)
Number as relay changeover contact2
Output (resistive load)DC 30 V, 1 A
DC 30 V, 1 A
Number2 (Differential input)
2 (Non-isolated output)

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 6SL3246-0BA22-1PA0 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 6SL3246-0BA22-1PA0 we also repair a wide range of other Siemens products, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 6SL3246-0BA22-1PA0, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 5lbs

Want it shipped tomorrow?

  • Order within the next 21 hours and 2 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 6SL3246-0BA22-1PA0 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Siemens 6SL3246-0BA22-1PA0 Overview

Introduction to Siemens 6SL3246-0BA22-1PA0

The Siemens 6SL3246-0BA22-1PA0 is a high-performance AC drive module designed for advanced automation applications. Built with Siemens' renowned engineering standards, this unit ensures reliable performance, precise motor control, and efficient integration into industrial systems. Backed by a 2-year warranty from MRO Electric and Supply, the 6SL3246-0BA22-1PA0 provides long-term dependability for critical operations.

Electrical Specifications

The 6SL3246-0BA22-1PA0 is powered by a DC 24V external supply, operating within a range of 20–29V DC. With a maximum power consumption of 2.00 A and a power loss rating of 12.00 W, the module is engineered for energy-efficient performance. Designed for industrial-grade requirements, it supports a conductor cross-section range of 0.05 to 1.50 mm² (30–16 AWG), making it versatile for varied installation setups.

Input and Switching Capabilities

This Siemens module supports 15 digital inputs with configurable switching levels. The 0 → 1 switching level is 11V, while the 1 → 0 switching level is 5V, ensuring fast and accurate signal response. Additionally, the unit features three dedicated input channels, two of which can be used as standard digital inputs, providing flexibility in control configurations.

Output Functions

For output management, the 6SL3246-0BA22-1PA0 is equipped with two relay changeover contacts rated at DC 30V, 1A (resistive load), ensuring reliable switching performance in demanding applications. It also includes two differential inputs and two non-isolated outputs, enhancing its ability to interface with other system components seamlessly.

Operational Benefits

The Siemens 6SL3246-0BA22-1PA0 offers multiple advantages for industrial automation, including:

  • Reliable motor control with precision switching and signaling
  • Energy efficiency with low power consumption and minimal loss
  • Flexible integration into various automation environments
  • Compact design for easy installation in control panels

Industrial Applications

The 6SL3246-0BA22-1PA0 is widely used in manufacturing, robotics, conveyor systems, and CNC applications, where accurate motor control and reliable signaling are critical. Its versatile input and output capabilities make it suitable for a wide range of automation setups.

Warranty and Availability

Available from MRO Electric and Supply, the Siemens 6SL3246-0BA22-1PA0 comes with a 2-year warranty and free immediate shipping. This ensures fast replacement options and peace of mind for engineers and facility managers who rely on continuous uptime.

FAQ for the Siemens 6SL3246-0BA22-1PA0

What is the Siemens 6SL3246-0BA22-1PA0?

It is a Siemens AC drive module designed for precise motor control and reliable integration with automation systems.

What power supply does it require?

The module requires a DC 24V external power supply, operating between 20–29V DC.

What is the maximum power consumption?

The 6SL3246-0BA22-1PA0 consumes up to 2.00 A with a power loss of 12.00 W.

How many digital inputs are supported?

The unit supports 15 digital inputs with configurable switching levels.

What are the switching thresholds?

The switching level from 0 → 1 is 11V, and from 1 → 0 is 5V.

What output features does it provide?

It includes two relay changeover contacts (DC 30V, 1A), two differential inputs, and two non-isolated outputs.

What conductor cross-section range is supported?

The unit supports 0.05 to 1.50 mm² (30–16 AWG) wiring.

What industries use this model?

It is commonly used in manufacturing, robotics, CNC machinery, and conveyor systems.

Is this part currently manufactured?

Yes, but availability may vary. It is available through MRO Electric and Supply.

What warranty is offered?

A 2-year warranty is provided, along with free shipping and immediate availability.

Siemens products are manufactured in Germany and are designed for Automotive, aerospace, power generation, and electronics usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as FANUC and Yaskawa.

Contact Us Today For More Information About the 6SL3246-0BA22-1PA0

Check out the rest of our Siemens product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like 6SL3246-0BA22-1PA0, take a look at more from our AC Drives line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our 6SL3246-0BA22-1PA0 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
