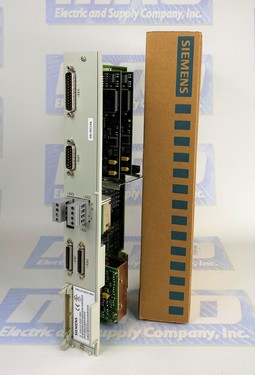

6SN1118-0DG23-0AA1

6SN1118-0DG23-0AA1

Rated 5/5 on 3 reviews

Rate this product


MANUFACTURER: Siemens

DESCRIPTION: CLOSED-LOOP PLUG-IN CONTROL UNIT

PRODUCT TYPE INFO: SIMODRIVE 611-D

11 in stock
Ships Today

Free Shipping
2 Year warranty

Categories

Part Number6SN1118-0DG23-0AA1
ManufacturerSiemens
SeriesSIMODRIVE
Model #6SN11180DG230AA1
TypeAC Drives
Warranty2 Year
Axis version1-axis
DesignDigital drives
Control UnitPerformance
Dimensions6.0" x 3.0" x 13.0"

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 6SN1118-0DG23-0AA1 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 6SN1118-0DG23-0AA1 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 6SN1118-0DG23-0AA1, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 2lbs

Want it shipped today?

  • Order within the next 3 hours and 56 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 6SN1118-0DG23-0AA1 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Additional Information

Siemens 6SN1118-0DG23-0AA1 Overview

The drive module 6SN1118-0DG23-0AA1 is manufactured by Siemens as a part of the SIMODRIVE group of modular units.  The 6SN1118-0DG23-0AA1 is a digital 1-axis control module. It is a power drive control module providing the necessary energy supply for the control boards and any connected motor. The control board and the motor inform the selection of the correct power module.

Features

The Siemens 6SN1118-0DG23-0AA1 works with the closed-loop control module.

It features a mounting slot for an optional terminal module and a slot for an optional PROFIBUS DP module. There are also front mounting slots for interfaces, terminals, switches, and equipment buses.

The Siemens 6SN1118-0DG23-0AA1 1-axis control unit is made for digital drives, and feed and main spindle drives. It is used with drive software which is downloaded in the initiation phase where the power supply is either in or in reset. It is downloaded from the SINUMERIK 840C or 840 D into the control module. It does this by way of the drive bus. This 1-axis performance module is used to operate specific motors. Which motors are this module manufactured to operate? Motors 1FT6/1FK6/1FN1/1FE1 and 1PH are the motors operated by the Siemens 6SN1118-0DG23-0AA1.

Can the Siemens 6SN1118-0DG23-0AA1 be loaded with drive software for feed drive? Yes, the 6SN1118-0DG23-0AA1 can be downloaded with drive software for not only feed drive but also main spindle drive control. Is the operator interface the same for both MSD and FD? It is the same for both.

There are two analog inputs as well as two analog outputs on the digital 1-axis control module. It also has 2 test sockets. The data and software are stored on a memory module. The memory module can be changed.

Advantages

The Siemens 6SN1118-0DG2_ has three different versions available. The first version of the 1-axis drive control module is the basic version. The basic version includes sinusoidal voltage signals. It is capable of connecting absolute encoders with the EnDat interface. The second version of the Siemens 6SN1118-0DG2_ is the same as the first with the addition of the ability to evaluate a direct position measuring system with sinusoidal current signals. The third version of the Siemens 6SN1118-0DG2_ has both the advantages of the first two versions along with the possibility of connecting absolute value encoders with the EnDat interface an SSI interface.

The Siemens digital 1-axis control module 6SN1118-0DG23-0AA1 comes with a two-year warranty.

Product Description

The 6SN1118-0DG23-0AA1 is a CLOSED-LOOP PLUG-IN CONTROL UNIT that is manufactured by Siemens. These products are manufactured in Germany and are designed for Automotive, aerospace, power generation, and electronics usage. All of the products in the simodrive line come with a 2 year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as FANUC and Yaskawa.
