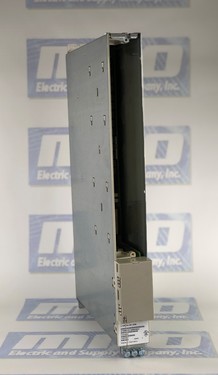

6SN1123-1AB00-0HA2

6SN1123-1AB00-0HA2

Rated 5/5 on 1 review

Rate this product


MANUFACTURER: Siemens

DESCRIPTION: 2 AXES, 8 A, INTERNAL COOLING

PRODUCT TYPE INFO: SIMODRIVE 611 POWER MODULE

19 in stock
Ships Today

Free Shipping
2 Year warranty

Categories

Part Number6SN1123-1AB00-0HA2
ManufacturerSiemens
SeriesSIMODRIVE
Model #6SN11231AB000HA2
TypeAC Drives
Warranty2 Year
Axis2 Axis
Amps8 AMP
Cooling typeInternal
Motor rated current3A
Main spindle3A

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 6SN1123-1AB00-0HA2 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 6SN1123-1AB00-0HA2 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 6SN1123-1AB00-0HA2, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 11lbs

Want it shipped today?

  • Order within the next 12 hours and 24 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 6SN1123-1AB00-0HA2 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Additional Information

Siemens 6SN1123-1AB00-0HA2 Overview

The drive module 6SN1123-1AB00-0HA2 is manufactured by the industry leader Siemens. What is the Siemens 6SN1123-1AB00-0HA2 and what can it do for your system? The 6SN1123-1AB00-0HA2 is a SIMODRIVE 611 control board module manufactured for use with the universal system.  It is a control board that is universal, and it uses communication technology within the modular SIMODRIVE 611 converter system.  It does this through the use of several unique components.  These module items include communication interfaces, motor systems, encoder systems, and option modules.

Features

This universal system includes two separate drive controls.  These drive controls are implemented on a 2-axis board.

Which operating modes can the closed-loop drive control? In operating modes that have motor frequencies that are up to 400 Hz, the first is the speed/torque set point. The second operating mode is the positioning mode. In the first, speed/torque setpoint, the board is used to control several things. It is used for closed-loop speed control, open-loop torque control, and torque reduction. In the second operating mode, positioning mode, a max of 64 (256 from SW 10.1) traversing blocks are able to be selected and executed. You can set the parameters for each traversing block.  Along with the block number, supplementary data is available.  This supplementary data includes target position, acceleration, velocity, command, and block enable circuit.

How to use the 6SN1123-1AB00-0HA2

What interfaces can be found on the board?  On the board, you will find two analog interfaces per drive (± 10 V).  This is the interface where speed and torque setpoints can be made.  Current, torque reduction or a velocity override can be entered here. A second board interface is the angular incremental encoder interface (WSG-SS).

Parameter values for incremental position reference values are entered here. These parameters are entered as input.

As for output, the parameter of actual values positions happens here for high-level control by way of the appropriate interface parameters.

Third, each of the two drives has four digital inputs as well as four digital outputs.  Here again, appropriate parameters can be set for the digital inputs and the digital outputs.  The inputs and outputs are assigned with the required control message functions done through the setting of parameters.  Each of the two drives has two analog outputs.

There are a couple of option modules available for the SIMODRIVE 611 universal system.  They are a perfect addition to the system for expansion.

The first option module is a terminal module.  The terminal module gives you an additional eight digital inputs as well as eight digital outputs.

These are necessary for selecting and starting a traversing block in the positioning mode.  The second option module is the PROFIBUS-DP module.

To accommodate the distributed concepts, the SIMODRIVE 611 universal is able to be operated as a slave on PROFIBUS -DP with this option module.

Which motors are able to be used with the SIMODRIVE 611 system? 1FK6, 1FK7, 1FT6, 1FT7 servomotors up to 140 Nm, 1FE1 permanent–magnet synchronous motors, 1PH induction motors up to 100 kW (1PH6, 1PH4, 1PH2, 1PH7, 1PH8), Induction motors without encoder, Standard 1LA induction motors up to 100 kW, 1FN linear motors, and 1FW6 built-in torque motors.

The Siemens SIMODRIVE module 6SN1123-1AB00-0HA2 comes with a two-year warranty.

Product Description

The 6SN1123-1AB00-0HA2 is a 2 AXES, 8 A, INTERNAL COOLING that is manufactured by Siemens. These products are manufactured in Germany and are designed for Automotive, aerospace, power generation, and electronics usage. All of the products in the simodrive line come with a 2 year warranty from MRO Electric. We also carry Power Supplies from other manufacturers such as FANUC and Yaskawa.
