SOLID STATE OVERLOAD RELAY 480VAC 135A
Part Number | 9065SP44 |
Manufacturer | Schneider Electric |
Type | Breakers |
Warranty | 2 Year |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 9065SP44 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 9065SP44 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 9065SP44, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty 9065SP44 for credit when ordering from MRO Electric

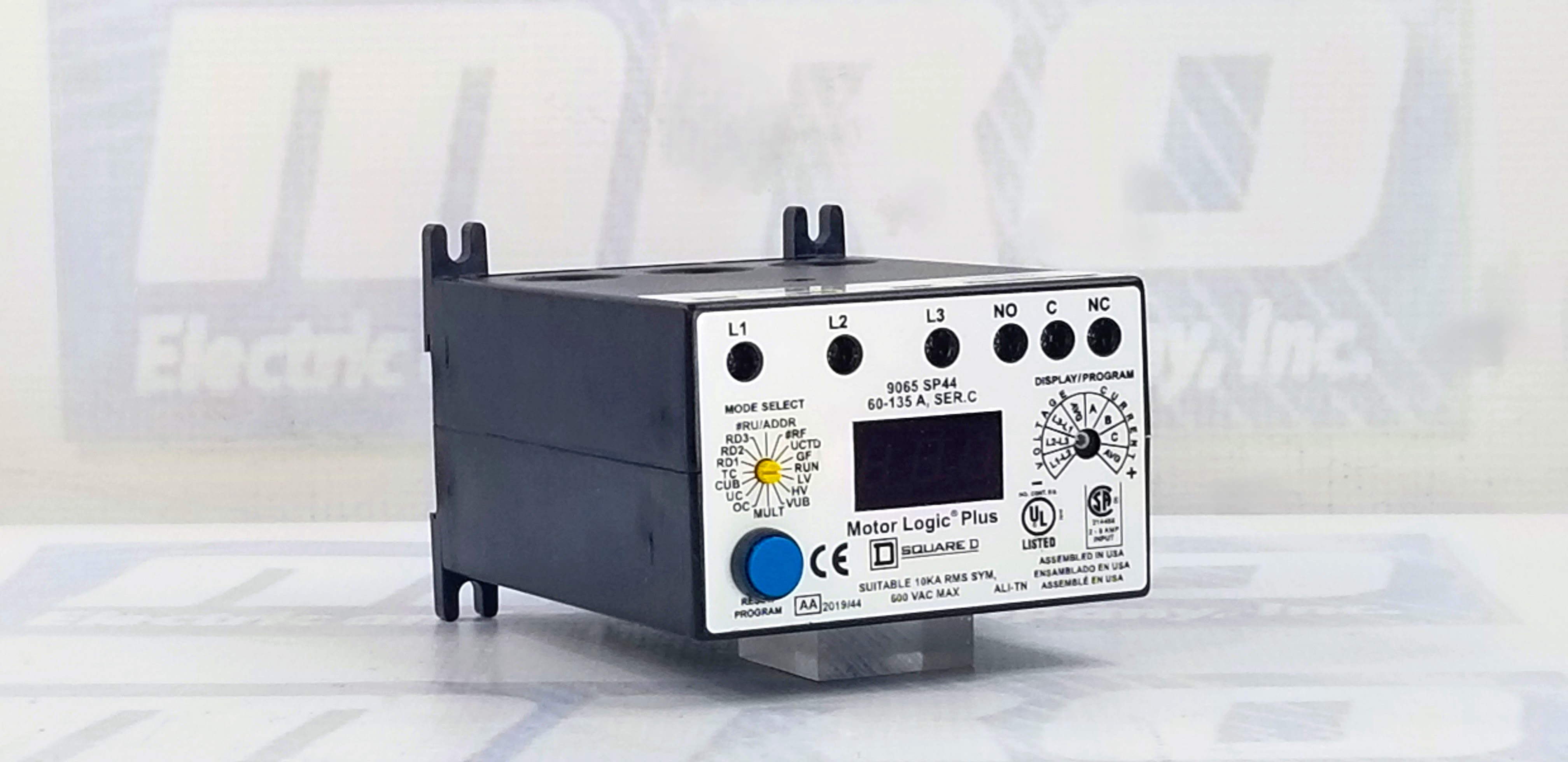

Overview of the Schneider Electric 9065SP44 Overload Relay
The Schneider Electric 9065SP44 is a high-performance, solid-state overload relay designed to deliver accurate and reliable motor protection in demanding industrial environments. As part of the Motor Logic Plus series, this device offers advanced overload detection and protection for 3-phase motors operating at 480 V AC. With a current range of 60 to 135 amps and compatibility with NEMA Size 4 motor starters, the 9065SP44 is a dependable choice for motor control panels and automation systems.
Unlike traditional thermal overload relays, the 9065SP44 utilizes solid-state technology to ensure precise trip accuracy and faster response times. This modern approach eliminates moving parts, thereby reducing wear and extending the product's lifespan. The solid state design also improves sensitivity to overload conditions, protecting motors from overheating, phase imbalances, and other damaging electrical events.
Engineered for 3-phase applications at 480 volts AC, this overload relay is well-suited for a wide range of industrial motor loads, including conveyors, pumps, compressors, and fans. With an adjustable current range of 60 to 135 amps, the 9065SP44 supports mid- to high-horsepower motors, making it ideal for manufacturing, process control, and heavy-duty automation systems.
Built for long-term durability, the Schneider 9065SP44 is compatible with standard NEMA motor starter configurations and integrates easily into new or existing panels. Its compact footprint and easy installation reduce setup time, while its rugged construction ensures continuous protection in harsh operating conditions.
The 9065SP44 solid-state overload relay is backed by a 2-year warranty from MRO Electric and Supply and is available for immediate shipping. Customers benefit from fast delivery, expert support, and the assurance that they are investing in a reliable, industrial-grade motor protection solution.
What is the function of the Schneider 9065SP44?
It protects 3-phase motors from overloads using solid-state technology.
What is the current range supported by this relay?
It supports a current range of 60 to 135 amps.
Is it compatible with 480V systems?
Yes, it is designed specifically for use in 480 VAC applications.
What type of motors is it used with?
It is designed for 3-phase motors in industrial settings.
What is the benefit of solid state over thermal overloads?
Solid-state relays offer more precise and faster protection without moving parts, thereby increasing reliability.
What starter size is the 9065SP44 compatible with?
It is compatible with NEMA Size 4 motor starters.
Can this relay be used in harsh environments?
Yes, it is built for durability in demanding industrial applications.
Is the 9065SP44 available for immediate shipping?
Yes, it is in stock and available now from MRO Electric and Supply.
What warranty comes with this product?
It includes a 2-year warranty through MRO Electric.
Is it easy to install?
Yes, it is designed for quick and straightforward integration into motor control panels.
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry Breakers from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like 9065SP44, take a look at more from our Breakers line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our 9065SP44 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
