A06B-6089-H106

A06B-6089-H106

Rated 5/5 on 10 reviews

Rate this product


MANUFACTURER: FANUC

DESCRIPTION: SERVO DRIVE MDL SVU 1-130, 130A

PRODUCT TYPE INFO: ALPHA

3 in stock
Ships Today

2 Year warranty
Part NumberA06B-6089-H106
ManufacturerFANUC
Model #A06B6089H106
TypeServo Amplifiers
Warranty2 Year
Phase3 phase
200-230 V
50/60 Hz
Rated Input27 Amp
Max output voltage230 V
Rated output current52.2 Amps
Manual NoB-65192

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed A06B-6089-H106 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this A06B-6089-H106 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty A06B-6089-H106, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 28lbs

Want it shipped today?

  • Order within the next 12 hours and 3 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty A06B-6089-H106 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Additional Information

Fanuc A06B-6089-H106 Overview

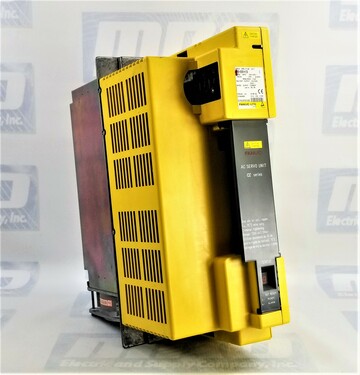

The A06B-6089-H106 is a servo amplifier produced by FANUC, a Japanese manufacturer. It is designed for use in commodity production, advanced machining, and CNC milling, and comes with a 2-year warranty. The servo amplifier has a 3-phase input and is compatible with 200-230 V and 50/60 Hz. It has a rated input of 27 Amps and a rated output current of 52.2 Amps, with a maximum output voltage of 230 V. The manual for the A06B-6089-H106 is B-65192.

Startup

The startup procedure for the servo amplifier includes checking for damage, confirming the line voltage and power requirements, connecting grounding lines, power cords, and motor power wires, and checking the settings before starting up the servo amplifier. It is important to confirm the specifications of the control motors, detectors, and servo amplifier units before beginning, as well as to check the voltage of the power source. The servo amplifier has specific power requirements, and when multiple servo motors are accelerating or decelerating simultaneously, it is important to ensure that the input voltage is above 170 VAC. It is also necessary to remove factory-installed jumpers when supplying motor power and control power separately.

Standards

In order to meet European CE marking requirements, it may be necessary to ground the motor using the accessory plate terminal. It is important to note that using more than one protection ground line with a single screw will prevent the motor from qualifying for CE marking. The servo amplifier also has a high-frequency leakage current, which may cause issues with ground fault interrupters or leakage protection relays on the power supply side. It is necessary to take measures to prevent these devices from malfunctioning due to the influence of inverters.

Switches

The servo amplifier has four channel switches that should be set before use. These switches are used to set the address, control method, and servo motor type. It is important to set these switches correctly in order to ensure the proper operation of the servo amplifier. There are also three control method switches that should be set based on the control method being used.

In addition to these switches, there are also various terminals on the servo amplifier that need to be connected properly in order for it to function correctly. These include power supply terminals, motor terminals, and input/output terminals. It is important to follow the appropriate wiring diagram and pay attention to the correct terminal designations in order to avoid damage to the servo amplifier.

Overall, the A06B-6089-H106 servo amplifier is a high-quality product designed for use in a variety of manufacturing applications. It is important to follow the proper startup procedure and pay attention to the various switches and terminals in order to ensure proper operation and avoid any issues.

Product Description

The A06B-6089-H106 is a SERVO DRIVE MDL SVU 1-130, 130A that is manufactured by FANUC. These products are manufactured in Japan and are designed for Commodity production, advanced machining, and CNC milling usage. All of the products come with a 2 year warranty from MRO Electric. We also carry Servo Amplifiers from other manufacturers such as Siemens and Control Techniques.
