A06B-6140-H030

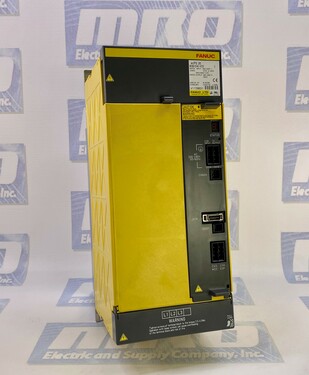

Fanuc A06B-6140-H030 Overview

The servo amplifier A06B-6140-H030 is a part of the αi series of servo amps manufactured by Fanuc. The Fanuc A06B-6140-H030 is an αi PS 30 200 V input servo amplifier.

Features

The main circuit power supply for the αi PS 30 is 200 to 240VAC +10%,-15%,3φ 50/60Hz, ±1Hz. The control power supply for this module is 200 to 240VAC +10%,-15%,1φ 50/60Hz, ±1Hz. The main circuit equipment power capacity is 44kVA, while the control power equipment capacity for the αi PS 30 is 0.7kVA. The rated output capacity for this Fanuc unit is 35kW. The A06B-6140-H030 uses regenerative control, with a rated output capacity of 30kW for the motor. The max permissible output for the αi PS 30 is 64kW, with a peak output max of 85kW. For voltages that vary from the ones listed, a power transformer may be employed.

Advantages

The aim of the design for the servo amp modules is to make them more compact. The Fanuc αi series servo amplified A06B-6140-H030 utilizes a modular design for a couple of reasons.In this way the unit is thinner, saving you space. The design is also an energy-saving effort in that it puts out less heat, saving energy. The depth of the unit is a consideration, and the fin depth has been reduced to 100 mm. The reduction is a result of a low-loss power device and a high- efficient radiator. Saving space by offering a 30 % reduction in width is another advantage of the αi series of servo amp A06B-6140-H030. To reduce the protrusion of the cable into the control board, the shape of the cable connector is improved.

An effort has been made to reduce cabling for these units. Amplifiers are easily connected utilizing a single cable.  No external ground connection is required as the ground connection from the motor to the flange is included. However, on the control board, you do have to connect the top of the flange to the system ground.

How to use a A06B-6140-H030

Where are the connectors attached? The connectors affix to input power lines and motor power lines.

In order to improve maintenance on the Fanuc servo amp αi PS 30 series the fan is now easily accessible and can be replaced swiftly, saving time. The connectors easily attaching to input power lines and motor power lines also save maintenance time. One standard item on the αi PS 30 servo unit is the backup capacitor in the Absolute Pulse coder that is built into the unit. How does the built-in capacitor benefit you? It enables absolute position detection operation. It detects for about 10 minutes so there is no need for reference position return operation after the servo amp or the feedback cable replacement.

The Fanuc servo amplifier A06B-6140-H030 comes with a two-year warranty.

Product Description

The A06B-6140-H030 is a MDL AiPS- 30 that is manufactured by FANUC. These products are manufactured in Japan and are designed for Commodity production, advanced machining, and CNC milling usage. All of the products come with a 2 year warranty from MRO Electric. We also carry Power Supplies from other manufacturers such as Siemens and Control Techniques.
