A06B-6240-H209

2-year Warranty

Same Day Shipping

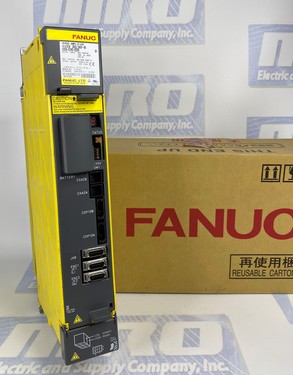

FANUC A06B-6240-H209

AISV 80/80 SERVO AMP MODULE

5/5
3 ratings

Select Condition

Refurbished

Request Quote

New

1 in stock

$4,997.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part NumberA06B-6240-H209
ManufacturerFANUC
TypeServo Amplifiers
Model #A06B6240H209
Warranty2 Year
Rated input283-339 V
Input amps39 A @ 283 V
Max V Ouput240 V
Rated output200 V
Phase3-Phase
Output Hz550 hz
ManualB-65412

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed A06B-6240-H209 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this A06B-6240-H209 we also repair a wide range of other FANUC products, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty A06B-6240-H209, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 11lbs

Want it shipped tomorrow?

  • Order within the next 23 hours and 58 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty A06B-6240-H209 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

FANUC A06B-6240-H209 Overview

FANUC A06B-6240-H209

The FANUC A06B-6240-H209, a prominent member of the Servo Amplifiers family, represents precision and control in industrial automation. This Servo Amplifier, meticulously crafted by FANUC, stands as a testament to its commitment to delivering cutting-edge solutions for the manufacturing landscape.

Electrical Characteristics

The A06B-6240-H209 operates on a robust three-phase system, accommodating a rated input ranging from 283 to 339 V. Drawing 39 A at 283 V, this Servo Amplifier exhibits a remarkable balance between power consumption and performance. The rated output is a stable 200 V, ensuring consistent power delivery to meet the demands of industrial applications.

Output Performance

With a maximum output voltage of 240 V, the A06B-6240-H209 is designed to provide a reliable and efficient power supply to the connected systems. The output frequency of 550 Hz attests to its capability to handle rapid and precise movements, crucial in CNC (Computer Numerical Control) environments where precision is paramount.

Dual Axis Servo Drive

This Servo Amplifier belongs to the AISV 80/80 series, specifically tailored for the 30i-B Series CNC systems. As a dual-axis Servo Drive model, designated AISV 80/80, it signifies a versatile solution capable of controlling two independent axes simultaneously. This feature is instrumental in scenarios where synchronized and coordinated motion control is essential for optimal system performance.

Documentation

For comprehensive guidance on installation, configuration, and maintenance, the A06B-6240-H209 comes with a detailed manual labeled B-65412. This manual serves as a valuable resource for technicians and engineers, offering insights into harnessing the full potential of this Servo Amplifier within CNC setups.

Reliability and CNC Compatibility

Manufactured by FANUC, a globally recognized leader in CNC systems, the A06B-6240-H209 upholds the brand's legacy of reliability and precision. Tailored for CNC applications, this Servo Amplifier is well-suited for industries where high-performance motion control is imperative for achieving intricate and accurate machining processes.

Key Specifications

  • Part Number: A06B-6240-H209
  • Manufacturer: FANUC
  • Type: Servo Amplifiers
  • Model #: A06B6240H209

In conclusion, the FANUC A06B-6240-H209 stands as a formidable component in the realm of Servo Amplifiers. Its dual-axis capability, robust electrical characteristics, and compatibility with CNC systems position it as a go-to solution for industries demanding uncompromising precision, reliability, and performance in their motion control applications. Whether deployed in manufacturing lines, machining centers, or other CNC-driven environments, the A06B-6240-H209 is poised to elevate the efficiency and accuracy of automated processes.

FAQ for FANUC A06B-6240-H209 Servo Amplifier

What is the FANUC A06B-6240-H209 used for?

The FANUC A06B-6240-H209 Servo Amplifier is used in CNC (Computer Numerical Control) systems, specifically in the 30i-B Series, to provide precise and efficient motion control for industrial automation. Its dual-axis design lets it control two independent motion axes simultaneously, making it ideal for applications requiring synchronized and accurate machining processes.

What is the input voltage range for this Servo Amplifier?

The A06B-6240-H209 operates on a three-phase input voltage, ranging from 283 to 339 V. It draws a current of 39 A at the minimum input voltage of 283 V.

What is the rated output of the A06B-6240-H209?

The Servo Amplifier provides a stable rated output of 200 V and a maximum output voltage of 240 V. This ensures consistent power delivery suitable for high-performance CNC applications.

What makes the A06B-6240-H209 suitable for CNC environments?

  • Dual Axis Control: It belongs to the AISV 80/80 series, allowing simultaneous control of two axes.
  • High Output Frequency: Its output frequency of 550 Hz supports rapid and precise movements critical in CNC systems.
  • CNC Compatibility: Tailored for the 30i-B Series CNC systems, it integrates seamlessly into demanding machining setups.

What documentation is available for installation and maintenance?

The A06B-6240-H209 comes with a detailed manual labeled B-65412. This manual provides comprehensive instructions on installation, configuration, and maintenance, making it a valuable resource for engineers and technicians.

How does this model ensure reliability?

Manufactured by FANUC, a globally recognized leader in CNC and automation systems, the A06B-6240-H209 upholds high reliability, precision, and durability standards. Its design and build quality are optimized for industrial environments where consistent performance is crucial.

What are the key specifications of this Servo Amplifier?

  • Part Number: A06B-6240-H209
  • Manufacturer: FANUC
  • Type: Servo Amplifiers
  • Model: A06B6240H209
  • Series: AISV 80/80
  • Compatibility: 30i-B Series CNC systems
  • Input Voltage: 283–339 V (Three-phase)
  • Output Voltage: Rated 200 V, Maximum 240 V
  • Output Frequency: 550 Hz

Can this Servo Amplifier handle high-speed operations?

Yes, the high output frequency of 550 Hz ensures the A06B-6240-H209 can handle high-speed operations precisely, making it ideal for applications requiring rapid and accurate movements.

Is the A06B-6240-H209 compatible with other CNC systems?

While it is specifically tailored for the 30i-B Series CNC systems, its robust design and standard output parameters may make it compatible with other FANUC CNC systems. For detailed compatibility information, consult the manual or FANUC support.

Why choose FANUC A06B-6240-H209 for industrial automation?

This Servo Amplifier offers:

  • Dual-axis control for versatile operations.
  • High reliability from a trusted brand in CNC systems.
  • Seamless integration into CNC environments.
  • Detailed documentation for ease of use. These features make it an excellent choice for achieving precision and efficiency in manufacturing and automation processes.

FANUC products are manufactured in Japan and are designed for Commodity production, advanced machining, and CNC milling usage. They come with a 2-year warranty from MRO Electric. We also carry Servo Amplifiers from other manufacturers such as Siemens and Control Techniques.
