ABE7B20MRM20

ABE7B20MRM20

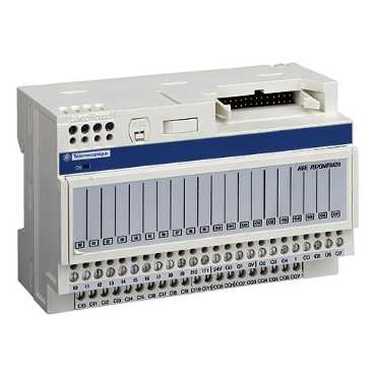

Connection Sub-Base Abe7 - For Twido Modular Base - 12 Inputs 8 Outputs
Available

Free Shipping
2 Year warranty

Categories

Part NumberABE7B20MRM20
ManufacturerSchneider Electric
SeriesModicon Communication
Model #ABE7B20MRM20
TypePLC
Warranty2 Year
Tightening torque0.6 N.m (withflat Ø 3.5 mm
Range of productAdvantys Telefast ABE7
Product or component typeDiscrete I/O sub-base
[Us] rated supply voltage24 V DC (sensor/controller side)
24 V DC (controller side)
Number of channels20
Number of terminal per channel2
Connections - terminalsScrew type terminals, clamping capacity: 2 x 0.2...2 x 2.5 mm² AWG 28...16 solid
Screw type terminals, clamping capacity: 2 x 0.09...2 x 0.75 mm² AWG 28...20 flexible with cable end
Screw type terminals, clamping capacity: 1 x 0.14...1 x 2.5 mm² AWG 26...14 flexible without cable end
Screw type terminals, clamping capacity: 1 x 0.14...1 x 2.5 mm² AWG 26...12 solid
Screw type terminals, clamping capacity: 1 x 0.09...1 x 1.5 mm² AWG 28...16 flexible with cable end
Connector destinationTwido programmable controller
Supply voltage limits19...30 V DC conforming to IEC 61131-2 (sensor/controller side)
19...30 V DC conforming to IEC 61131-2 (controller side)
Discrete input number12
Discrete input logicSink
Discrete output number6 relay output(s), 3000 mA
2 solid state output(s), 2000 mAat source
Discrete output voltage5...30 V DC relay output(s)
24 V DC solid state output(s)
110...250 V AC relay output(s)
Discrete output function1 NO
Product compatibilityTWDLMDA20DTK
TWDLMDA40DTK
Status LED1 LED for power ON
Polarity distribution1 common/6 channels for relay output
1 common/2 channels for solid state output
1 common/12 channels for input
Short circuit protection2 A internal fuse, 5 x 20 mm, fast blow (controller side)
Connector typeHE-10
Pin number26
Fixing modeBy screws
By clips on 35 mm symmetrical DIN rail conforming to IEC 60715
Supply current<= 2 A
Current per channel0.009 A relay output(s)
0.0045 A solid state output(s)
Switched current3000 mA for relay output
2000 mA for solid state output
15 mA for input
Current per output common4 A solid state output
10 A relay output
Voltage drop on power supply fuse0.3 V
Current state 0 guaranteed0.4 mA solid state output(s) (sensor/controller side)
Voltage state 0 guaranteed2 V relay output(s) (sensor/controller side)
10 V solid state output(s) (sensor/controller side)
Current state 1 guaranteed5.5 mA solid state output(s) (sensor/controller side)
Voltage state1 guaranteed16.8 V relay output(s) (sensor/controller side)
16 V solid state output(s) (sensor/controller side)
Electrical durability500000 cycles, maximum switching current: 500 mA DC-13 relay output(s) (preactuator side)
500000 cycles, maximum switching current: 400 mA AC-15 relay output(s) (preactuator side)
500000 cycles, maximum switching current: 3000 mA DC-12 relay output(s) (preactuator side)
500000 cycles, maximum switching current: 2000 mA DC-13 solid state output(s) (preactuator side)
500000 cycles, maximum switching current: 2000 mA DC-12 solid state output(s) (preactuator side)
500000 cycles, maximum switching current: 2000 mA AC-12 relay output(s) (preactuator side)
Minimum switching current100 mA relay output(s)
1 mA solid state output(s)
Response time<= 5 ms from state 0 to 1 relay output(s)
<= 2.5 ms from state 1 to 0 relay output(s)
<= 0.4 ms from state 1 to 0 solid state output(s)
<= 0.01 ms from state 0 to 1 solid state output(s)
[Uimp] rated impulse withstand voltage2.5 kV solid state output(s)
6 kV relay output(s)
Switching frequency300 Hz solid state
20 Hz relay
Mechanical durability20000000 cycles at 20 °C
[Ui] rated insulation voltage300 V between coil circuit/contact circuits conforming to IEC 60947-1
2000 V between terminals/mounting rails
Overvoltage categoryII conforming to IEC 60664-1
