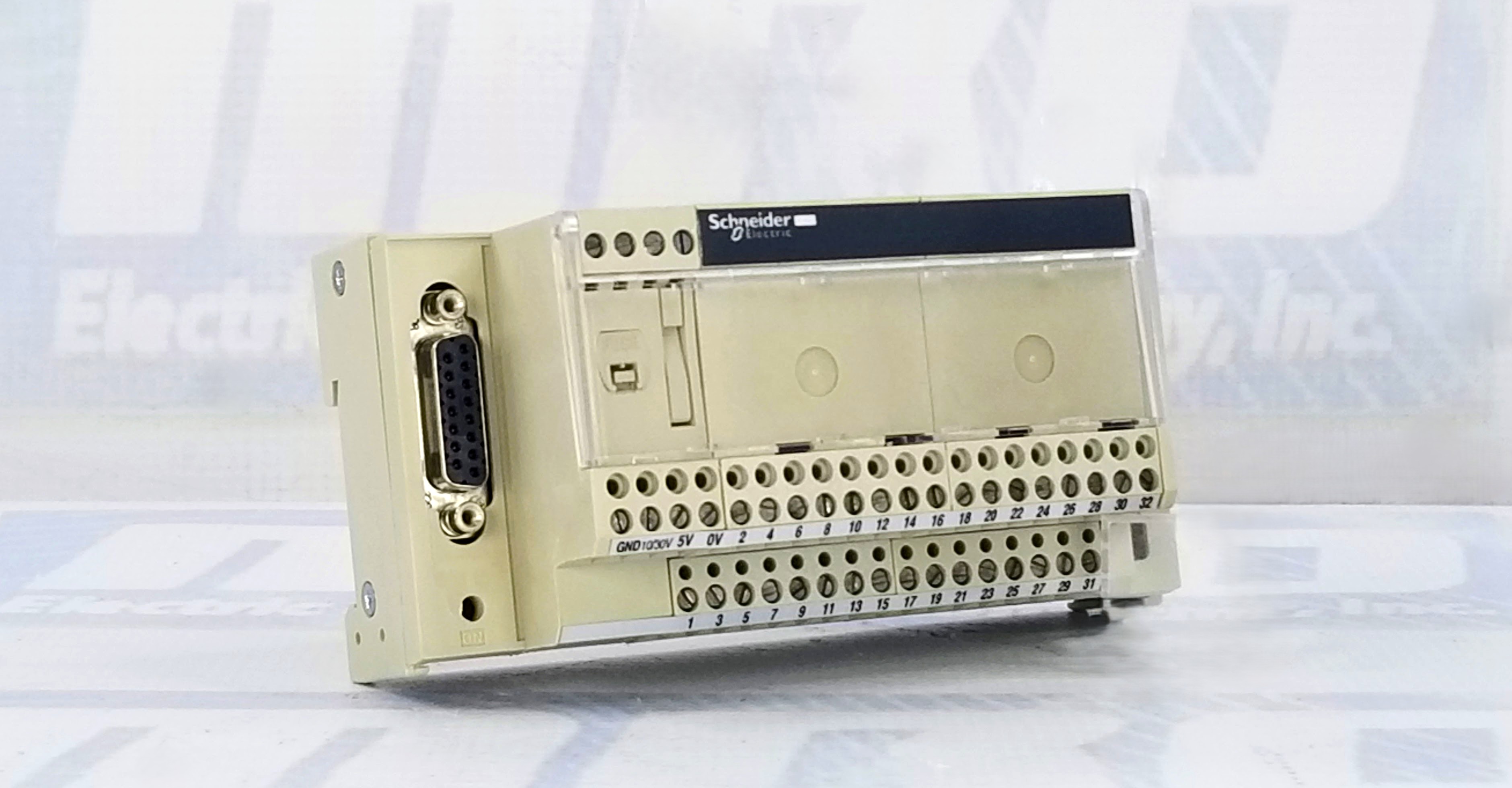

CONNECTION SUB-BASE ABE7 - FOR PARALLEL OUTPUT ABSOLUTE ENCODER CONNECTION
| Part Number | ABE7CPA11 |
| Manufacturer | Schneider Electric |
| Type | Accessories |
| Warranty | 2 Year |
| Tightening torque | 0.6 N.m (withflat Ø 3.5 mm |
| Range of product | Advantys Telefast ABE7 |
| Product or component type | Connection sub-base for counter and analog channels |
| Number of channels | 1 |
| Function of module | Parallel output absolute encoder connection , compatible with Premium |
| Product compatibility | TSXCTY4A compatible with Premium |
| TSXCTY2A compatible with Premium | |
| TSXCAY41 compatible with Premium | |
| TSXCAY21 compatible with Premium | |
| Control circuit voltage | 5 V DC |
| 24 V DC | |
| Connection to PLC | SUB-D 15 |
| Fixing mode | By screws on solid plate with fixing kit |
| By clips on 35 mm symmetrical DIN rail | |
| [Ui] rated insulation voltage | 2000 V between terminals/mounting rails |
| Installation category | II conforming to IEC 60664-1 |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed ABE7CPA11 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this ABE7CPA11 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty ABE7CPA11, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty ABE7CPA11 for credit when ordering from MRO Electric
The Schneider Electric ABE7CPA11 is a reliable and efficient connection sub-base designed explicitly for use with parallel output absolute encoder systems. As part of Schneider Electric's respected ABE7 line, this module simplifies the interface between field devices and automation systems, improving installation speed and ensuring long-term performance in demanding industrial environments.
The ABE7CPA11 serves as a crucial component in integrating absolute encoders with parallel outputs, providing a clean and organized connection point. It allows signal consistency and minimizes wiring errors, which are critical for maintaining precise position feedback in automation systems. This sub-base ensures that encoder signals are transmitted accurately to the controller for optimal machine performance.
Built for rugged industrial applications, the ABE7CPA11 is constructed with high-quality materials to withstand vibration, temperature changes, and electrical noise. Its compact design allows for easy installation in control cabinets or on DIN rails, helping system integrators save time and space without sacrificing performance or safety.
The ABE7CPA11 is compatible with a wide range of Schneider Electric encoders and automation platforms, making it a versatile choice for OEMs, system integrators, and maintenance teams. Whether you are upgrading an existing setup or building a new one, this connection sub-base ensures flexible and future-proof installations.
MRO Electric and Supply offers the Schneider Electric ABE7CPA11 with immediate availability and a 2-year warranty, providing peace of mind and fast delivery for urgent replacement needs or planned upgrades. Trust MRO's proven reputation for high-quality automation components and reliable customer service.
What is the primary function of the Schneider Electric ABE7CPA11?
It acts as a connection sub-base for interfacing parallel output absolute encoders with control systems.
Is the ABE7CPA11 compatible with all Schneider Electric encoders?
It is designed for compatibility with many Schneider Electric absolute encoders, especially those using parallel output.
How is the ABE7CPA11 mounted?
It can be easily mounted on DIN rails for convenient installation in standard control panels.
Does this sub-base reduce wiring complexity?
Yes, it simplifies encoder wiring by consolidating connections into a single, organized sub-base.
What voltage range does the ABE7CPA11 support?
Voltage handling depends on the connected encoder and system, but the unit itself supports typical automation voltage levels.
Is it suitable for harsh industrial environments?
Yes, it is designed for industrial reliability, offering resistance to vibration, dust, and electrical interference.
What industries commonly use this product?
It's widely used in manufacturing, packaging, materials handling, and any system requiring precise motion control.
Can it be used in retrofit applications?
Its compatibility and standard form factor make it ideal for both new and retrofit installations.
Is technical support available through MRO Electric?
Yes, MRO Electric offers customer support to assist with product selection and troubleshooting.
How quickly can I get the ABE7CPA11?
It is available immediately from MRO Electric with fast shipping and a 2-year warranty.
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry Accessories from other manufacturers such as Modicon and ABB.
