ABE7CPA31

2-year Warranty

Same Day Shipping

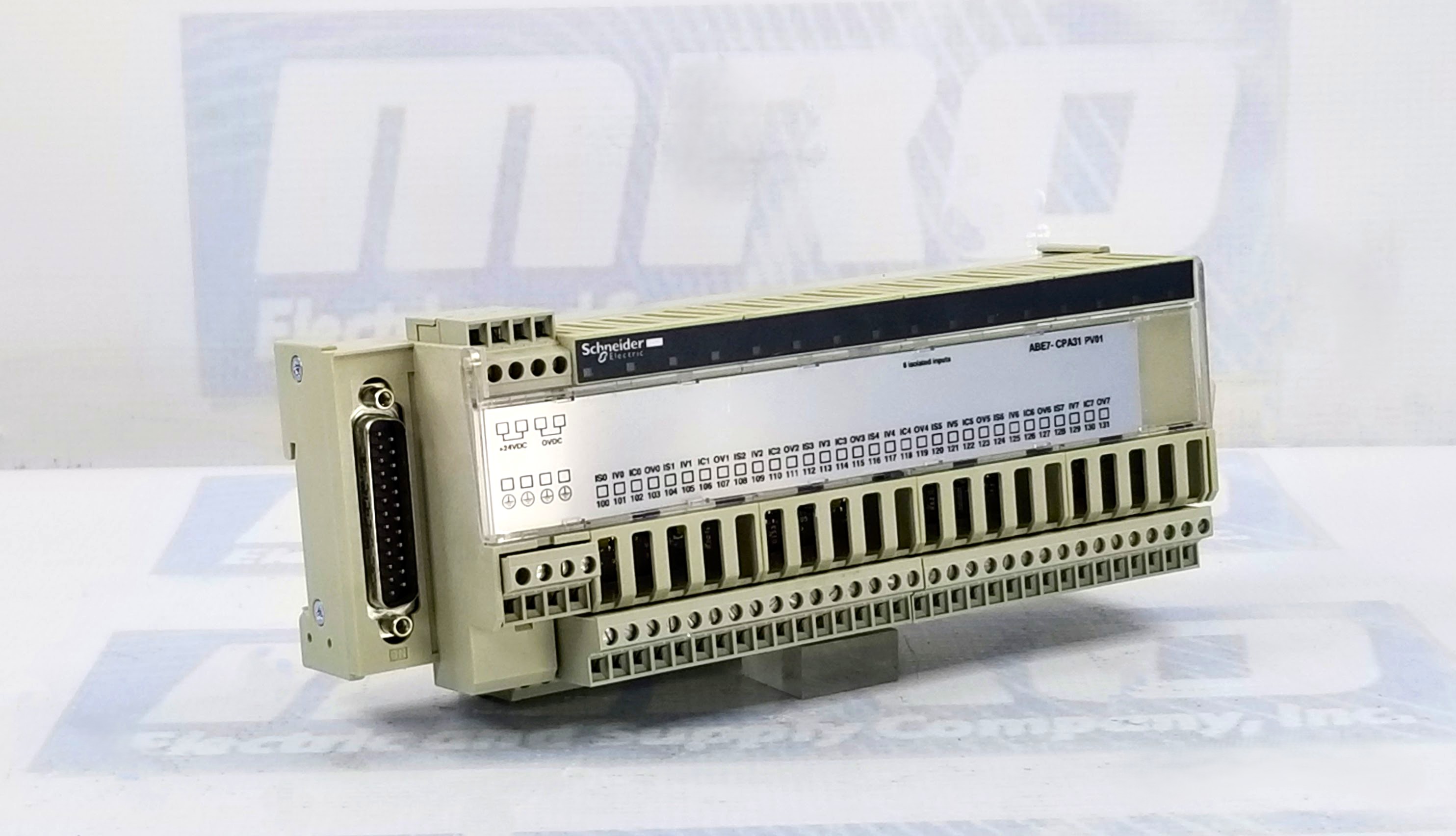

Schneider Electric ABE7CPA31

CONNECTION SUB-BASE ABE7 - FOR DISTRIBUTION OF 8 ANALOG INPUT CHANNELS

Available


Free Shipping

2 Year warranty

Part NumberABE7CPA31
ManufacturerSchneider Electric
TypeAccessories
Warranty2 Year
Tightening torque0.6 N.m (withflat Ø 3.5 mm
Range of productAdvantys Telefast ABE7
Product or component typeConnection sub-base for counter and analogue channels
Number of channels8
Function of moduleIsolated analogue input , compatible with Premium
Product compatibilityTSXAEY810 compatible with Premium
Control circuit voltage24 V DC
Connection to PLCSUB-D 25
Fixing modeBy screws on solid plate with fixing kit
By clips on 35 mm symmetrical DIN rail
[Ui] rated insulation voltage2000 V between terminals/mounting rails
Installation categoryII conforming to IEC 60664-1

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed ABE7CPA31 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this ABE7CPA31 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty ABE7CPA31, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 2lbs

Want it shipped tomorrow?

  • Order within the next 18 hours and 24 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty ABE7CPA31 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric ABE7CPA31 Overview

Schneider Electric ABE7CPA31 – High-Performance Connection Sub-Base for Isolated Analog Inputs

Now Available from MRO Electric with Free Shipping and 2-Year Warranty

The Schneider Electric ABE7CPA31 is a robust and versatile connection sub-base designed for counter and analog channels, making it an ideal accessory for complex industrial automation systems. As part of the Advantys Telefast ABE7 product range, this model delivers streamlined connectivity, high insulation protection, and compatibility with Premium automation platforms. Whether building a new setup or upgrading an existing system, the ABE7CPA31 ensures simplified wiring and fast integration of analog inputs with your PLC.

Isolated Analog Input Performance

This sub-base supports eight isolated analog input channels, allowing precise, low-noise signal acquisition. Its control circuit voltage of 24 VDC delivers stable performance in high-demand industrial environments. It is fully compatible with TSXAEY810 modules and optimized for use with Schneider's Premium PLC systems, making it a reliable addition to your control architecture.

Rugged and Flexible Installation

Engineered for durability and ease of use, the ABE7CPA31 can be mounted using screw fixtures on solid plates or by clipping onto a 35 mm symmetrical DIN rail. The flexibility in fixing modes ensures that it can adapt to various panel configurations. With a tightening torque of 0.6 N·m, the hardware stays secure, even under vibration or frequent access.

Enhanced Electrical Protection

The ABE7CPA31 offers a rated insulation voltage of 2000 V between terminals and mounting rails, ensuring enhanced safety and compliance with IEC 60664-1, Installation Category II standards. This level of protection makes it suitable for critical control systems where signal integrity and operator safety are paramount.

Seamless PLC Connectivity

Featuring a Sub-D 25 connector, the ABE7CPA31 provides fast and efficient communication with your PLC, reducing installation time and minimizing wiring errors. The connection type enhances reliability and simplifies diagnostics in multi-channel analog environments.

Your Trusted Source – MRO Electric

At MRO Electric and Supply, the ABE7CPA31 is in stock and ships free, with a 2-year warranty included. We ensure fast delivery and expert support so you can keep your automation systems running smoothly with minimal downtime.

Key Features:

  • Part Number: ABE7CPA31
  • Manufacturer: Schneider Electric
  • Product Type: Connection Sub-base for Counter and Analog Channels
  • Voltage: 24 V DC
  • Number of Channels: 8 (Isolated Analog Input)
  • Connection to PLC: Sub-D 25
  • Rated Insulation Voltage: 2000 V
  • Mounting: Screw mount or 35 mm DIN rail
  • Product Compatibility: TSXAEY810, Premium PLCs
  • Torque: 0.6 N·m (with Ø 3.5 mm flat screwdriver)
  • Warranty: 2 years from MRO Electric
  • Availability: In stock with free shipping

Upgrade your automation system with the Schneider Electric ABE7CPA31 – available now from MRO Electric, your reliable source for industrial control components.

10 FAQs for the ABE7CPA31

What does the ABE7CPA31 do?

The ABE7CPA31 is a connection sub-base that provides isolated analog input connectivity between field devices and a PLC.

How many input channels does it support?

It supports eight analog input channels with isolation to enhance signal clarity and system reliability.

What voltage does it operate on?

The control circuit voltage for this unit is 24 VDC.

Is it compatible with Premium PLCs?

It is compatible with Schneider Electric Premium platforms, including modules like the TSXAEY810.

What kind of connector is used for PLC communication?

It uses a Sub-D 25 connector for direct and efficient PLC connection.

What mounting options are available?

You can mount it using screws on a solid plate with a fixing kit or by clips on a 35 mm symmetrical DIN rail.

What is the insulation voltage rating?

The rated insulation voltage is 2000 V between terminals and mounting rails.

What kind of torque is required for secure installation?

The recommended tightening torque is 0.6 N·m using a flat Ø 3.5 mm tool.

Is this product certified to any safety standards?

It conforms to IEC 60664-1 standards, Installation Category II.

Is it available from MRO Electric?

It's in stock and ships immediately from MRO Electric with a 2-year warranty and free shipping.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry Accessories from other manufacturers such as Modicon and ABB.
