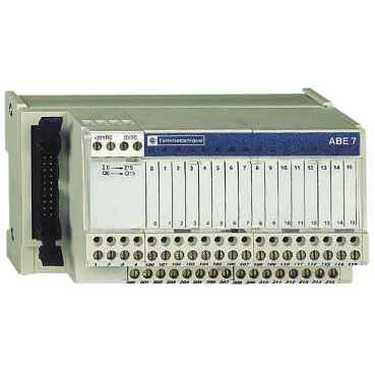

Schneider Electric ABE7H16R11

PASSIVE CONNECTION SUB-BASE ABE7 - 16 INPUTS OR OUTPUTS - LED

Select Condition

Refurbished

Request Quote

New

$217.00

1 in stock

Request a Quote
  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part NumberABE7H16R11
ManufacturerSchneider Electric
TypeAccessories
Warranty2 Year
Width4.92 in (125 mm)
Range of productAdvantys Telefast ABE7
Product or component typePassive discrete I/O sub-base
Sub-base typeI/O sub-base
[Us] rated supply voltage19...30 V conforming to IEC 61131-2
Number of channels16
Number of terminal per channel1
Supply circuit typeDC
Number of horizontal rows1
Status LED1 LED per channel, green channel status
1 LED, green power ON
Polarity distributionNo
Short circuit protection2 A internal fuse, 5 x 20 mm, fast blow (PLC end)
Connector typeHE-10
Pin number20 pins
Fixing modeBy clips on 35 mm symmetrical DIN rail
By screws on solid plate with fixing kit
Supply current<= 1.8 A
Current per channel<= 0.5 A
Current per output common<= 1.8 A
Voltage drop on power supply fuse0.3 V
[Ui] rated insulation voltage2000 V
Installation categoryII conforming to IEC 60664-1
Tightening torque5.31 lbf.in (0.6 N.m) (with flat Ø 3.5 mm)

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed ABE7H16R11 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this ABE7H16R11 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty ABE7H16R11, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 5lbs

Want it shipped tomorrow?

  • Order within the next 17 hours and 43 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty ABE7H16R11 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric ABE7H16R11 Overview

Schneider Electric ABE7H16R11 I/O Sub-Base Overview

The Schneider Electric ABE7H16R11 is a passive discrete I/O sub-base designed for use with the Advantys Telefast ABE7 range. With support for 16 channels, this compact and efficient module simplifies wiring between programmable logic controllers (PLCs) and field devices. It is built for DC supply circuits and integrates status LEDs for straightforward diagnostics.

Versatile and Compact Discrete I/O Sub-Base

The ABE7H16R11 is engineered to support high-density wiring solutions in compact control systems. Measuring just 4.92 inches (125 mm) in width and designed for DIN rail or screw mounting, this I/O sub-base offers installation flexibility for both OEM and retrofit applications. Its HE-10, 20-pin connector ensures secure and reliable PLC interfacing.

Status Indicators and Channel Control

This module features 1 green LED per channel for real-time signal monitoring and a green power LED to indicate module readiness. These visual indicators help reduce downtime and simplify troubleshooting, making it easier for technicians to manage I/O activity across all 16 channels.

Built-in Protection and High Performance

Equipped with a 2 A fast-blow fuse (5 x 20 mm) on the PLC side, the ABE7H16R11 offers short-circuit protection and circuit integrity. It supports up to 0.5 A per channel, with a maximum of 1.8 A supply current and 1.8 A per output common, ensuring efficient power distribution while maintaining system safety.

Industry Standard Compliance

Compliant with IEC 61131-2 and IEC 60664-1, this sub-base meets industry expectations for voltage, insulation, and safety. It operates on a 19–30 V DC supply, features a rated insulation voltage of 2000 V, and belongs to Installation Category II, making it suitable for a wide range of industrial automation environments.

In Stock with 2-Year Warranty

MRO Electric and Supply offers the Schneider Electric ABE7H16R11 with immediate availability and a 2-year warranty, ensuring quick delivery and reliable support. As a trusted distributor of Schneider Electric parts, MRO Electric helps you maintain system uptime with fast shipping and expert service.

Frequently Asked Questions

What is the Schneider Electric ABE7H16R11 used for?
It is a passive discrete I/O sub-base used to simplify wiring between PLCs and field devices in industrial automation.

How many channels does it support?
The module supports 16 channels, with 1 terminal per channel.

What kind of voltage does it require?
It operates on a 19–30 V DC supply, conforming to IEC 61131-2.

What type of protection does it offer?
It includes a 2 A fast-blow fuse (PLC end) for short-circuit protection.

Is it DIN rail mountable?
Yes, it can be mounted via DIN rail clips or screws with a fixing kit.

What is the connector type?
The module uses an HE-10 connector with 20 pins for secure connections.

Are there built-in status LEDs?
Yes, it has 1 green LED per channel and 1 green LED for power ON.

What is the rated insulation voltage?
It offers a 2000 V rated insulation voltage, ensuring safe and reliable performance.

What is the tightening torque specification?
Tightening torque is 0.6 N·m (5.31 lbf·in) using a flat Ø 3.5 mm screwdriver.

Is it available now?
Yes, the ABE7H16R11 is available immediately from MRO Electric with a 2-year warranty.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry Accessories from other manufacturers such as Modicon and ABB.
