ABE7H16S43

2-year Warranty

Same Day Shipping

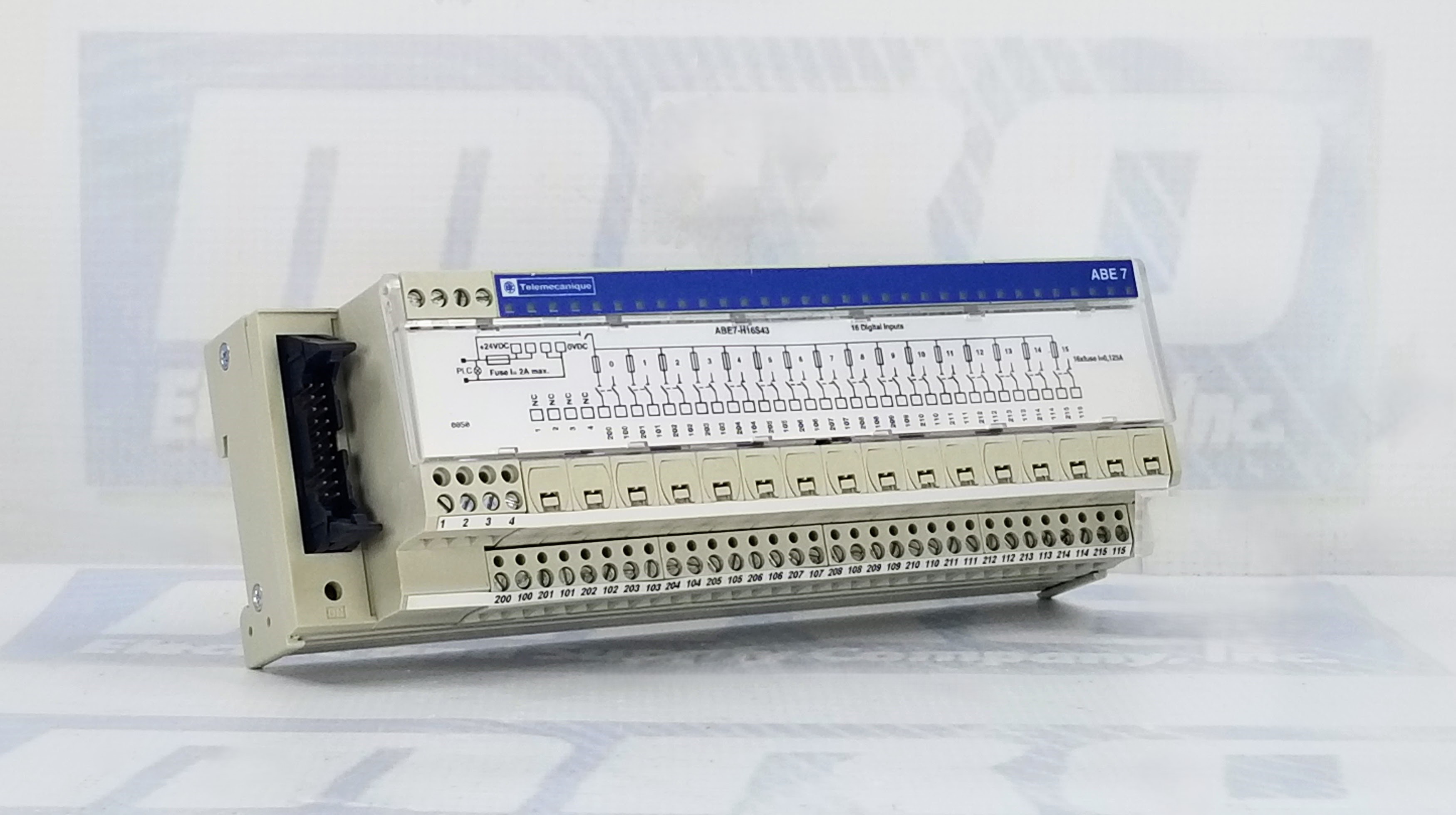

Schneider Electric ABE7H16S43

PASSIVE CONNECTION SUB-BASE ABE7 - 16 INPUTS - FUSES - LED - ISOLATOR

Select Condition

Refurbished

Request Quote

New

$297.00

1 in stock

Request a Quote
  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part NumberABE7H16S43
ManufacturerSchneider Electric
TypeAccessories
Warranty2 Year
Width4.92 in (125 mm)
Range of productAdvantys Telefast ABE7
Product or component typePassive discrete I/O sub-base
Sub-base typeInput sub-base
[Us] rated supply voltage19...30 V conforming to IEC 61131-2
Number of channels16
Number of terminal per channel2
Channel additional information1 switch disconnector per channel
Supply circuit typeDC
Number of horizontal rows1
Status LED1 LED per channel, green channel status
1 LED per channel, red blown fuse indication
1 LED, green power ON
Polarity distribution24 V
Short circuit protection1 A internal fuse, 5 x 20 mm, fast blow (PLC end)
0.125 A fuse per channel, 5 x 20 mm, fast blow (output circuit)
Connector typeHE-10
Pin number20 pins
Fixing modeBy clips on 35 mm symmetrical DIN rail
By screws on solid plate with fixing kit
Supply current<= 1.8 A
Current per channel<= 0.125 A
Current per output common<= 1.8 A
Voltage drop on power supply fuse0.3 V
Voltage drop per channel<= 0.1 V
[Ui] rated insulation voltage2000 V
Installation categoryII conforming to IEC 60664-1
Tightening torque5.31 lbf.in (0.6 N.m) (with flat Ø 3.5 mm)

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed ABE7H16S43 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this ABE7H16S43 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty ABE7H16S43, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 5lbs

Want it shipped tomorrow?

  • Order within the next 8 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty ABE7H16S43 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric ABE7H16S43 Overview

Schneider Electric ABE7H16S43 I/O Input Sub-Base Overview

The Schneider Electric ABE7H16S43 is a passive discrete input sub-base from the Advantys Telefast ABE7 range, designed for efficient connection and signal routing in automation systems. With 16 input channels, integrated fuses, and LED indicators for status and diagnostics, this module ensures organized, safe, and efficient PLC interfacing.

High-Density I/O with Enhanced Protection

This module supports 16 discrete input channels, each with two terminals per channel and an integrated switch disconnector. It provides exceptional circuit isolation and safety. The module features short-circuit protection, including a 0.125 A fast-blow fuse per channel and a 1 A internal fuse on the PLC side, ensuring safe operation in demanding industrial environments.

Visual Status Monitoring with LED Indicators

Each channel features two status LEDs—a green LED for an active signal and a red LED for blown fuse indication. An additional green power LED provides module-level diagnostics, enabling users to detect issues immediately and minimize downtime through fast and intuitive troubleshooting.

Built for Industrial DC Systems

The ABE7H16S43 is rated for a 19–30 V DC supply and conforms to IEC 61131-2. It provides 24 V polarity distribution and ensures minimal voltage drop, with a decline of ≤ 0.1 V per channel and 0.3 V across the power supply fuse. This makes it highly reliable for precision applications in discrete control systems.

Flexible Mounting and Reliable Connections

With a HE-10 20-pin connector, the ABE7H16S43 ensures a secure link to PLCs and controllers. It offers easy installation via DIN rail clips or screw mounting on solid plates using a fixing kit. The tightening torque specification is 0.6 N·m (5.31 lbf·in) using a flat Ø 3.5 mm screwdriver.

Available Now with 2-Year Warranty

MRO Electric and Supply offers the Schneider Electric ABE7H16S43 with immediate availability and a 2-year warranty, ensuring dependable operation and fast shipping. Count on MRO Electric for top-tier support and reliable automation components.

Frequently Asked Questions

What is the ABE7H16S43 used for?

It is a passive input sub-base that connects discrete signals from field devices to a PLC.

How many input channels does it support?

The module features 16 input channels, each with two terminals.

Does it include individual fuses for each channel?

Yes, each input channel features a 0.125 A fast-blow fuse, in addition to a 1 A internal fuse, providing overall protection.

What supply voltage is supported?

It operates on 19–30 V DC, conforming to IEC 61131-2.

Are LEDs included for status indication?

Yes, each channel has a green LED for status and a red LED for fuse failure, as well as a green power ON LED.

What is the connector type?

It uses a HE-10, 20-pin connector for PLC interfacing.

How is the module mounted?

It can be mounted via DIN rail clips or screwed onto a solid plate using a fixing kit.

What is the voltage drop per channel?

The voltage drop is ≤ 0.1 V per channel and 0.3 V across the power supply fuse.

Is it part of a larger system?

Yes, it is part of the Advantys Telefast ABE7 modular I/O wiring system.

Is the ABE7H16S43 in stock now?

Yes, it is available immediately from MRO Electric, with a 2-year warranty included.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry Accessories from other manufacturers such as Modicon and ABB.
