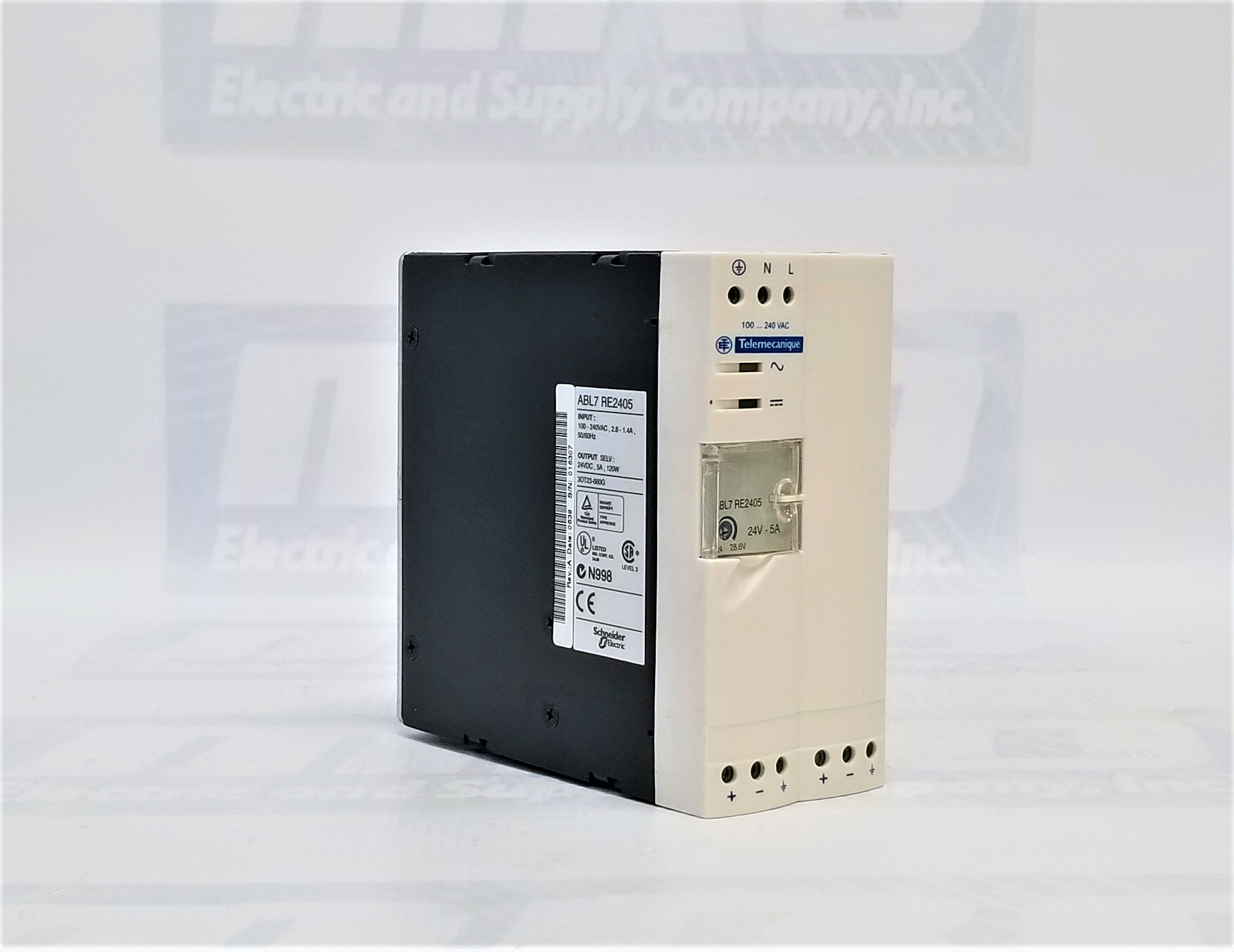

The ABL7RE2405 is a regulated switch-mode power supply (SMPS) designed for reliable and efficient power delivery in industrial settings. With a versatile input voltage range of 100 to 240 V AC, these SMPS units cater to both single-phase and two-phase configurations, providing flexibility in various applications.

Key Specifications:

• Input Voltage: 100...240 V AC (Phase to Phase), 100...240 V AC (Single Phase)
• Output Voltage: 24 V DC
• Rated Power: 60 W
• Output Current: 2.5 A
• Power Factor Correction: Conforms to IEC 61000-3-2
• Protection Features: Integrated fuse, Undervoltage protection, short-circuit protection

Efficient and Reliable:

The power supplies boast an efficiency of 84%, ensuring optimal energy utilization. Equipped with a power factor correction filter, they adhere to IEC standards, minimizing harmonic distortions in the power supply network. The integrated fuse provides essential protection, and the output is safeguarded against undervoltage and short circuits, enhancing the overall reliability of the system.

Operating Conditions:

These SMPS units can operate in a wide range of ambient temperatures, from -25 to 55 °C without derating and up to 70 °C with a derating factor. The flexibility in operating conditions makes them suitable for challenging industrial environments.

Installation and Connection:

Installation is convenient with support for symmetrical DIN rail mounting or panel mounting using screws. The units can be easily connected with screw-type terminals for both input and output, accommodating a range of wire sizes (AWG 26 to 14).

Compliance and Certification:

The ABL7RE2405 complies with various international standards, including EAC, CULus 508, TUV 60950-1, RCM, and KC. Certifications such as CSA C22.2 No 60950-1 and UL 508 ensure safety and reliability. The power supplies meet EMC requirements, confirming EN 55022 class B, EN 61000-6-3, EN/IEC 61000-6-2, and EN/IEC 61204-3.

Compact Design and Status Indication:

With a compact form factor (59 mm depth, 100 mm height, and 74 mm width) and a net weight of 0.255 kg, these SMPS units are space-efficient. The built-in status LED provides a clear indication of the output voltage status, facilitating easy monitoring.

Environmental Considerations:

Designed for robust performance, the power supplies are suitable for an ambient air temperature range of -40 to 70 °C during storage. They operate in relative humidity conditions of 0 to 90% during operation and 0 to 95% in storage.

Frequently Asked Questions

What is the input voltage range for these power supplies?

The ABL7RE2405 supports an input voltage range of 100 to 240 V AC, catering to both single-phase and two-phase configurations.

What is the output voltage and current rating?

The output voltage is 24 V DC, and the rated output current is 2.5 A, providing a reliable power source for various industrial applications.

What protection features do these power supplies offer?

These power supplies are equipped with integrated fuse protection, safeguarding against undervoltage and short circuits to ensure the stability and safety of the connected systems.

How efficient are these power supplies?

The power supplies boast an efficiency of 84%, contributing to optimal energy utilization and reducing operational costs.

What are the mounting options for installation?

The power supplies can be installed using symmetrical DIN rail mounting or panel mounting with screws, providing flexibility in deployment.

What certifications do these power supplies have?

The ABL7RE2405 holds certifications such as EAC, CULus 508, TUV 60950-1, RCM, and KC, ensuring compliance with international safety and quality standards.

How do I monitor the status of the power supplies?

The units come with a built-in status LED that indicates the output voltage status, facilitating easy monitoring and troubleshooting.

What are the environmental operating conditions for these power supplies?

The power supplies operate in ambient air temperatures ranging from -25 to 55 °C without derating and up to 70 °C with a derating factor, making them suitable for challenging industrial environments.

Can these power supplies be used in parallel or series configurations?

Yes, these power supplies support both series and parallel output coupling, offering flexibility in designing power distribution systems.

Are these power supplies suitable for international markets?

Yes, the power supplies comply with international standards and certifications, making them suitable for use in various global markets.
