ATS01N222QN

2-year Warranty

Same Day Shipping

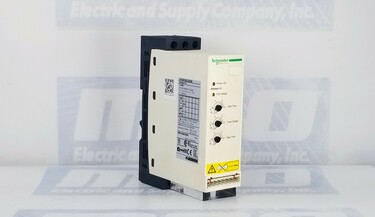

Schneider Electric ATS01N222QN

ALTISTART SOFT START/SOFT STOP UNIT 22 AMPS, D2 HORSEPOWER, D2 KILOWATTS, 380 TO 415 VOLTS, 3 PHASE, 50 TO 60 HERTZ

Select Condition

Refurbished

2 in stock

$497.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part NumberATS01N222QN
ManufacturerSchneider Electric
TypeAC Motors
Warranty2 Year

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed ATS01N222QN to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this ATS01N222QN we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty ATS01N222QN, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 14 hours and 13 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty ATS01N222QN for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric ATS01N222QN Overview

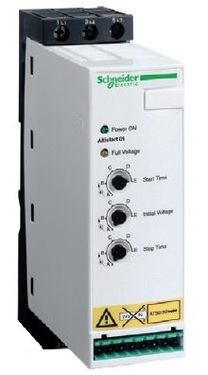

Schneider Electric ATS01N222QN Soft Starter Technical Description

General Information

The Schneider Electric ATS01N222QN is a soft starter designed for asynchronous motors. It's part of the Altistart 01 range and is specifically designed for simple machine applications.

Key Specifications

  • Device Short Name: ATS01
  • Phase: 3 phase
  • Rated Supply Voltage ([Us]): 380...415 V with a tolerance of 10...10 %
  • Motor Power (kW): Supports 11 kW and 7.5 kW for 3-phase 380...415 V
  • Starter Rating (IcL): 22 A
  • Utilization Category: AC-53B as per EN/IEC 60947-4-2
  • Current Consumption: 110 A under nominal load conditions.

Performance Features

  • Type of Start: Initiates with a voltage ramp.
  • Power Dissipation: Consumes 124.5 W during the transient state and 4.5 W at full load and at the end of starting.
  • Supply Voltage Limits: Ranges between 342…456 V.
  • Supply and Network Frequency: Accepts 50...60 Hz with a tolerance of 5...5 %, and network frequency from 47.5...63 Hz.

Functional Features

  • Assembly Style: Equipped with a heat sink.
  • Integrated Bypass: Available for better efficiency.
  • Starting and Deceleration Time: Adjustable from 1 to 10 seconds. Specific timings include 1 s for 100 starts, 5 s for 20 starts, and 10 s for 10 starts.
  • Starting Torque: Varies between 30...80 % based on the starting torque of a motor connected directly to the line supply.

Connection Details

  • Discrete Input Type and Voltage: Uses logic for LI1, LI2, and BOOST with an input voltage ranging from 24...40 V.
  • Discrete Output: Open collector logic LO1 provides the end of the starting signal.
  • Relay Outputs: R1A, R1C NO, with specified minimum and maximum switching currents.
  • Electrical Connections: Multiple configurations are available, including screw clamp terminals and screw connectors suitable for different wire types and sizes.

Display and Indicators

  • LED Display: A green LED indicates the power-up of the starter, and a yellow LED confirms the attainment of nominal voltage.

Physical Attributes

  • Dimensions:
  • Height: 6.06 in (154 mm)
  • Width: 1.77 in (45 mm)
  • Depth: 5.16 in (131 mm)
  • Net Weight: 1.23 lb(US) or 0.56 kg
  • Operating Position: Vertical alignment within a +/- 10-degree range.

Environmental Compliance

The ATS01N222QN complies with several standards ensuring electromagnetic compatibility and robustness against various environmental disturbances. These standards include, but are not limited to, CISPR 11, IEC 60947-4-2, IEC 61000-4-12, EN 50082-1, and IEC 1000-3-2.

Certifications and Protection

  • Product Certifications: The product has been certified by CSA, UL, CCC, B44.1-96/ASME A17.5 (when wired to the motor delta terminal), C-Tick, GOST, and marked CE.
  • Protection Level: It is designed to meet the IP20 degree of protection.
  • Pollution Degree: Categorized under degree 2 as per EN/IEC 60947-4-2.
  • Vibration and Shock Resistance: Complies with EN/IEC 60068-2-6 and EN/IEC 60068-2-27 standards.
  • Operational and Storage Temperatures: Suitable for operations in 14…104 °F and storage in -13…158 °F.

FAQs: Schneider Electric ATS01N222QN Soft Starter

  1. What is the main function of the Schneider Electric ATS01N222QN Soft Starter?
    • The ATS01N222QN is designed to smoothly start asynchronous motors, minimizing the mechanical stress on the motor and the electrical stress on the power supply.
  2. Which motors is the ATS01N222QN suitable for?
    • It's specifically designed for 3-phase asynchronous motors within the power range of 7.5 kW to 11 kW at 380...415 V.
  3. What is the importance of the Integrated Bypass function?
    • The integrated bypass helps in reducing power loss and heat generation once the motor reaches its full speed. It also contributes to a longer lifespan and reduced energy costs.
  4. Are there any LED indicators on the device?
    • Yes, there's a green LED indicating the power-up of the starter and a yellow LED that lights up once nominal voltage is reached.
  5. Is there a specific orientation in which the device should be mounted?
    • It's recommended to mount it in a vertical alignment, with a tolerance of +/- 10 degrees.
  6. What environmental conditions can the ATS01N222QN operate under?
    • It can operate in temperatures ranging from 14…104 °F, and even up to 122 °F with specific current derating. The device is also resistant to vibrations, shocks, and conforms to various EMC standards.
  7. Is the ATS01N222QN certified for safety and quality?
    • Absolutely. It holds multiple certifications including CSA, UL, CCC, and is marked with CE, ensuring its safety and quality.
  8. How does the soft starter affect the starting torque of the motor?
    • The soft starter can adjust the starting torque between 30% to 80% of the motor's direct on-line starting torque.
  9. Can I adjust the starting and deceleration time on this soft starter?
    • Yes, both starting, and deceleration times are adjustable from 1 to 10 seconds.
  10. What type of protection does the ATS01N222QN offer?
    • The device offers an IP20 degree of protection, safeguarding it against solid objects larger than 12mm but not against liquids.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Motors from other manufacturers such as Modicon and ABB.
