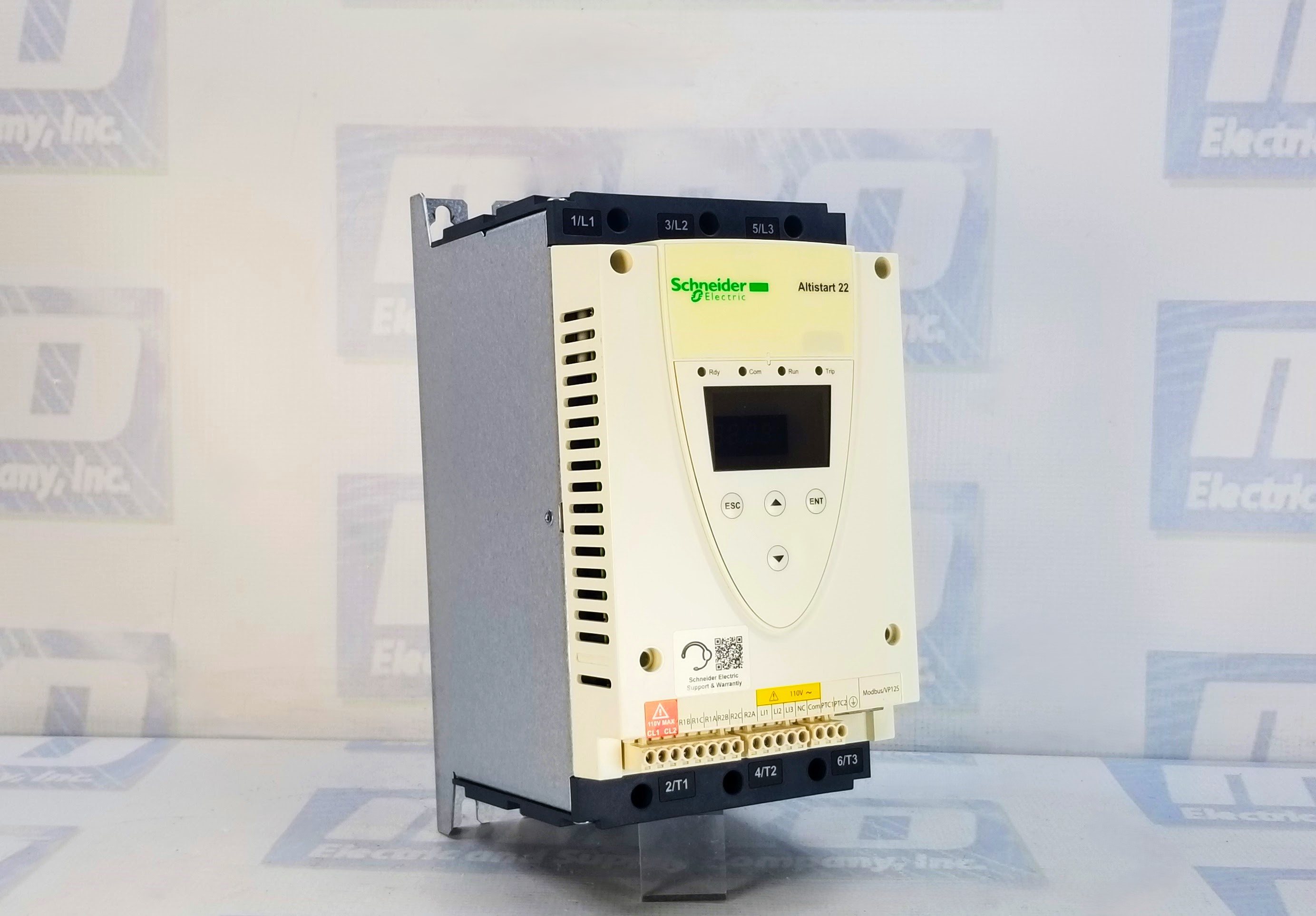

Schneider Electric ATS22D32S6U

Introduction to Schneider Electric ATS22D32S6U

The Schneider Electric ATS22D32S6U is part of the Altistart 22 soft starter series, designed to provide reliable and efficient control of three-phase motors. This soft starter is designed to minimize mechanical stress and electrical peaks during motor startup, making it an ideal solution for industrial and commercial applications.

Electrical Ratings and Performance

The ATS22D32S6U operates with a 3-phase supply voltage of 208–600 VAC at 50/60 Hz. With a 32-amp rating, the unit is suitable for a wide range of motors requiring controlled startup and smooth acceleration. The soft starter delivers consistent performance across diverse environments, improving system longevity and reducing downtime.

Motor Protection and Efficiency

The Schneider Electric ATS22D32S6U provides advanced motor protection features, including overload protection, under-voltage monitoring, and shorted SCR detection. These protections ensure that motors operate safely under varying conditions. By limiting inrush current, the soft starter reduces wear on motors and connected equipment, improving efficiency and extending equipment life.

Mechanical Design and Build Quality

The ATS22D32S6U is engineered for durability and compact installation. Its design allows for easy integration into control panels while maintaining a robust build to withstand harsh industrial environments. The model is built according to Schneider Electric's global quality standards, ensuring long-term reliability.

Operational Benefits

Using the ATS22D32S6U in an industrial system brings multiple benefits:

• Reduced mechanical stress on shafts, belts, and couplings.
• Minimized voltage dips during startup.
• Energy efficiency through smoother current control.
• Improved system reliability with built-in motor protections.

Industrial Applications

The Schneider Electric ATS22D32S6U is widely used in applications such as pumps, compressors, conveyors, and fans, where controlled motor startup is critical. By reducing torque surges and electrical disturbances, the soft starter helps optimize performance in continuous operations.

Easy Integration and Flexibility

The ATS22D32S6U integrates seamlessly with Schneider Electric control systems and automation networks. Its user-friendly interface and configuration options make setup straightforward, even in complex installations. Flexible voltage compatibility also makes the unit adaptable for global applications.

Long-Term Value

With its compact design, built-in protection features, and proven reliability, the Schneider Electric ATS22D32S6U provides long-term value in industrial environments. This model lowers operational costs by extending equipment lifespan and reducing maintenance requirements.

FAQ for Schneider Electric ATS22D32S6U

What is the Schneider Electric ATS22D32S6U?

The ATS22D32S6U is an Altistart 22 soft starter designed for three-phase motor applications requiring controlled startup.

What voltage does the ATS22D32S6U support?

The soft starter operates on a 208–600 VAC, 3-phase power supply at 50/60 Hz.

What is the current rating?

The ATS22D32S6U has a 32-amp current rating, making it suitable for medium-duty industrial motors.

What protections are built in?

The unit includes overload, under-voltage, and shorted SCR protection, enhancing motor safety.

What is the main benefit of using the ATS22D32S6U?

The primary advantage is the reduction of mechanical and electrical stress during motor startup, which improves system reliability and extends equipment life.

What industries use the ATS22D32S6U?

Industries that rely on pumps, compressors, conveyors, and fans often use this model for smooth and efficient motor operation.

Is the ATS22D32S6U energy-efficient?

Yes. By limiting inrush current and optimizing startup, the soft starter improves energy efficiency and reduces operational costs.

Can the ATS22D32S6U be integrated into automation systems?

Yes. The soft starter is compatible with Schneider Electric automation systems and supports straightforward configuration.

What is the power rating?

The ATS22D32S6U supports motors up to 32 amps, ensuring flexibility across different industrial setups.

What are the installation benefits?

The unit features a compact design for easy panel installation and long-lasting performance in demanding environments.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Motors from other manufacturers such as Modicon and ABB.
