ATV11HU09F1U

2-year Warranty

Same Day Shipping

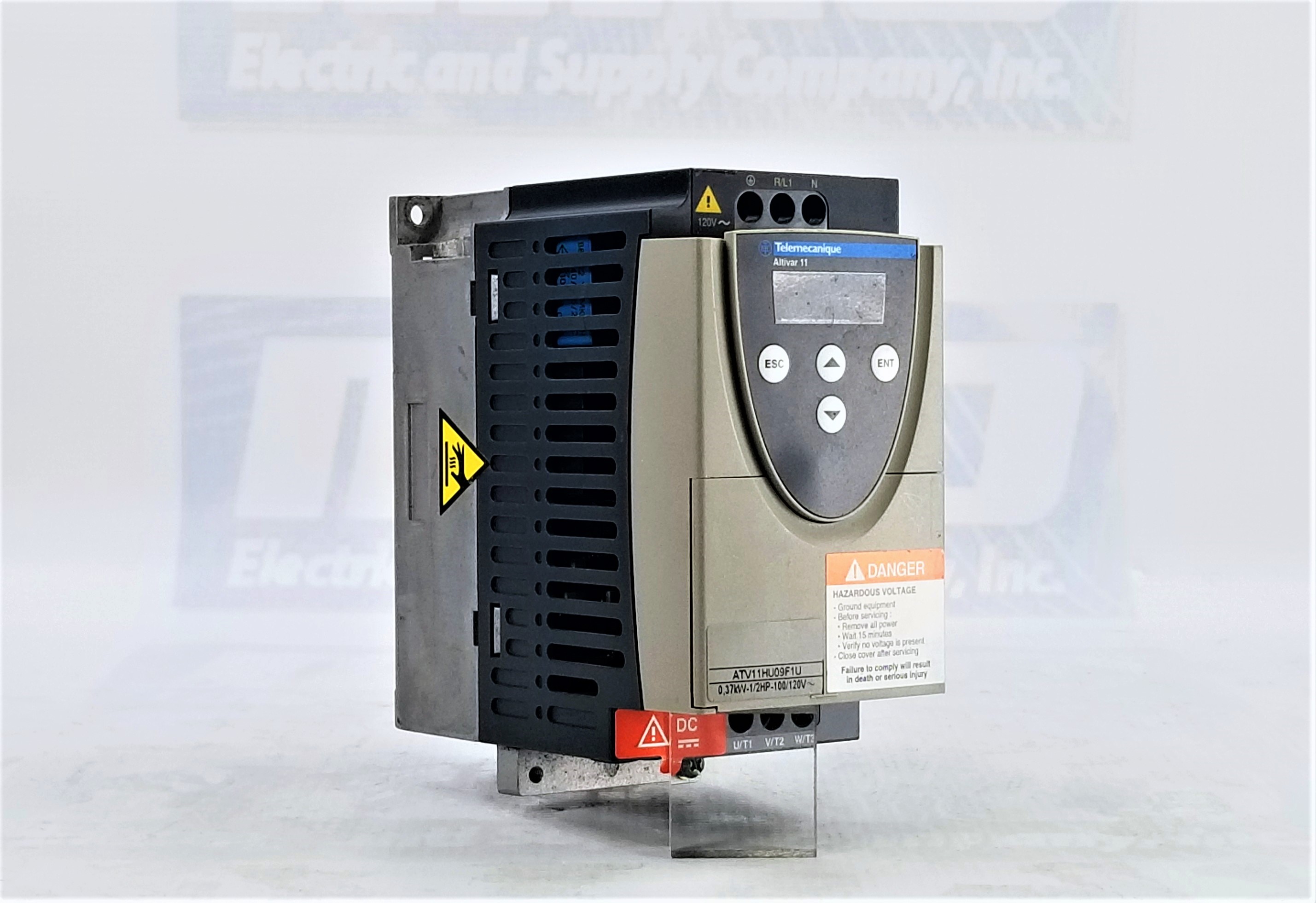

Schneider Electric ATV11HU09F1U

ALTIVAR 11 VARIABLE SPEED DRIVE ATV11 - 0.37KW - 120V 1-PHASE SUPPLY - IP20
5/5
1 rating

Select Condition

Refurbished

3 in stock

$391.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part NumberATV11HU09F1U
ManufacturerSchneider Electric
TypeAC Drives
Warranty2 Year
Assembly styleWith heat sink
EMC filterWithout EMC filter
PhaseSingle Phase
Rated Supply Voltage100...120 V - 15...10 %
Supply frequency50...60 Hz - 5...5 %
Motor power kW0.37 KW
Motor power hp0.5 Hp
Line current9 A at 100 V, Isc = 1 kA
Nominal output current2.4 A 230 V motor 4 kHz
Maximum transient current3.6 A for 60 s
Switching frequency2...16 kHz adjustable 4...16 kHz with derating factor
DestinationAsynchronous motors
Supply voltage limits85…130 V
Network frequency limits47.5…63 Hz
Speed drive output frequency0…200 Hz
Nominal switching frequency4 kHz
Speed range1…20
Transient overtorque150...170 % of nominal motor torque
Output voltage<= 2 x power supply voltage
Prospective line Isc1 KA
