MANUFACTURER: Schneider Electric
DESCRIPTION: Variable speed drive - 0.37kW - 0.55hp - 100..120V - 1ph - with heat sink
PRODUCT TYPE INFO: Altivar 12
|Category||Variable speed drive|
|Supply voltage||100...120 V - 15...10 %|
|Filter||NO EMC filter|
|Supply frequency||50/60 Hz +/- 5 %|
|Output current||2.4 A|
|Motor power||0.37 kW|
|Max rated hp||0.55 hp|
|Discrete input||4 Input|
|Discrete output||2 output|
|Analog||1 in / 1 out|
|Interface||2-wire RS 485|
|Maximum output frequency||4 kHz|
|Switching frequency||2...16 kHz adjustable 4...16 kHz with derating factor|
|Network Frequency||50-60 Hz|
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed ATV12H037F1 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this ATV12H037F1 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty ATV12H037F1, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty ATV12H037F1 for credit when ordering from MRO Electric

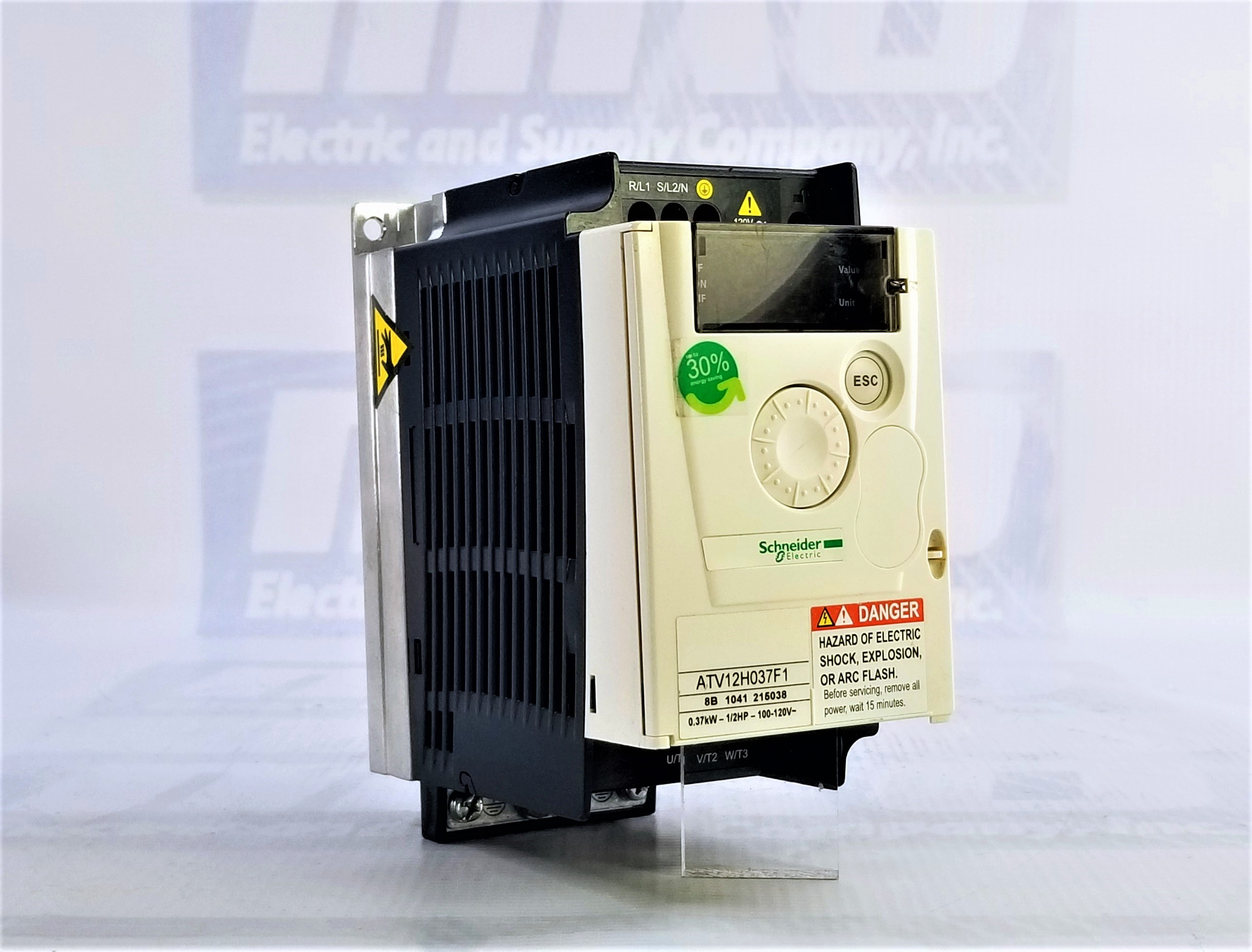

Expect power and dependability in this variable speed drive for asynchronous and synchronous motors. The ATV12H037F1 from Schneider Electric delivers a simple machine that is customizable with an easy-to-set menu, saving you both time and energy. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.
The ATV12H037F1 is a variable-speed drive manufactured by Schneider Electric, explicitly belonging to the Altivar 12 range. As a reliable and efficient variable speed drive, it plays a crucial role in industrial automation, offering precise control and optimal performance for motor-driven applications.
The main feature of the ATV12H037F1 is its ability to provide variable speed control for electric motors. This feature allows users to adjust the speed of the connected motor based on the requirements of the application. By regulating the motor speed, the drive can optimize energy consumption and reduce wear and tear on mechanical components, leading to improved efficiency and prolonged equipment life.
The drive is designed for single-phase power supply systems, with a rated voltage of 100 to 120 V and a frequency of 50/60 Hz with a tolerance of +/- 5%. It has a nominal output current of 2.4 A, making it suitable for motor loads with a power rating of up to 0.37 kW (equivalent to 0.55 horsepower).
The ATV12H037F1 features a user-friendly interface with a display unit that provides real-time information on the drive's operating status and motor parameters. The display unit allows users to monitor motor speed, input/output values, and fault conditions, providing valuable insights for system troubleshooting and maintenance.
For communication purposes, the drive incorporates a Modbus communication port protocol and a 2-wire RS 485 physical interface with an RJ45 connector. This allows for seamless integration into industrial networks, enabling remote monitoring and control of the drive from a central control room or supervisory system.
In addition to the digital inputs and outputs, the drive also includes one analog input and one analog output, providing flexibility for connecting and controlling external devices or sensors. The ATV12H037F1 also comes equipped with a relay output, which can be utilized for various purposes, such as signaling or interlocking functions.
The speed drive output frequency of the ATV12H037F1 ranges from 0.5 to 400 Hz, offering a broad range of speed control options for different motor-driven applications. The drive supports a speed range of 1 to 20, allowing users to adjust the speed in small increments for precise control.
To ensure accurate and reliable control, the drive has a sampling duration of 20 ms for logic inputs and 10 ms for the analog input. The linearity error for the analog input is within +/- 0.3% of the maximum value, providing high accuracy in motor speed control.
The ATV12H037F1 is equipped with various protection features, safeguarding both the drive and the connected motor from potential electrical faults or abnormalities. It offers protection against line supply overvoltage and undervoltage, overcurrent between output phases and earth, overheating, short-circuits between motor phases, and input phase loss in three-phase systems. The drive also provides thermal motor protection via continuous calculation of I²t, preventing motor damage due to excessive heat.
Installation and maintenance of the ATV12H037F1 are made convenient with its compact design and flexible mounting options. The drive includes a built-in heat sink, which dissipates heat effectively, ensuring stable and reliable operation even in demanding industrial environments.
As with all Schneider Electric products, the ATV12H037F1 adheres to stringent quality and safety standards, providing users with a dependable and safe solution for motor control in various industrial applications.
In conclusion, the ATV12H037F1 variable speed drive is a versatile and reliable solution for controlling and optimizing motor-driven applications in industrial settings. With its user-friendly interface, advanced communication capabilities, and comprehensive protection features, the drive enhances efficiency, reduces energy consumption, and prolongs the lifespan of equipment, contributing to increased productivity and overall cost-effectiveness in industrial automation.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at firstname.lastname@example.org, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like ATV12H037F1, take a look at more from our AC Drives line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our ATV12H037F1 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
