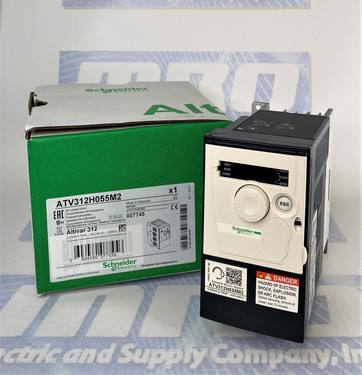

ATV312H055M2

ATV312H055M2

Rated 5/5 on 2 reviews

Rate this product


MANUFACTURER: Schneider Electric

DESCRIPTION: Variable speed drive  - 0.55kW - 1.4kVA - 46W - 200..240 V- 1-phase supply

PRODUCT TYPE INFO: Altivar 312

3 in stock
Ships Today

Free Shipping
2 Year warranty

Categories

Part NumberATV312H055M2
ManufacturerSchneider Electric
SeriesAltivar 312
Model #ATV312H055M2
TypeAC Drives
Warranty2 Year
RangeAltivar 312
DestinationAsynchronous motors
ApplicationSimple machine
AssemblyHeat Sink
Motor power kW0.55 kW
Motor power hp0.75 hp
Rated supply voltage200...240 V - 15...10 %
Supply frequency50...60 Hz - 5...5 %
PhasesSingle Phase
Line current6.8 A at 200 V, Isc = 1 kA 5.8 A at 240 V
Apparent power1.4 kVA
Maximum transient current5.6 A for 60 s
EMC filterIntegrated
Speed range1…50

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed ATV312H055M2 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this ATV312H055M2 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty ATV312H055M2, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 7 hours and 33 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty ATV312H055M2 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Additional Information

Schneider Electric ATV312H055M2 Overview

The variable speed drive Altivar312 unit ATV312H055M2 is a frequency inverter manufactured by Schneider Electric for use in the industrial setting.  This module is manufactured for 200…600 V three-phase asynchronous motors from 0.18 to 15 kW.

Features

The user-friendly Altivar drive has six logic inputs and three analog inputs It has one logic/analog output and two relay outputs. The ATV312H055M2 has several main functions. The beneficial functions of this drive include motor and drive protection. It has linear, S, U, or customized acceleration and deceleration ramps as standard. Another feature is the advantage of local control of the speed reference using the navigation button.  It has increase and decrease speed capabilities with 16 speeds that are preset for your convenience. It maintains a PI regulator and references.  This frequency inverter drive uses. 2-wire/3-wire control.  The Altivar312 line is manufactured for automatic catching of a spinning load implementing speed detection and automatic restart. This unit offers fault configuration and stop type configuration. The configuration is saved in the drive.  The drive is capable of accommodating several functions that are assigned to one logic input.

Advantages

The built-in functions Altivar 312 ATV312H055M2 drive are in keeping with the most common applications. Some of these applications include material handling (small conveyors, hoists, etc.), packing and packaging machines (small bagging machines, labeling machines, etc.), special machines (mixers, kneaders, textile machines, etc.), and items such as pumps, compressors, and fans.

The Schneider Electric ATV312H055M2 complies with international standards IEC 61800-5-1, IEC 61800-2 and IEC 61800-3, and UL, CSA, C-Tick, NOM, and GOST certifications. The architecture of the ATV312H055M2 drive meets the requirements of environmental directives (RoHS) and those of the European Directives to receive the CE mark.

The ATV312H055M2 has the advantage of an EMC filter incorporated onboard.

The Altivar 312 group of variable speed drives covers motor power ratings from 0.18 kW to 15 kW and has four types of power supply.  For the ATV312H055M2 the ratings are 200 V…240 V single-phase, 0.18 kW to 2.2 kW.

How to use a ATV312H055M2

The ATV312 line of drives also offers connectivity with several optional modules. These external accessories enhance the performance of the drive unit and offer better control and execution. One of these accessories is the UL Type 1 conformity kit.  You can order optional plates for direct mounting on 35 mm rails. Other optional external accessories you can order to enhance performance include braking resistors, line chokes, and additional EMC input and output filters.

There are configuration requirements that allow for industrial communication installations and Schneider Electric has engineered the ATV312 driveline to meet these requirements. How does this benefit you? As a standard on the ATV312, you will find both Modbus and CANopen communication protocols.  Connection is also available with several other communication modules. This includes busses and networks by using communication option cards or modules including the Modbus TCP network via the Ethernet/Modbus bridge Fipio bus via the Fipio/Modbus gateway.

The Schneider Electric ATV31 variable speed drive unit ATV312H055M2 comes with a two-year warranty.

Product Description

The ATV312H055M2 is a Variable speed drive - 0.55kW - 1.4kVA - 46W - 200... that is manufactured by Schneider Electric. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. All of the products in the altivar-312 line come with a 2 year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.
