MANUFACTURER: Schneider Electric
DESCRIPTION: Variable speed drive 11kW - 25kVA - 397 W - 380..500 V - 3-phase supply
PRODUCT TYPE INFO: Altivar ATV 312
|Category||Variable speed drive|
|Motor power||11 kW|
|Max hp rating||15 hp|
|Supply voltage||380...500 V - 15...10 %|
|Assembly||with heat sink|
|Supply frequency||50...60 Hz - 5...5 %|
|Max transient current||41.6 A 60 s|
|Power dissipation||397 W at nominal load|
|Line current||37.2 A 380 V, Isc = 22 kA 28.4 A 500 V|
|Communication ports||Modbus, CANopen|
|Protection||IP20 on upper part without cover plate IP21 on connection terminals IP31 on upper part IP41 on upper part|
|Option card||Communication card CANopen daisy chain Communication card DeviceNet Communication card Fipio 1 Communication card Modbus TCP Communication card Profibus DP|
|Transient overtorque||170…200 % of nominal motor torque|
|Regulation loop||Frequency PI regulator|
|Analog input/Analog out||3 in/1 out|
|Discrete in/discrete out||6 in/2 out|
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed ATV312HD11N4 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this ATV312HD11N4 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty ATV312HD11N4, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty ATV312HD11N4 for credit when ordering from MRO Electric
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.

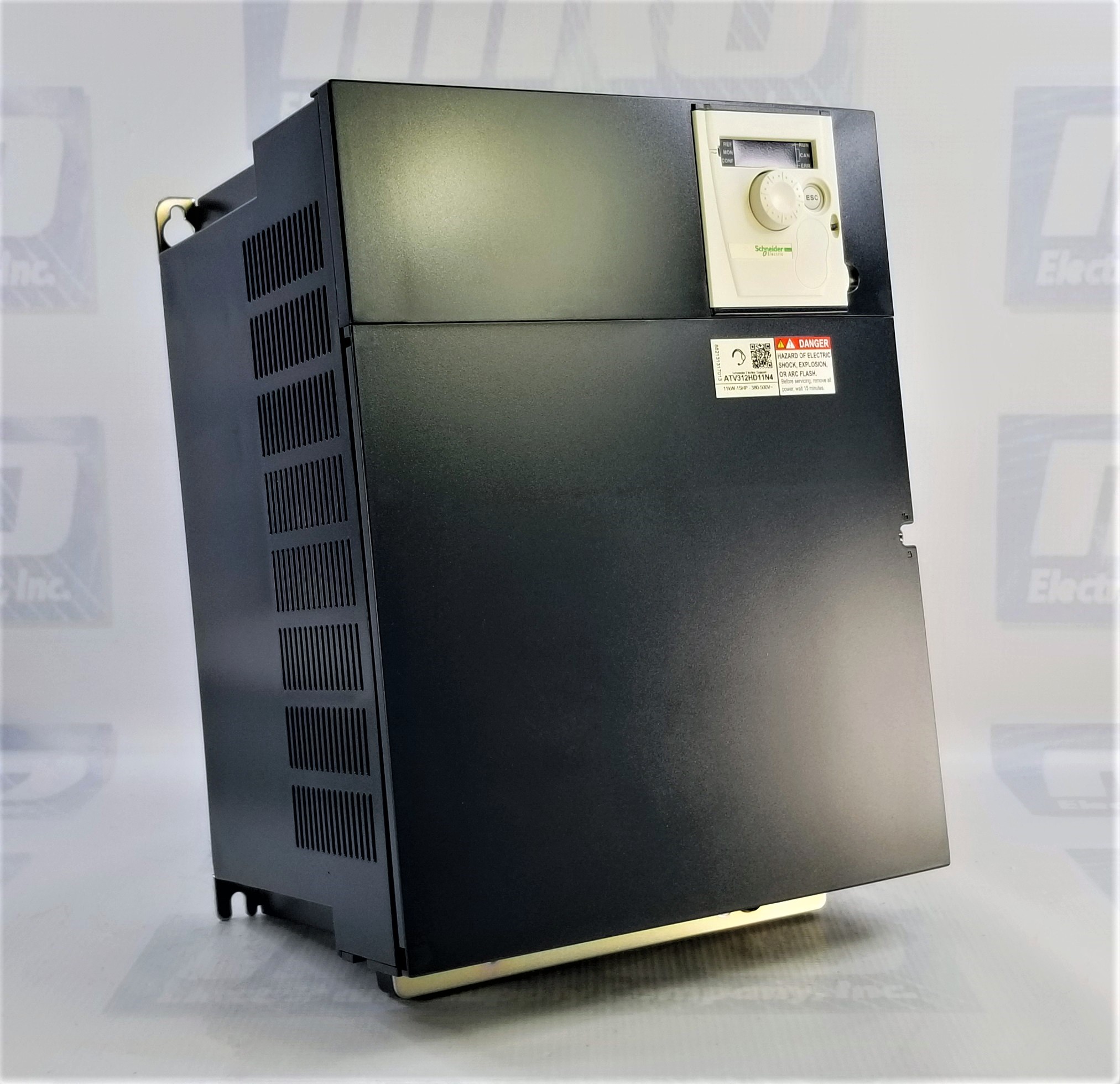

The Schneider Electric ATV312HD11N4 is a robust and advanced variable speed drive, representing a key component within the Altivar 312 product range. Manufactured by Schneider Electric, a global leader in energy management and automation, this drive is designed to provide precise control over the speed and performance of asynchronous motors in a variety of applications. Its exceptional features and capabilities make it a valuable asset for enhancing efficiency and productivity in industrial processes.
The ATV312HD11N4 variable speed drive is specifically tailored for use with simple machines, where optimized control and reliable performance are essential. Its assembly style includes a heat sink, which aids in dissipating heat generated during operation, ensuring consistent and efficient performance even under demanding conditions. This design characteristic highlights Schneider Electric's dedication to engineering solutions that prioritize reliability and longevity.
Central to the ATV312HD11N4's capabilities is its motor power of 11 kW, equivalent to approximately 15 horsepower. This impressive power rating positions the drive as a potent tool for driving various types of machinery and equipment. With a rated supply voltage range of 380 to 500 V and a supply frequency range of 50 to 60 Hz, the drive offers adaptability to different power systems and regions.
The integrated EMC filter within the ATV312HD11N4 drive is an important feature that helps mitigate electromagnetic interference, ensuring that the drive's operation does not negatively impact other sensitive equipment or systems. This emphasizes Schneider Electric's commitment to both precision and compliance with electromagnetic compatibility standards.
For applications requiring temporary bursts of higher current, the drive's maximum transient current of 41.6 A for 60 seconds provides additional flexibility and adaptability. Additionally, the drive's power dissipation of 397 W at nominal load showcases its energy-efficient design, contributing to reduced energy consumption and operational costs.
The drive's speed control capability, with a range from 1 to 50, allows for precise adjustment of motor speeds according to the specific requirements of the application. It employs sensorless flux vector control with PWM (Pulse Width Modulation) type motor control signals, offering high levels of accuracy and responsiveness in maintaining desired speeds and torque levels.
Installation and electrical connections are made straightforward with the presence of various terminal options, including Al1, Al2, Al3, AOV, AOC, R1A, R1B, R1C, R2A, R2B, and LI1...LI6 terminals, supporting conductor cross-sections of 2.5 mm² (AWG 14) for smaller terminals and 25 mm² (AWG 3) for larger terminals. The drive also incorporates an internal supply for logic inputs and a reference potentiometer, ensuring proper functionality and safety.
Communication capabilities are another strength of the ATV312HD11N4 drive, supporting protocols like Modbus and CANopen. These features enable seamless integration into various control architectures and communication networks, enhancing its role as a versatile and adaptable solution for industrial automation.
In terms of protection and safety, the drive includes numerous features, such as protection against input phase breaks, line supply overvoltage, and undervoltage, motor phase breaks, overcurrent between output phases and earth, overheating, short-circuit between motor phases, and more. These protective mechanisms ensure reliable operation and safeguard both the drive and connected machinery.
The ATV312HD11N4 drive's physical attributes include dimensions of 555 x 234 x 268 mm, weighing approximately 24.25 lbs (11 kg), making it compact and suitable for a range of installation spaces. It has a protective treatment against environmental factors and is capable of operating within a wide temperature range, from -13°F to 140°F (-25°C to 60°C) with appropriate derating.
In summary, the Schneider Electric ATV312HD11N4 variable speed drive is a cutting-edge solution within the Altivar 312 product range. Its impressive power, comprehensive protection features, communication capabilities, and user-friendly design make it an essential tool for optimizing the performance of simple machines. Schneider Electric's commitment to innovation, reliability, and energy efficiency is evident in the design and capabilities of the ATV312HD11N4 drive, contributing to increased productivity and enhanced automation in industrial settings.
