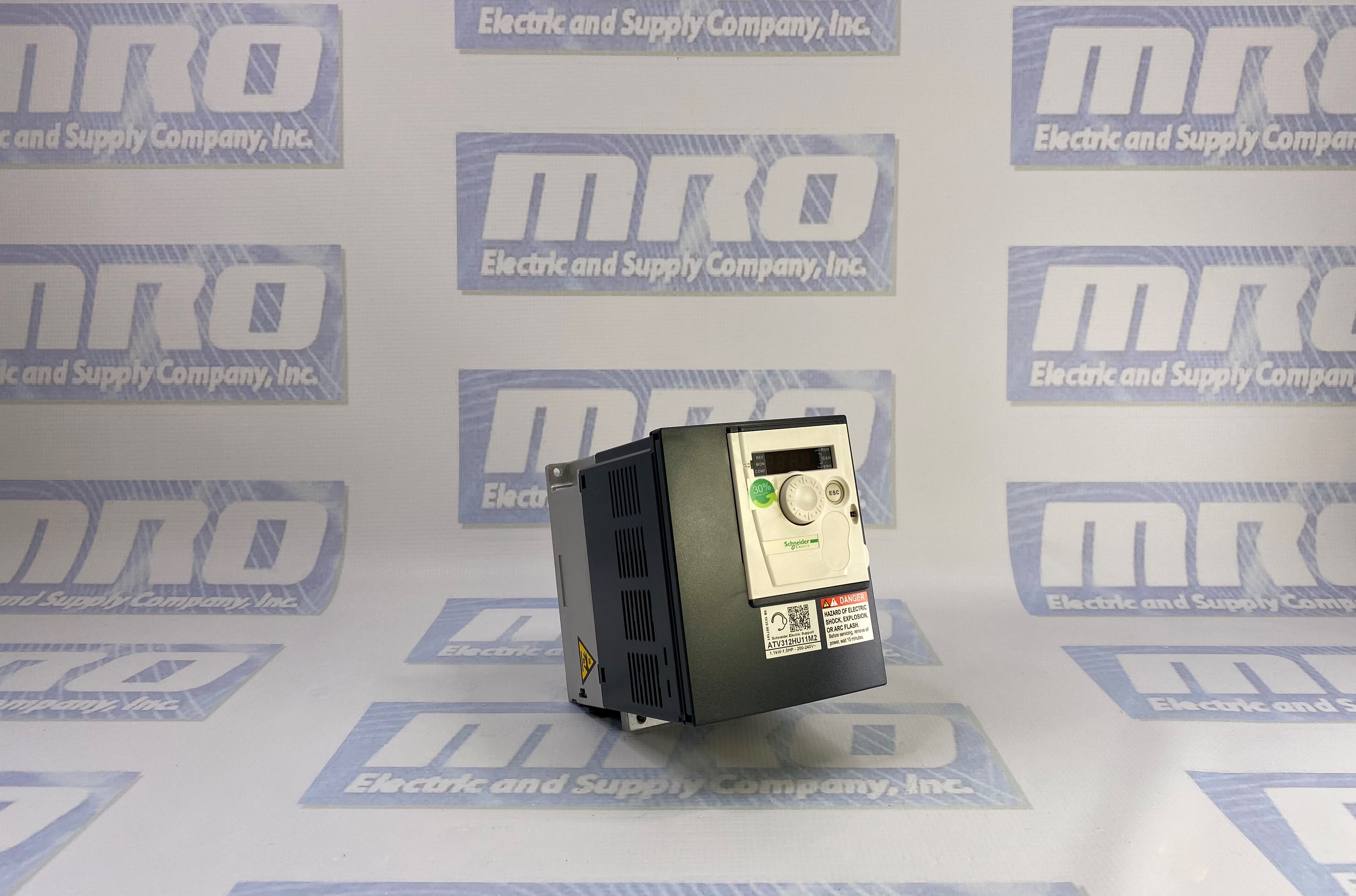

Schneider Electric ATV312HU11M2

Introduction to the Schneider Electric ATV312HU11M2 Variable Speed Drive

The Schneider Electric ATV312HU11M2 is a high-performance variable-speed drive that controls asynchronous motors in industrial and commercial applications. As part of the Altivar 312 range, this drive is known for its reliability, energy efficiency, and advanced motor control features. With a power rating of 1.1 kW (1.5 hp) and a single-phase 200-240 V supply voltage, it is an ideal solution for applications requiring precise motor speed control while ensuring energy savings and system optimization.

Technical Features and Performance

The ATV312HU11M2 drive features a three-phase output and can support 200-240 V motors with a maximum input current of 12.1 A and an output current of 6.9 A. Its advanced motor control algorithms provide smooth acceleration and deceleration, reducing mechanical stress and extending the lifespan of connected equipment. The variable speed drive is equipped with overload protection classified under Class 10, ensuring safety and reliability during operation. With support for a frequency range of 50/60 Hz, it is highly versatile and compatible with various industrial applications.

Applications and Use Cases

Designed to optimize motor performance, the ATV312HU11M2 is widely used in manufacturing HVAC systems, conveyors, pumps, and fans. Its ability to regulate motor speed improves process efficiency and reduces energy consumption, making it an essential component in automation and motion control systems. The drive ensures smooth torque delivery, which is critical for applications that require precise speed adjustments and minimal downtime.

Safety and Protection Features

Safety is a key aspect of the ATV312HU11M2 design, as it includes built-in overload protection and advanced thermal management. The Class 10 overload protection prevents damage to the motor and drive by detecting excessive current draw and responding accordingly. Additionally, the drive incorporates fault detection and real-time diagnostics, allowing operators to monitor system status and address potential issues before they lead to operational failures.

Availability and Warranty

The Schneider Electric ATV312HU11M2 is available immediately from MRO Electric and Supply, with free shipping options for fast delivery. It is backed by a two-year warranty, providing customers with peace of mind regarding product quality and reliability. Engineers and technicians trust this drive for a robust and efficient motor control solution.

Frequently Asked Questions (FAQs)

What is the primary function of the ATV312HU11M2?

It is a variable-speed drive designed to control the speed and torque of asynchronous motors.

What is the power rating of this drive?

The power rating is 1.1 kW (1.5 hp).

What type of motors is this drive compatible with?

It is compatible with three-phase 200-240 V asynchronous motors.

What is the input voltage requirement?

The drive operates with a single-phase 200-240 V power supply.

Does the drive offer overload protection?

Yes, it includes Class 10 overload protection to prevent motor damage.

What applications is this drive commonly used for?

It is used in conveyors, pumps, fans, HVAC systems, and industrial automation.

What is the maximum input and output current?

The maximum input current is 12.1 A, while the output current is 6.9 A.

Does this drive support both 50 Hz and 60 Hz frequency operation?

Yes, it is compatible with both 50 Hz and 60 Hz systems.

Where can I purchase the ATV312HU11M2?

It is available from MRO Electric and Supply and has free shipping.

What warranty does this drive come with?

It includes a two-year warranty for reliability and peace of mind.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.
