ATV312HU22M3

2-year Warranty

Same Day Shipping

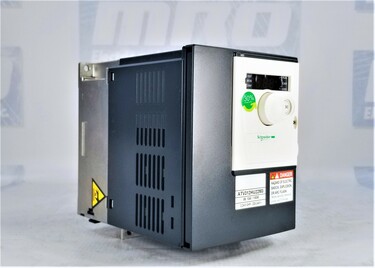

Schneider Electric ATV312HU22M3

ALTIVAR 312 VARIABLE SPEED DRIVE ATV312 - 2.2KW - 5.2KVA - 114W - 200..240 V- 3-PHASE SUPPLY

4 in stock


Free Shipping

2 Year warranty

Part NumberATV312HU22M3
ManufacturerSchneider Electric
TypeAC Drives
Warranty2 Year
RangeALTIVAR 312
CategoryATV 312
DescriptionVariable speed drive
Power rating2.2 kW
Input voltage200-240 V 3phase
Phase3 phase
Input frequency 50/60 Hz
Output frequency0,5/500 Hz
Current rating14.9 A max
Motor overload protectionClass 10

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed ATV312HU22M3 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this ATV312HU22M3 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty ATV312HU22M3, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 3lbs

Want it shipped tomorrow?

  • Order within the next 23 hours and 56 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty ATV312HU22M3 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric ATV312HU22M3 Overview

Unveiling the ATV312HU22M3 Variable Speed Drive: Revolutionizing Industrial Operations

Introduction: Empowering Industrial Efficiency

The ATV312HU22M3 variable speed drive is a cutting-edge solution designed to enhance industrial operations with its precision control and versatility. Engineered by Schneider Electric, a global leader in energy management and automation, this drive redefines the standards of efficiency and performance in industrial settings.

Overview: Altivar 312 Product Range

Part of the Altivar 312 product range, the ATV312HU22M3 variable speed drive is meticulously crafted to meet the diverse needs of modern industries. With its advanced features and robust construction, it offers seamless integration and exceptional reliability, making it an indispensable asset in various industrial applications.

Technical Specifications: Precision and Power

Equipped with a 2.2 kW motor power and a maximum horsepower rating of 3 hp, the ATV312HU22M3 delivers outstanding performance. Operating on a 200-240 V three-phase supply, it ensures reliable power delivery with a line current of 14.9 A at 200 V and 13 A at 240 V, catering to the demands of industrial machinery and equipment.

Versatile Control: Sensorless Flux Vector Control

Featuring sensorless flux vector control with PWM type motor control signal, the ATV312HU22M3 offers precise and efficient control over asynchronous motors. With factory-set constant torque profiles, it ensures optimal performance across a wide range of industrial applications, from simple machines to complex systems.

Advanced Connectivity: Communication Protocols

The ATV312HU22M3 supports various communication protocols, including CANopen and Modbus, facilitating seamless integration into existing industrial networks. This enables enhanced monitoring, control, and diagnostics, empowering operators to optimize system performance and efficiency.

Reliability and Safety: Built to Withstand Industrial Rigors

Built with reliability and safety in mind, the ATV312HU22M3 incorporates comprehensive protection features to safeguard against electrical faults and ensure uninterrupted operation. From input phase breaks to motor phase breaks, it offers robust protection against a range of potential hazards in industrial environments.

Compact Design: Space-Efficient Installation

With its compact dimensions of 143 x 105 x 130 mm, the ATV312HU22M3 offers a space-efficient solution for industrial installations. Its vertical operating position and lightweight design make it easy to integrate into existing systems, providing flexibility and convenience for installation and maintenance.

Exploring the ATV312HU22M3 Variable Speed Drive: FAQ

What is the ATV312HU22M3 variable speed drive used for?

The ATV312HU22M3 is designed for controlling the speed of asynchronous motors in industrial applications, offering precise control and efficient performance.

What is the power rating of the ATV312HU22M3?

The ATV312HU22M3 has a motor power rating of 2.2 kW and a maximum horsepower rating of 3 hp, making it suitable for driving a variety of industrial machinery and equipment.

What is the input voltage range of the ATV312HU22M3?

The ATV312HU22M3 operates on a 200-240 V three-phase supply, providing reliable power delivery for industrial operations.

Does the ATV312HU22M3 support different communication protocols?

Yes, the ATV312HU22M3 supports various communication protocols, including CANopen and Modbus, enabling seamless integration into industrial networks for enhanced control and monitoring.

What safety features does the ATV312HU22M3 incorporate?

The ATV312HU22M3 includes comprehensive protection features to safeguard against electrical faults, such as input phase breaks, motor phase breaks, and overheating, ensuring safe and uninterrupted operation in industrial environments.

Is the ATV312HU22M3 easy to install and maintain?

Yes, the ATV312HU22M3 features a compact design and lightweight construction, making it easy to install and integrate into existing industrial systems. Additionally, its vertical operating position and comprehensive manual guidance facilitate straightforward maintenance procedures.

Can the ATV312HU22M3 be used in a variety of industrial applications?

Yes, the ATV312HU22M3 is suitable for a wide range of industrial applications, including simple machines and complex systems, thanks to its versatile control capabilities and robust performance.

What is the expected lifespan of the ATV312HU22M3?

The ATV312HU22M3 is built with durability and reliability in mind, offering a long operational lifespan in industrial environments with proper maintenance and care.

Does the ATV312HU22M3 offer protection against transient over-torque?

Yes, the ATV312HU22M3 protects transient over-torque, with a range of 170–200% of nominal motor torque, ensuring safe and reliable operation during sudden load changes.

Can the ATV312HU22M3 be customized for specific applications?

Yes, the ATV312HU22M3 offers customization options for acceleration and deceleration ramps, braking to a standstill, and motor slip compensation, allowing users to tailor its performance to meet the unique requirements of their applications.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.
