ATV312HU75N4

2-year Warranty

Same Day Shipping

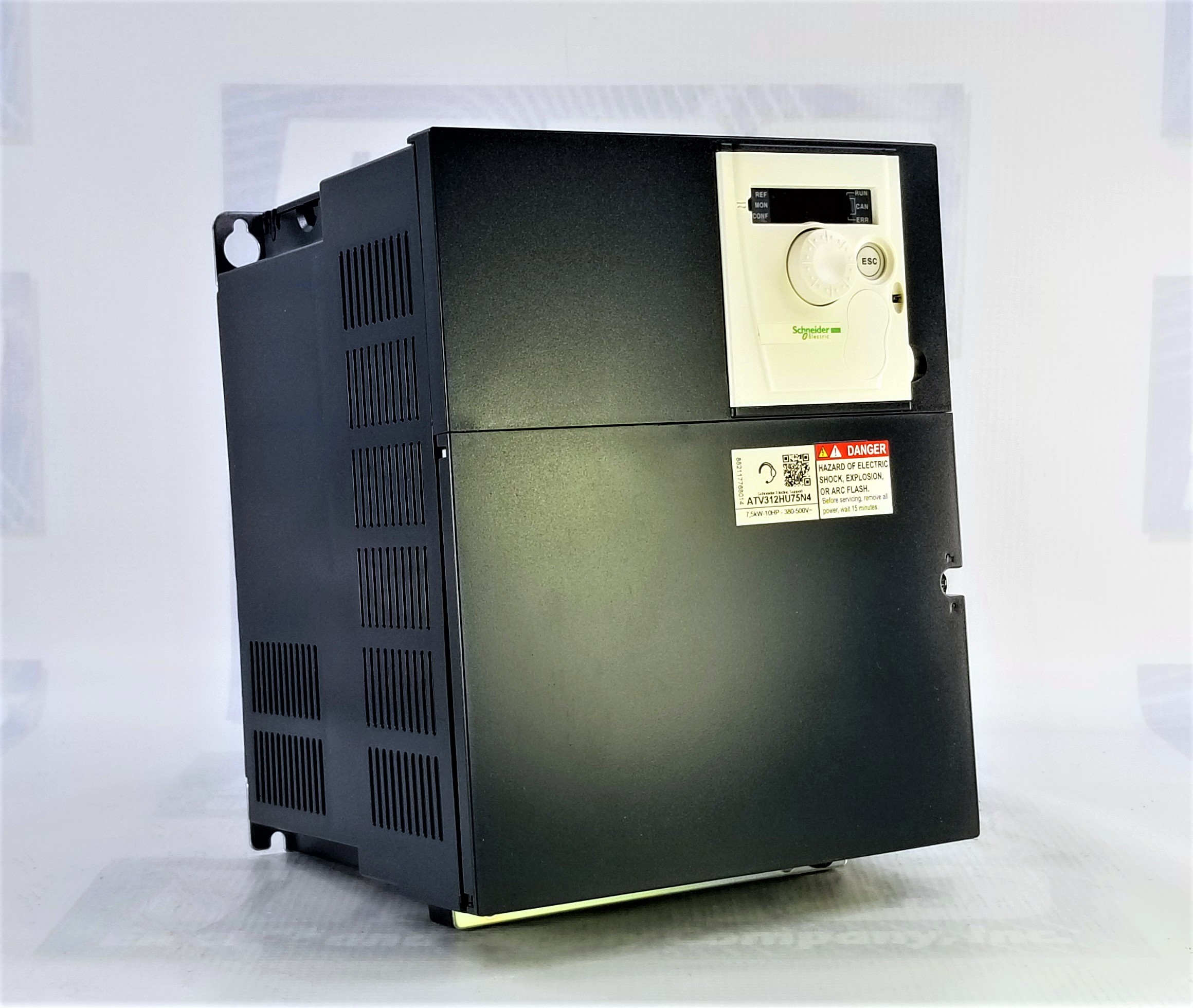

Schneider Electric ATV312HU75N4

ALTIVAR 312 VARIABLE SPEED DRIVE ATV312 - 7.5KW - 18KVA - 269W - 380..500 V- 3-PHASE SUPPLY
5/5
1 rating

Select Condition

Refurbished

Request Quote

New

2 in stock

$1,739.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part NumberATV312HU75N4
ManufacturerSchneider Electric
TypeAC Drives
Warranty2 Year
ProductATV312
ComponentVariable speed drive
DestinationAsynchronous motor
ApplicationSimple machine
Assemblyw/ Heat sink
Motor power7.5 kW
Rated HP10 Hp
Rated supply voltage380...500 V - 15...10 %
Supply freq.50...60 Hz - 5...5 %
Phases3 Phases
Line current27.7 A at 380 V, Isc = 22 kA 21 A at 500 V
EMC filterIntegrated
Apparent power 18 kVA
Max trans current25.5 A for 60 s
Speed range1…50
CommunicationCANopen, Modbus
IP ProtectionIP20 on upper part without cover plate IP21 on connection terminals IP31 on upper part IP41 on upper part
Option cardCommunication card for CANopen daisy chain Communication card for DeviceNet Communication card for Fipio Communication card for Modbus TCP Communication card for Profibus DP

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed ATV312HU75N4 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this ATV312HU75N4 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty ATV312HU75N4, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 14lbs

Want it shipped tomorrow?

  • Order within the next 17 hours and 18 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty ATV312HU75N4 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric ATV312HU75N4 Overview

Empowering Industrial Efficiency with Schneider ElectricATV312HU75N4 AC Drive

Optimized Performance and Versatility for Variable Speed Control

Schneider Electric introduces the ATV312HU75N4 AC Drive, a cutting-edge solution designed to deliver precise control and enhanced efficiency in industrial applications. With its advanced features and robust design, this drive sets new standards for performance and reliability in variable speed control systems.

Advanced Variable Speed Drive Technology

The ATV312HU75N4 belongs to the ATV312 product line, representing Schneider Electric's commitment to excellence in variable speed drive technology. As a component designed for use with asynchronous motors, it offers versatile performance suitable for various industrial applications, particularly in simple machine setups.

Powerful Motor Control Capability

With a motor power rating of 7.5 kW (equivalent to 10 HP), the ATV312HU75N4 provides ample power to drive industrial machinery with precision and efficiency. Its compatibility with three-phase power systems and rated supply voltages ranging from 380 to 500 volts ensures seamless integration into diverse industrial setups.

Integrated EMC Filter for Enhanced Performance

Equipped with an integrated EMC filter, the ATV312HU75N4 ensures reliable operation by minimizing electromagnetic interference. This feature enhances system performance and stability, reducing the risk of signal distortion and ensuring consistent operation in challenging industrial environments.

Wide Speed Range and Communication Capabilities

The ATV312HU75N4 offers a wide speed range, from 1 to 50, enabling precise control over motor speed to meet the specific requirements of industrial processes. Additionally, its communication capabilities, including CANopen and Modbus protocols, facilitate seamless integration into automation networks, enhancing connectivity and control.

Robust Enclosure Design with IP Protection

Designed for durability and reliability, the ATV312HU75N4 features a robust enclosure with IP20 protection on the upper part (without a cover plate), IP21 on connection terminals, IP31 on the upper part, and IP41 on the upper part. This ensures protection against dust, moisture, and other environmental factors, safeguarding the drive's internal components and prolonging its lifespan.

Expandable Functionality with Option Cards

The ATV312HU75N4 offers expandable functionality through optional communication cards, including CANopen, DeviceNet, Fipio, Modbus TCP, and Profibus DP. These option cards enable customization and compatibility with various communication protocols, enhancing flexibility and adaptability in industrial automation applications.

Frequently Asked Questions (FAQ) About the Schneider Electric ATV312HU75N4 AC Drive

What is the ATV312HU75N4 AC Drive designed for?

The ATV312HU75N4 AC Drive is designed to provide precise control and enhanced efficiency in industrial applications, particularly for variable speed control of asynchronous motors in simple machine setups.

What is the power rating of the ATV312HU75N4 AC Drive?

The ATV312HU75N4 AC Drive has a motor power rating of 7.5 kW, equivalent to 10 HP, making it suitable for driving industrial machinery with precision and efficiency.

What communication protocols does the ATV312HU75N4 support?

The ATV312HU75N4 supports communication protocols such as CANopen and Modbus, facilitating seamless integration into automation networks and enhancing connectivity and control.

What is the IP protection rating of the ATV312HU75N4 AC Drive?

The ATV312HU75N4 AC Drive features robust enclosure design with IP20 protection on the upper part (without cover plate), IP21 on connection terminals, IP31 on the upper part, and IP41 on the upper part, ensuring protection against dust, moisture, and other environmental factors.

Does the ATV312HU75N4 AC Drive feature an integrated EMC filter?

Yes, the ATV312HU75N4 AC Drive comes equipped with an integrated EMC filter, minimizing electromagnetic interference and enhancing system performance and stability.

Can the functionality of the ATV312HU75N4 AC Drive be expanded?

Yes, the ATV312HU75N4 AC Drive offers expandable functionality through optional communication cards, including CANopen, DeviceNet, Fipio, Modbus TCP, and Profibus DP, enabling customization and compatibility with various communication protocols.

What is the input voltage range supported by the ATV312HU75N4 AC Drive?

The ATV312HU75N4 AC Drive supports rated supply voltages ranging from 380 to 500 volts, ensuring compatibility with various three-phase power systems in industrial setups.

What is the maximum current supported by the ATV312HU75N4 AC Drive?

The ATV312HU75N4 AC Drive supports a line current of 27.7 A at 380 V and 21 A at 500 V, ensuring reliable operation and efficient motor control in industrial applications.

How does the ATV312HU75N4 AC Drive contribute to industrial efficiency?

The ATV312HU75N4 AC Drive enhances industrial efficiency by providing precise control over motor speed, seamless integration into automation networks, and robust protection against environmental factors, ensuring reliable and efficient operation in industrial environments.

Can the ATV312HU75N4 AC Drive be used in various industrial applications?

The ATV312HU75N4 AC Drive is suitable for a wide range of industrial applications where variable speed control of asynchronous motors is required, including manufacturing, processing, and other industrial processes.
