ATV31HU15N4

2-year Warranty

Same Day Shipping

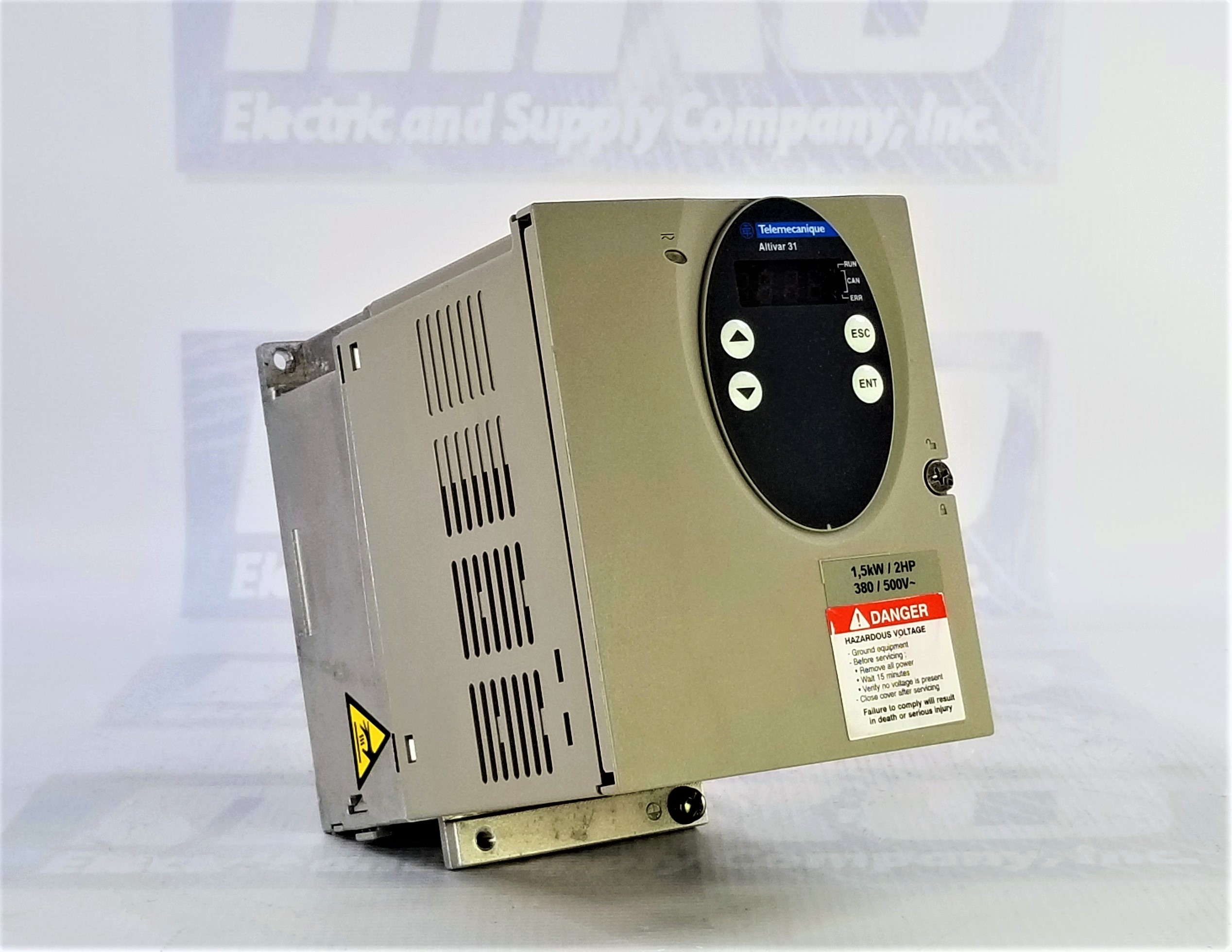

Schneider Electric ATV31HU15N4

ALTIVAR 31 VARIABLE SPEED DRIVE ATV31 - 1.5KW - 500V 3-PHASE SUPPLY - EMC FILTER - IP20
5/5
1 rating

Select Condition

Refurbished

4 in stock

$867.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part NumberATV31HU15N4
ManufacturerSchneider Electric
TypeAC Drives
Warranty2 Year
RangeATV31
CategoryVariable speed drive
Motor rating500 v 3 phase
Power rating1.5 kW
FilterEMC
ProtectionIP20
ApplicationSimple machine
AssemblyWith heat sink
Supply v380...500 V - 5...5 %
Apparent power4.2 kVA
Output current4.1 A 4 kHz
Power dissipation61 W at nominal load
Network phases3 phase
Motor power1.5 kW 4 kHz
Prospective line Isc1 kA
DestinationAsynchronous motors
Output frequency0.0005…0.5 kHz
Supply voltage limit323…550 V
Switching frequency4 kHz
Speed range1…50
Analogue output 2 out
Discrete input logic2 out

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed ATV31HU15N4 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this ATV31HU15N4 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty ATV31HU15N4, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 5lbs

Want it shipped today?

  • Order within the next 3 hours and 32 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty ATV31HU15N4 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric ATV31HU15N4 Overview

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machine usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.

Schneider Electric ATV31HU15N4

The Schneider Electric ATV31HU15N4 is a robust and versatile variable-speed drive from the Altivar series, designed to deliver precise motor control in a variety of applications. This drive, with its assembly style featuring a heat sink and integrated EMC filter, offers exceptional performance and efficiency for machines and systems that demand controlled speed variations.

Product Overview

The ATV31HU15N4 is a highly capable variable speed drive designed for use in a simple machine context. With an integrated EMC filter and assembly style featuring a heat sink, this drive is well-suited for applications requiring efficient motor control. The drive operates within a voltage range of 380 to 500 V, and it's compatible with 3-phase supply systems. Offering a motor power of 1.5 kW (equivalent to 2 hp) and a line current of up to 6.4 A at 380 V, this drive provides substantial power for a wide range of industrial uses.

Control Capabilities

The ATV31HU15N4 utilizes sensorless flux vector control combined with pulse-width modulation (PWM) type motor control signals, enabling precise control over asynchronous motors. Factory settings offer constant torque control, while the drive's analog input channels can be configured for more specific control needs. The drive is engineered to support analog input types like configurable voltage and current, allowing for flexibility in adapting to different motor requirements.

Performance and Protection

This drive excels in delivering reliable performance. With a nominal output current of 4.1 A and a maximum transient current of 6.2 A for short bursts, it ensures smooth and controlled motor operation. The drive incorporates acceleration and deceleration ramps that are adjustable, giving users the freedom to tailor the motor's response to their specific application needs. Protection mechanisms are built in to safeguard against potential issues, including input phase breaks, line supply overvoltage, and motor phase breaks.

Connectivity and Communication

The ATV31HU15N4 supports various connectivity options to enhance its versatility. It features multiple discrete inputs and outputs that can be programmed according to the application's logic requirements. Additionally, the drive provides analog inputs and outputs, enabling seamless integration with external sensors and control systems. It offers communication interfaces, including an RJ45 connector for CANopen and Modbus connections, facilitating communication with other devices and systems.

Design and Environment

Built with durability in mind, the ATV31HU15N4 boasts a compact and robust design. With dimensions of 143 x 105 x 150 mm, it's designed to fit into diverse installation environments. The drive's design complies with the IP20 standard, offering protection against solid objects, while additional covers ensure IP31, IP41, or IP21 protection depending on the configuration. The drive operates efficiently within ambient temperatures ranging from -10 to 50 °C, ensuring reliable performance even in challenging conditions.

Conclusion

In summary, the Schneider Electric ATV31HU15N4 is a high-performance variable speed drive that meets the demands of modern industrial applications. Its robust design, precise control capabilities, and protective features make it a reliable solution for controlling asynchronous motors in a variety of settings. Whether used in simple machines or more complex systems, this drive provides the flexibility and efficiency needed to optimize motor performance and achieve precise speed control.
