Schneider Electric ATV58HD28N4

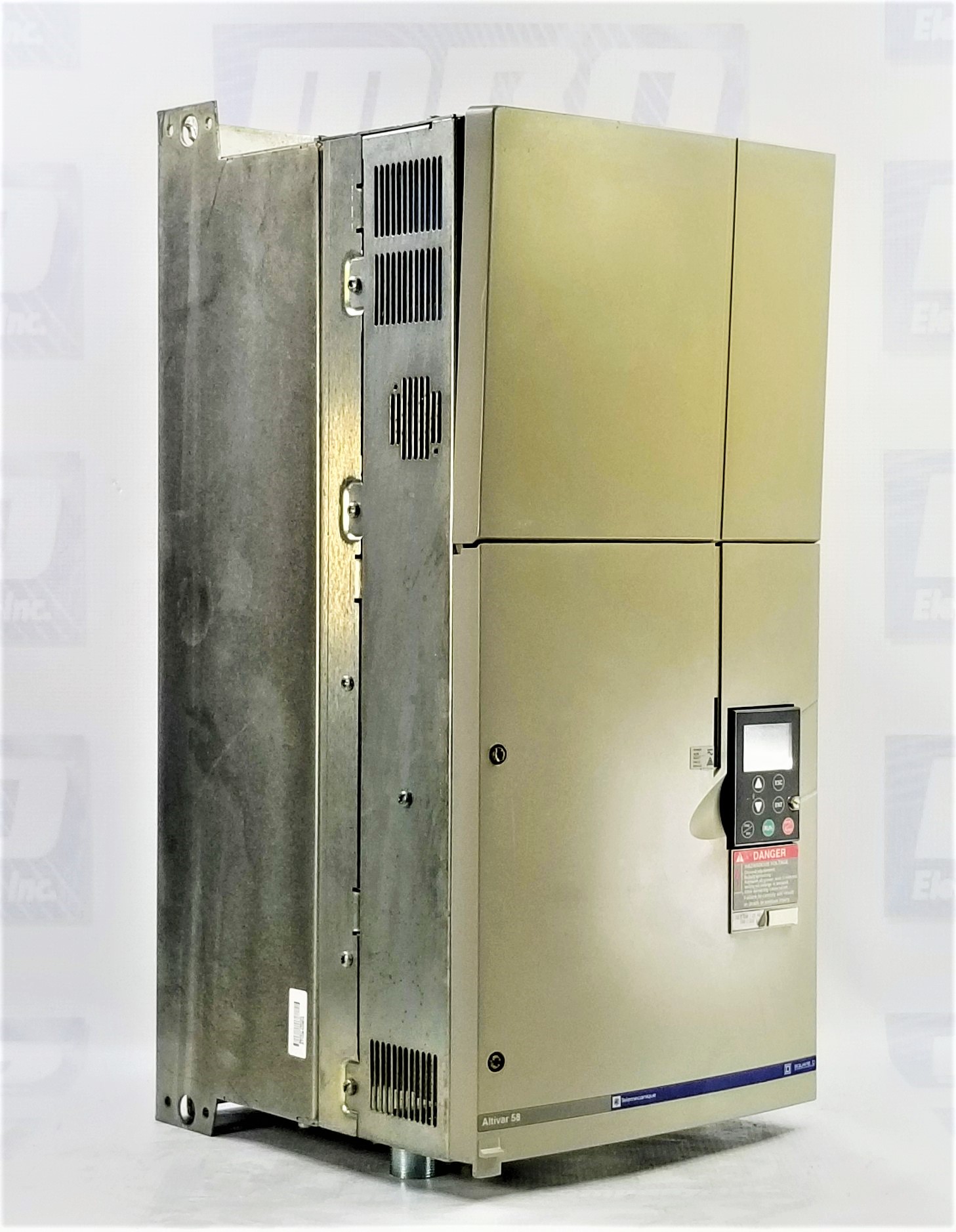

Schneider Electric ATV58HD28N4 AC Drive Overview

The Schneider Electric ATV58HD28N4 is a powerful and highly efficient variable frequency drive (VFD) designed for heavy-duty industrial applications. Belonging to the Altivar 58 family, this AC drive offers superior control over three-phase motors, ensuring precise speed regulation, energy savings, and optimized machine performance. Engineered with advanced motor control algorithms, the ATV58HD28N4 provides reliable torque performance across a wide range of motor speeds and loads, making it ideal for manufacturing, material handling, HVAC, and water treatment industries.

Technical Specifications

The ATV58HD28N4 operates with a three-phase input and three-phase output, catering to industrial-grade motors requiring high power and robust performance. It supports an input voltage range of 400/460 VAC and delivers a substantial output of 18.5 kW (equivalent to 25 horsepower), handling up to 40.7 amps. Designed for rigorous usage, the Altivar 58 drive ensures maximum uptime and consistent operation even in challenging environments. Its compact yet rugged design integrates seamlessly into industrial panels and enclosures, facilitating easier installation and maintenance.

Features and Benefits

This drive has advanced features such as programmable logic control, customizable speed profiles, and automatic motor adaptation, allowing users to optimize their processes without extensive external controls. It also includes built-in protections like thermal overload, overvoltage, undervoltage, and short-circuit protection to safeguard both the drive and the connected motor. The Schneider Electric ATV58HD28N4 enhances operational efficiency by reducing energy consumption and improving the longevity of mechanical components through smoother start-ups and shutdowns.

Warranty and Support

Every Schneider Electric ATV58HD28N4 AC drive sold by MRO Electric and Supply has a 2-year warranty, offering peace of mind and product assurance. MRO Electric’s dedicated support team ensures customers receive technical assistance, warranty coverage, and replacement options swiftly to minimize downtime.

Applications

Due to its high horsepower capacity and robust build, the ATV58HD28N4 is perfect for applications requiring heavy torque and high reliability. It is widely used in conveyor systems, centrifugal pumps, fans, compressors, mixers, and extruders. Its ability to maintain motor efficiency under fluctuating load conditions makes it indispensable for demanding production lines.

Frequently Asked Questions (FAQ)

What is the input and output configuration of the ATV58HD28N4?

The ATV58HD28N4 has a three-phase input and a three-phase output, supporting industrial-grade AC motors.

What is the power rating of this drive?

This model has a power rating of 18.5 kW, equivalent to 25 horsepower.

What voltage range does the ATV58HD28N4 operate on?

It operates within the 400/460 VAC voltage range.

How much current does the ATV58HD28N4 handle?

The drive is rated to handle up to 40.7 amps.

Is there a warranty included when purchasing from MRO Electric?

Yes, MRO Electric offers a 2-year warranty on all purchases of this drive.

Can the ATV58HD28N4 be used in HVAC applications?

It is ideal for HVAC systems, providing reliable speed and torque control for fans and compressors.

What protections are built into the ATV58HD28N4?

The drive protects against thermal overload, overvoltage, undervoltage, and short-circuit events.

Is the drive suitable for new installations and retrofits?

Its flexible configuration makes it suitable for new builds and retrofit projects.

How does the ATV58HD28N4 improve energy efficiency?

It optimizes motor speed and torque, significantly reducing energy consumption compared to traditional motor control methods.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.
