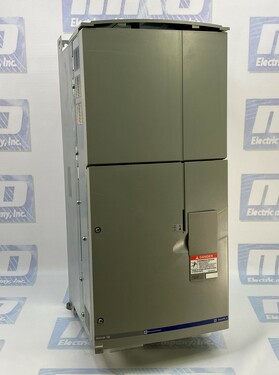

Schneider Electric ATV58HD46N4

Schneider Electric ATV58HD46N4 Adjustable Speed Drive Overview

The Schneider Electric ATV58HD46N4 is an advanced adjustable speed drive from the renowned Altivar 58 series. Designed for demanding industrial motor control applications, this model is engineered to provide precise speed regulation, reliable torque control, and optimized energy efficiency. Rated at 30 kW (approximately 40 HP), the drive can handle significant loads. It is a solid solution for applications such as pumps, conveyors, fans, and machinery used in manufacturing, HVAC, and processing industries. As part of the Altivar 58 range, the ATV58HD46N4 upholds a high standard for performance, flexibility, and user-oriented configuration.

Power and Voltage Specifications

The ATV58HD46N4 operates on a three-phase 380- 480V AC supply, making it compatible with most global power systems. Its robust 30 kW power rating ensures it can easily manage large industrial motors while maintaining smooth acceleration, deceleration, and speed control. Designed with a built-in heat sink, the drive effectively dissipates thermal energy during operation, helping to protect internal components and extend the life of the equipment. The integrated Class A EMC filter also reduces electromagnetic interference, ensuring compatibility with surrounding electronic equipment and adherence to international regulatory standards.

Performance and Control Features

This Altivar 58 model offers advanced vector control and automatic motor adaptation, enabling the drive to maintain constant torque output even under varying load conditions. It supports open-loop and sensorless vector control for flexible performance in various industrial setups. Operators can fine-tune control parameters using the drive's intuitive interface or external configuration tools, tailoring performance to the needs of specific applications. Features like acceleration/deceleration ramps, preset speeds, and fault diagnostics contribute to its intelligent functionality and seamless integration into complex systems.

Durability and Design

Built with industrial durability, the ATV58HD46N4 is designed to withstand harsh environments and demanding workloads. Its robust enclosure protects internal circuitry from dust, vibration, and heat, allowing it to operate reliably in continuous-use applications. The integrated heat sink contributes significantly to temperature management, improving long-term performance while minimizing the need for additional cooling systems. With its EMC filter and noise mitigation capabilities, the drive supports stable operation in environments sensitive to electrical interference.

Availability and Warranty Support

This drive is readily available for immediate shipping from MRO Electric and Supply. It is backed by a comprehensive 2-year warranty, ensuring peace of mind and reliable performance post-installation. MRO's expert support and fast delivery options allow customers to replace or upgrade existing drive systems without unnecessary delays or complications.

Frequently Asked Questions

What is the power rating of the ATV58HD46N4?

It is rated at 30 kW, suitable for motors up to approximately 40 HP.

What voltage range does this drive support?

It operates on a 380- 480V three-phase AC supply.

Does this model include an EMC filter?

It comes with an integrated Class A EMC filter for reduced electromagnetic interference.

Is a heat sink included with this drive?

Yes, the drive features an integrated heat sink for effective thermal management.

What types of motor control does it support?

It supports both open-loop and sensorless vector control.

Can this drive be used with external configuration tools?

Yes, it is compatible with Schneider Electric's configuration software and tools.

Is it suitable for heavy industrial applications?

Its 30 kW capacity and robust build make it ideal for demanding environments.

How is the drive protected from overheating?

The built-in heat sink ensures consistent cooling and extended component life.

What kind of warranty is offered?

A 2-year warranty is included through MRO Electric and Supply.

Is this drive currently in stock?

Yes, it is available immediately with free shipping from MRO Electric.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry Drives from other manufacturers such as Modicon and ABB.
