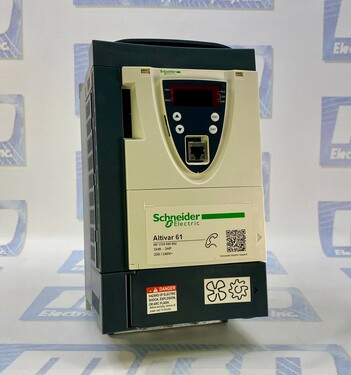

ATV61HU30M3

ATV61HU30M3

Rated 5/5 on 1 review

Rate this product


MANUFACTURER: Schneider Electric
DESCRIPTION: ATV61 3 kW 240V 3 phases
PRODUCT TYPE INFO: Altivar 61


1 in stock

Free Shipping
2 Year warranty
Part NumberATV61HU30M3
ManufacturerSchneider Electric
Model #ATV61HU30M3
TypeDrives
Warranty2 Year
Range of productAltivar 61
2.2 kW, single phase at 200...240 V
3 phases
19.3 A for 200 V 3 phases 3 kW
22.1 A for 240 V single phase 2.2 kW / 3 hp
25.9 A for 200 V single phase 2.2 kW / 3 hp
5.3 kVA at 240 V single phase 2.2 kW / 3 hp
5 kA for single phase
16.4 A for 60 s, 3 phases
12...16 kHz with derating factor
Voltage/frequency ratio - Energy Saving, quadratic U/f
Voltage/frequency ratio, 5 points
Voltage/frequency ratio, 2 points
Modbus
Communication card for BACnet
Communication card for CC-Link
Controller inside programmable card
Communication card for DeviceNet
Communication card for EtherNet/IP
Communication card for Fipio
I/O extension card
Communication card for Interbus-S
Communication card for LonWorks
Communication card for METASYS N2
Communication card for Modbus Plus
Communication card for Modbus TCP
Communication card for Modbus/Uni-Telway
Multi-pump card
Communication card for Profibus DP
Communication card for Profibus DP V1
Product or component typeVariable speed drive
Product specific applicationPumping and ventilation machine
Component nameATV61
Motor power kW3 kW, 3 phases at 200...240 V
Motor power hp3 hp, single phase at 200...240 V
Power supply voltage200...240 V - 15...10 %
Supply number of phasesSingle phase
Line current16.4 A for 240 V 3 phases 3 kW
EMC filterLevel 3 EMC filter
Assembly styleWith heat sink
Apparent power6.8 kVA at 240 V 3 phases 3 kW
Maximum prospective line Isc5 kA for 3 phases
Maximum transient current13.2 A for 60 s, single phase
Nominal switching frequency12 kHz
Switching frequency1...16 kHz adjustable
Asynchronous motor controlFlux vector control without sensor, standard
Synchronous motor control profileVector control without sensor, standard
Communication port protocolCANopen
Type of polarizationNo impedance for Modbus
Option cardCommunication card for APOGEE FLN

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed ATV61HU30M3 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this ATV61HU30M3 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty ATV61HU30M3, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 13lbs

Want it shipped tomorrow?

  • Order within the next 25 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty ATV61HU30M3 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Additional Information

Product Description

The ATV61HU30M3 is a ATV61 3 kW 240V 3 phases that is manufactured by Schneider Electric. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. All of the products come with a 2 year warranty from MRO Electric. We also carry Drives from other manufacturers such as Modicon and ABB.
