ATV61HU75N4

2-year Warranty

Same Day Shipping

Schneider Electric ATV61HU75N4

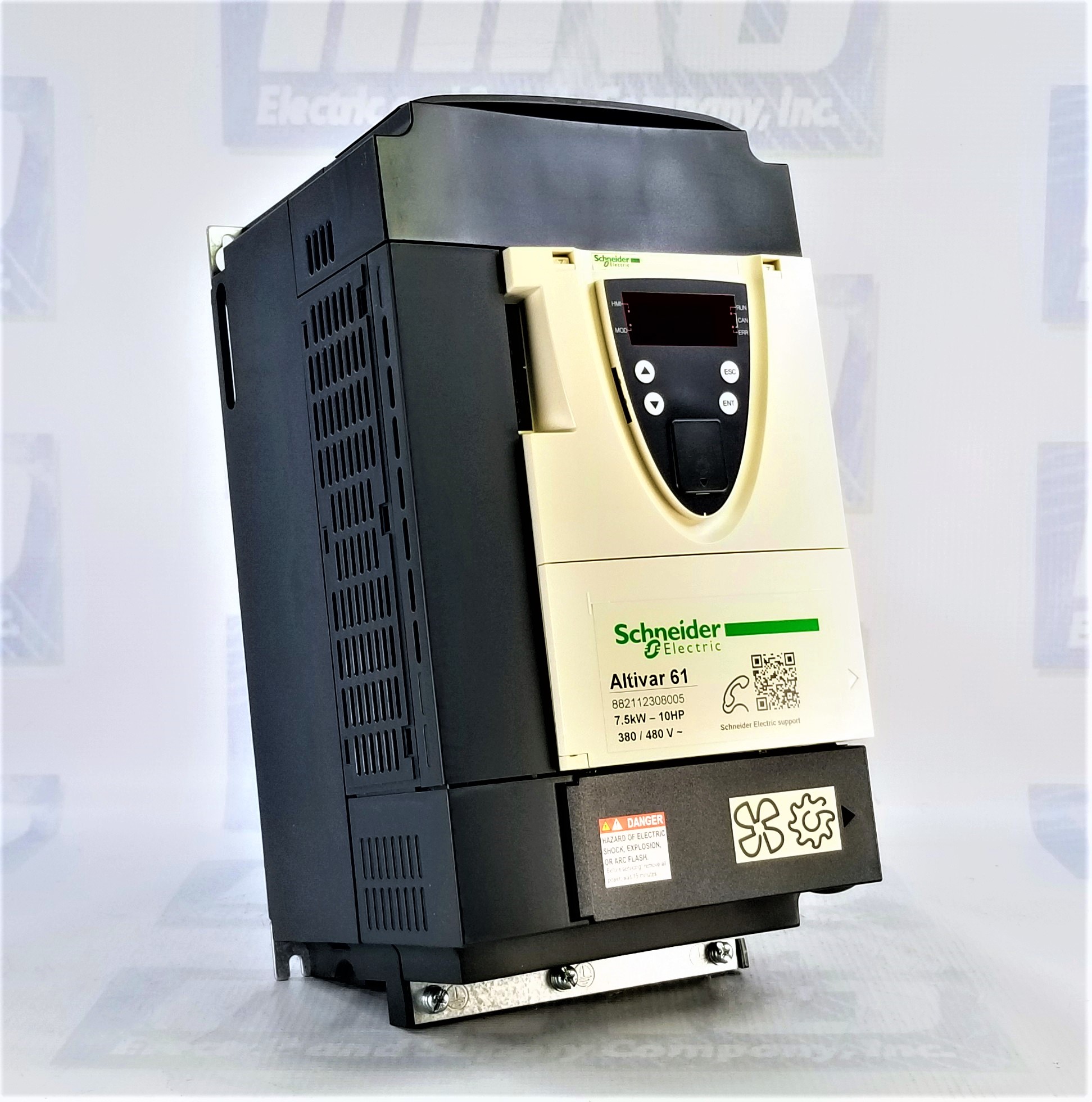

ALTIVAR 61 ATV61 7.5 KW 10 HP 480 V 3-PHASE EMC IP20

5/5
4 ratings

1 Available


Free Shipping

2 Year warranty

Part NumberATV61HU75N4
ManufacturerSchneider Electric
TypeAC Drives
Warranty2 Year
Phase3-Phase
Motor power 7.5 kW 10 hp
Max line currentat 380 V: 27 A at 480 V: 22.2 A
60s Max transient current21.1 A
Current In at 380 V17.6 A
Current In at 460 V14 A
Max. prospective line Isc22 kA
Apparent power18.1 kVA

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed ATV61HU75N4 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this ATV61HU75N4 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty ATV61HU75N4, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 15lbs

Want it shipped today?

  • Order within the next 5 hours and 48 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty ATV61HU75N4 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric ATV61HU75N4 Overview

Schneider Electric ATV71HD15N4 AC Drive - Detailed Description

Overview

The Schneider Electric ATV71HD15N4 is a high-performance variable-speed drive designed to meet the demanding needs of complex, high-power machinery. Part of the renowned Altivar 71 series, this AC drive is engineered to provide advanced motor control for applications requiring precision, reliability, and efficiency. With a motor power capacity of 15 kW (20 hp) and the ability to operate within a wide voltage range, it is a versatile solution for industrial environments that demand robust performance.

Range and Application

Belonging to the Altivar 71 product range, the ATV71HD15N4 is tailored for complex machinery requiring advanced motor control. This drive is well-suited for conveyor systems, pumps, fans, and other high-power equipment applications. Its sophisticated control capabilities, including sensorless flux vector control (SFVC) and flux vector control (FVC) with a sensor, make it ideal for ensuring precise and efficient motor operation in various settings.

Power and Performance

The ATV71HD15N4 is designed to handle significant power loads, with a motor power rating of 15 kW (20 hp) for three-phase systems operating at 380...480 V. It supports a maximum line current of 48 A at 380 V and a nominal output current of 27 A at 460 V, making it capable of driving motors with high torque requirements. The drive also features a power rating of 31.6 kVA at 380 V, ensuring sufficient power for demanding applications.

Control Features

This variable-speed drive is equipped with advanced control features to optimize motor performance. It offers multiple motor control profiles, including sensorless flux vector control (SFVC) and flux vector control (FVC) with a sensor. These control modes enhance the drive's ability to manage motor speed and torque with high precision, even under varying load conditions. Additionally, the ATV71HD15N4 includes an ENA (Energy adaptation) system designed to optimize energy usage, particularly in systems with unbalanced loads.

Flexibility and Adaptability

The ATV71HD15N4 is built with flexibility in mind, offering a wide range of adjustable settings. Its switching frequency can be adjusted between 1 and 16 kHz, allowing for fine-tuning motor control based on specific application needs. The drive also supports various voltage/frequency ratio settings, allowing for the optimization of performance for different motor types and operational requirements.

Durability and Protection

Durability is a crucial feature of the ATV71HD15N4, with an integrated EMC filtering design and a robust heat sink assembly. This ensures reliable operation under harsh industrial conditions, including high temperatures and electrical noise. The drive is also equipped with a maximum transient current capacity of 49.5 A for up to 60 seconds, providing the ability to handle short-term overloads without compromising performance or safety.

Installation and Integration

The ATV71HD15N4 is designed for easy integration into existing systems. Its maximum motor cable length is 50 meters using shielded cable and 100 meters with unshielded cable. It operates with a three-phase power supply and is compatible with networks ranging from 380 V to 480 V. The drive's assembly style includes a heat sink for effective thermal management, ensuring long-term reliability and minimal maintenance requirements.

Warranty and Support

Schneider Electric stands behind the quality and reliability of the ATV71HD15N4 with a 2-year warranty from MRO Electric and Supply, providing customers with peace of mind and assurance of long-term performance. Additionally, the drive is offered with free shipping, making it a cost-effective solution for businesses looking to enhance their motor control systems.

Frequently Asked Questions (FAQ) about Schneider Electric ATV71HD15N4 AC Drive

What is the primary application of the Schneider Electric ATV71HD15N4?

The ATV71HD15N4 is designed for complex, high-power machinery applications. It is ideal for controlling motors in conveyor systems, pumps, fans, and other industrial equipment where precision and reliability are critical.

What motor types can the ATV71HD15N4 control?

This AC drive can control three-phase asynchronous motors, offering advanced control methods such as sensorless flux vector control (SFVC) and flux vector control (FVC) with a sensor.

What is the power rating of the ATV71HD15N4?

The ATV71HD15N4 has a motor power rating of 15 kW (20 hp) when used with three-phase systems at 380...480 V.

What kind of protection does the ATV71HD15N4 offer?

The drive includes an integrated EMC filter and a heat sink assembly, which provide protection against electrical noise and ensure reliable operation in high-temperature environments.

What is the maximum motor cable length supported by this drive?

The ATV71HD15N4 supports a maximum motor cable length of 50 meters with shielded cable and up to 100 meters with unshielded cable.

Can the switching frequency of the drive be adjusted?

Yes, the ATV71HD15N4's switching frequency can be adjusted between 1 kHz and 16 kHz, allowing users to fine-tune the drive's performance based on specific application needs.

What is the nominal output current of the ATV71HD15N4?

The nominal output current is 27 A at 460 V with a three-phase system, providing ample current for powering high-torque motors.

Does the ATV71HD15N4 offer any energy-saving features?

The drive includes an ENA (Energy adaptation) system that optimizes energy usage, which is particularly beneficial in systems with unbalanced loads.

What is the warranty period for the ATV71HD15N4?

The ATV71HD15N4 comes with a 2-year warranty from MRO Electric and Supply, offering peace of mind and assurance of its quality and reliability.

Is there free shipping available for the ATV71HD15N4?

Yes, the ATV71HD15N4 is shipped free when purchased through MRO Electric and Supply, making it a cost-effective solution for your motor control needs.
